3000 VA, 3000 W, 2430 J, Single Phase, Line-interactive, Pure Sine Wave, IEC C13 x 6, IEC C19 x 2
Key Features
- Reliable Power Quality
- Electricity Cost Savings
- Device Protection Design
- Automatic Voltage Regulation (AVR)
- Real-time LCD Readout
Description

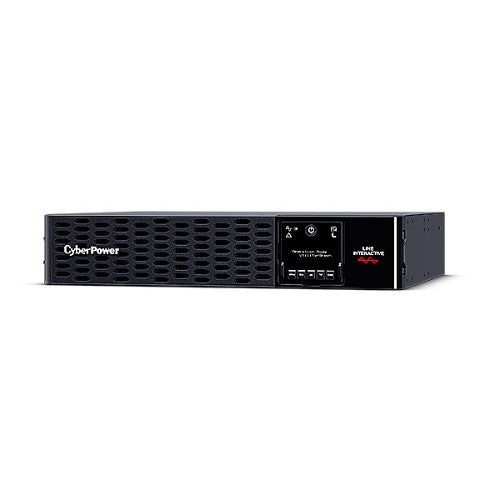

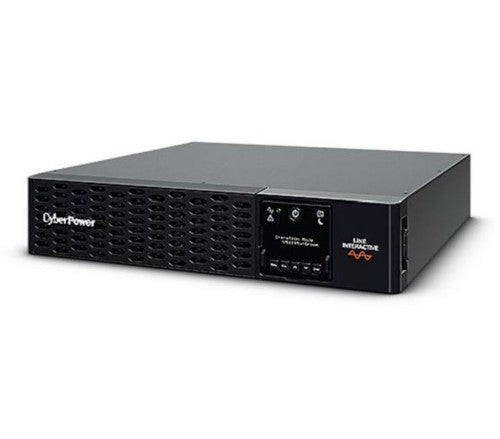

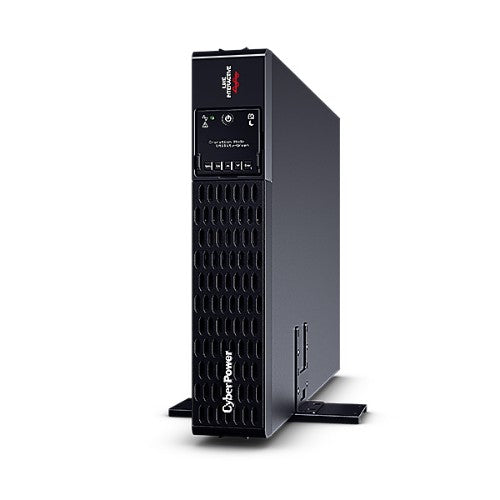

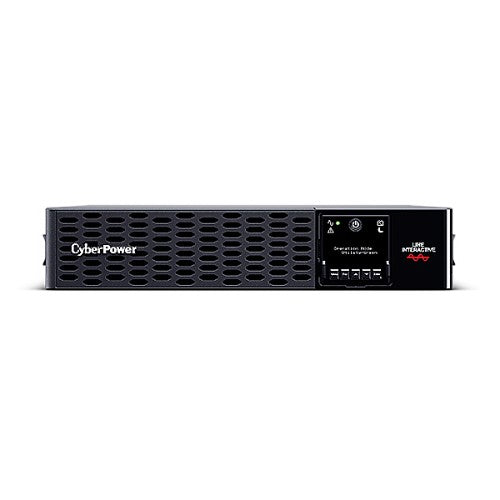

CyberPower PR3000ERTXL2U with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
3 kVA |
| Output power |
3000 W |
| Input operation voltage (min) |
159 V |
| Input operation voltage (max) |
288 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
2430 J |
| Maximum current |
16 A |
| Power factor |
1 |
| Power Factor Correction (PFC) type |
Active |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
2.4 m |
| Socket circuit breaker |
Yes |
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| Cabling technology |
10/100/1000Base-T(X) |

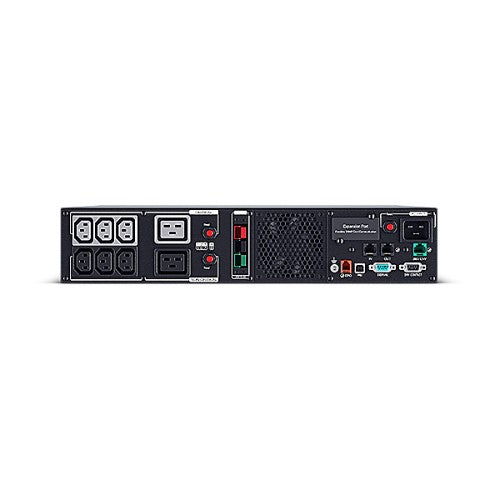

| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| Ethernet LAN (RJ-45) ports |
2 |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Number of input phases |
1 |
| Response time |
4 ms |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Waveform |
Pure sine |
| Power protection features |
Overload, Short circuit |
| Automatic Voltage Regulation (AVR) |
Yes |
| LED indicators |
Error, Operation |
| Audible alarm(s) |
Yes |
| Transfer time (Line Mode to Battery Mode) |
4 ms |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Web-based management |
Yes |
| Management protocols |
SNMP/HTTP |
| Country of origin |
China |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Output power capacity |
3 kVA |
| Number of input phases |
1 |
| Response time |
4 ms |
| Output power |
3000 W |
| Input operation voltage (min) |
159 V |
| Input operation voltage (max) |
288 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
2430 J |
| Maximum current |
16 A |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Waveform |
Pure sine |
| Power protection features |
Overload, Short circuit |
| Power factor |
1 |
| Automatic Voltage Regulation (AVR) |
Yes |
| Audible alarm(s) |
Yes |
| Power Factor Correction (PFC) type |
Active |
| Socket circuit breaker |
Yes |
| Transfer time (Line Mode to Battery Mode) |
4 ms |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
4 |
| Battery recharge time |
3 h |
| Typical backup time at half load |
7.1 min |
| Typical backup time at full load |
1.7 min |
| Hot-swap battery |
Yes |
| Replacement battery cartridge |
RBP0129 |
| Design |
|---|
| Country of origin |
China |
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Certification |
CE , FCC Class A , UL , CISPR 22 Class A , IEC62040-2 , RCM , VCCI , EN 61000-3-2 |
| Cable length |
2.4 m |
| LED indicators |
Error, Operation |
| Housing material |
Metal |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Bypass |
GreenPower UPS |
| Sustainability certificates |
ENERGY STAR |
| Harmonized System (HS) code |
8504408590 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE , FCC Class A , UL , CISPR 22 Class A , IEC62040-2 , RCM , VCCI , EN 61000-3-2 |
| Compliance certificates |
RoHS |
| Management features |
|---|
| Web-based management |
Yes |
| Management protocols |
SNMP/HTTP |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Width |
433 mm |
| Depth |
500 mm |
| Height |
86.5 mm |
| Weight |
32.8 kg |
| Package width |
560 mm |
| Package depth |
620 mm |
| Package height |
275 mm |
| Package weight |
41 kg |
| Package volume |
40800 cm³ |
| Packaging data |
|---|
| Package volume |
40800 cm³ |
| Package width |
560 mm |
| Package depth |
620 mm |
| Package height |
275 mm |
| Package weight |
41 kg |
| Logistics data |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
8504408590 |
| Other features |
|---|
| Bypass |
GreenPower UPS |
