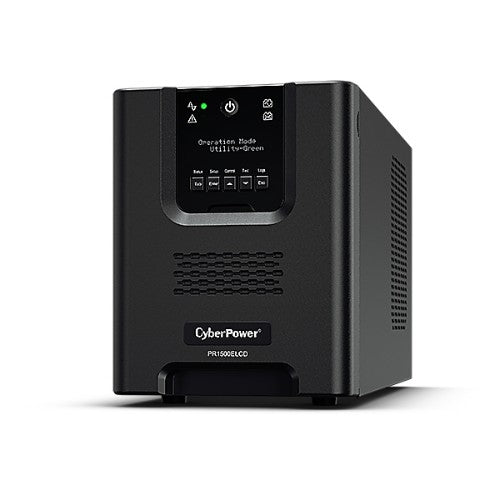

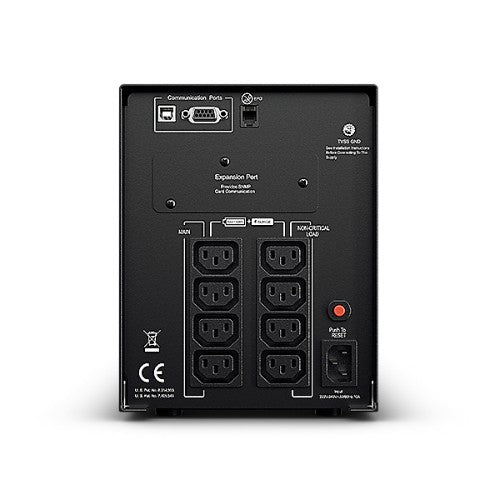

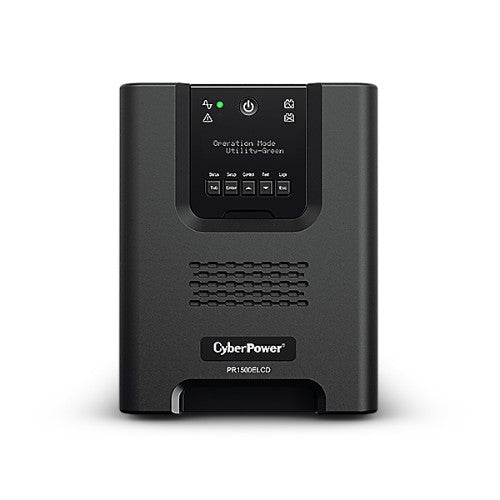

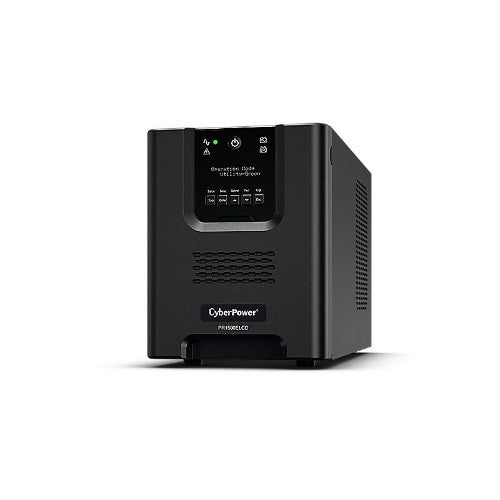

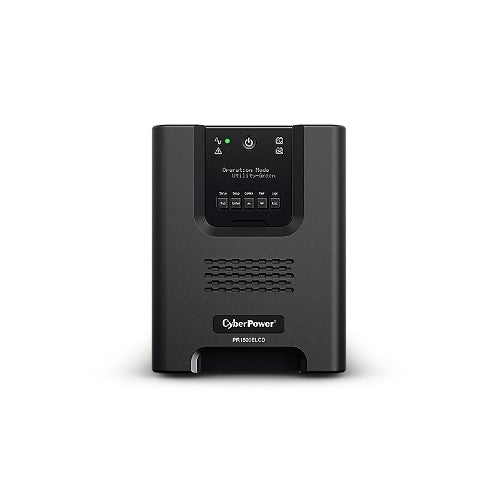

Smart App UPS for Network and Server
Key Features
- Line-interactive UPS Topology
- Active PFC Compatible
- Automatic Voltage Regulation (AVR)
- Critical/Non-critical Load Outlets
- Surge and Spike Protection
- LCD Status Display
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Pure Sine Wave Output
- Overload Protection
- Hot-swappable Batteries
- EMI and RFI Filtration
- USB Connectivity Port
- PowerPanel Management Software
- Tower Form Factor
Description

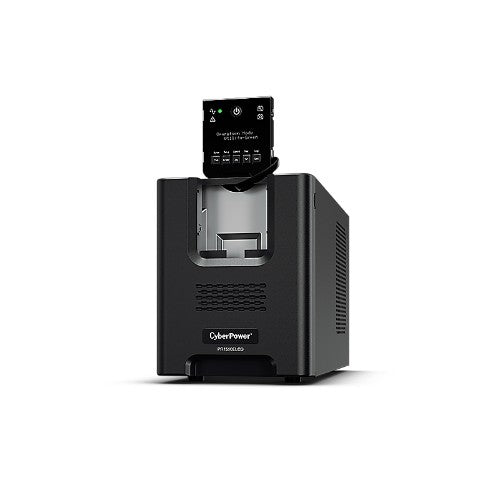

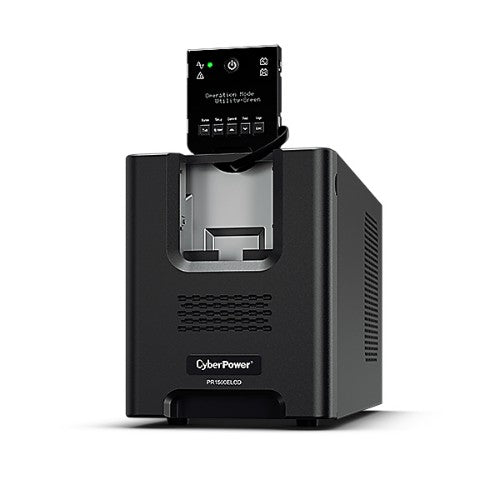

The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipments, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sinewave output and Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. Its detachable, remote-controllable Multifunction LCD Readout can be mounted on the wall or in the control center nearby to provide highest convenience and flexibility under different management scenarios.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel® Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
1.5 kVA |
| Output power |
1350 W |
| Input operation voltage (min) |
151 V |
| Input operation voltage (max) |
301 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Surge energy rating |
405 J |
| Maximum current |
10 A |
| Emergency Power Off (EPO) |
Yes |
| Power factor |
0.9 |
| Input frequency |
50/60 Hz |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Response time |
4 ms |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Waveform |
Pure sine |
| Power protection features |
Overload |
| Automatic Voltage Regulation (AVR) |
Yes |
| LED indicators |
Error, Operation |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Country of origin |
China |
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Output power capacity |
1.5 kVA |
| Response time |
4 ms |
| Output power |
1350 W |
| Input operation voltage (min) |
151 V |
| Input operation voltage (max) |
301 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Surge energy rating |
405 J |
| Maximum current |
10 A |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Pure sine |
| Power protection features |
Overload |
| Power factor |
0.9 |
| Automatic Voltage Regulation (AVR) |
Yes |
| Audible alarm(s) |
Yes |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| Number of output IEC jumpers |
1 |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
1 |
| Battery recharge time |
8 h |
| Typical backup time at half load |
17 min |
| Typical backup time at full load |
5 min |
| Hot-swap battery |
Yes |
| Design |
|---|
| Country of origin |
China |
| Form factor |
Tower |
| Product colour |
Black |
| Certification |
CE, EAC, RCM, RoHS |
| LED indicators |
Error, Operation |
| Housing material |
Metal |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
8504408590 |
| Certificates |
|---|
| Certification |
CE, EAC, RCM, RoHS |
| Packaging content |
|---|
| Cables included |
USB cable |
| Weight & dimensions |
|---|
| Width |
170 mm |
| Depth |
432 mm |
| Height |
221 mm |
| Weight |
25.1 kg |
| Package width |
316 mm |
| Package depth |
579 mm |
| Package height |
360 mm |
| Package weight |
27 kg |
| Packaging data |
|---|
| Cables included |
USB cable |
| Package width |
316 mm |
| Package depth |
579 mm |
| Package height |
360 mm |
| Package weight |
27 kg |
| Logistics data |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
8504408590 |
| Other features |
|---|
| Overload protection |
Yes |
| Compatible operating systems |
Windows 7 / Vista / XP / 2000, Server 2003 / 2008, Linux
|
