1 kVA, 1kW, 151-302V, 50/60Hz, 10A, 2430J, 433x412x86.5mm, 30.4kg, Black
Description

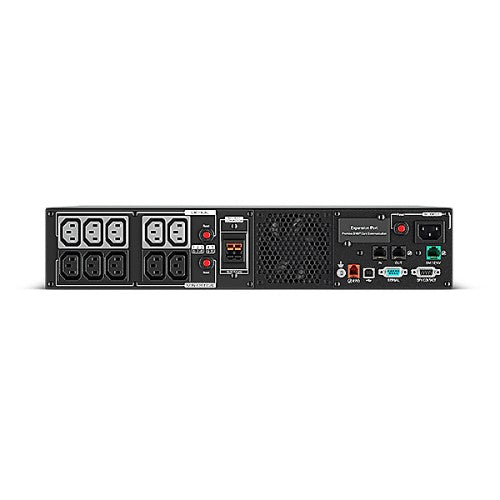

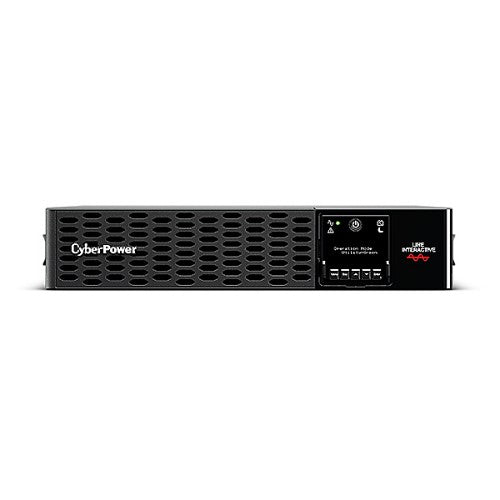

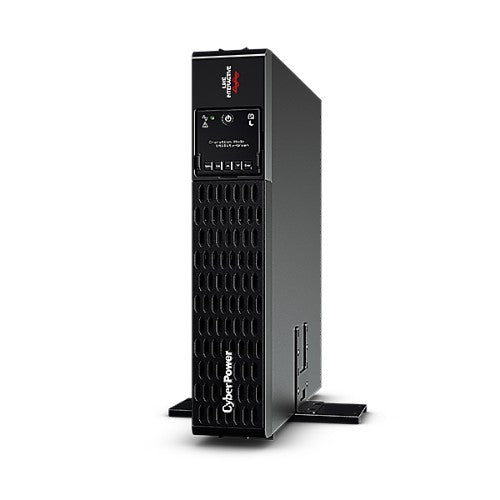

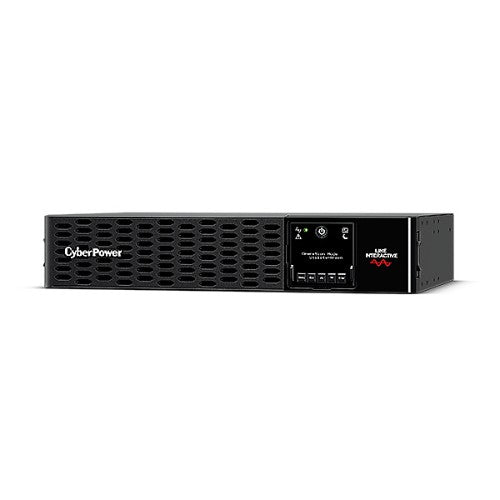

PR1000ERTXL2UCyberPower PR1000ERTXL2U Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment. Multiple UPS systems can be connected to a single main Emergency Power Off (EPO) switch. In the event of an emergency, the UPS systems can be shut down immediately with the EPO button. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
Critical/Noncritical Load OutletsBy dividing the outlets according to the importance of the connected loads, users are offered the flexibility to wisely manage the limited battery power during the event of power outage. In the state of a power failure, the UPS battery power can be preserve by terminating the power provided to the non-critical outlets, sparing the power to allow more runtime for critical loads to perform graceful shutdown.
Heavy-duty Rackmount Rails IncludedThe adjustable rackmount rails are engineered to facilitate the rack mounting of UPS or battery modules and support heavy UPS systems. Installation is quick and easy and required mounting hardware is included.
Sturdy Rackmount Ears IncludedThe rackmount ears are included for flexible rack mounting of UPS or battery modules. For some rack/tower convertible models, the ears also serve as supporting stands to provide stability and keep the unit upright. Installation is quick and easy and required mounting hardware is included.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
1 kVA |
| Output power |
1000 W |
| Input operation voltage (min) |
159 V |
| Input operation voltage (max) |
288 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
2430 J |
| Maximum current |
10 A |
| Emergency Power Off (EPO) |
Yes |
| Output power factor |
1 |
| Power Factor Correction (PFC) type |
Active |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
3.05 m |
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| AC outlets quantity |
10 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| RS-232 ports |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Battery |
|---|
| Battery type |
RBP0128 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
1 |
| Battery recharge time |
3 h |
| Typical backup time at half load |
21.3 min |
| Typical backup time at full load |
7.9 min |
| Hot-swap battery |
Yes |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Response time |
4 ms |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Waveform |
Pure sine |
| Power protection features |
Overload |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
57.5 dB |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Country of origin |
China |
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Output power capacity |
1 kVA |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Response time |
4 ms |
| Output power |
1000 W |
| Input operation voltage (min) |
159 V |
| Input operation voltage (max) |
288 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
2430 J |
| Maximum current |
10 A |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Pure sine |
| Power protection features |
Overload |
| Output power factor |
1 |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
57.5 dB |
| Audible alarm(s) |
Yes |
| Power Factor Correction (PFC) type |
Active |
| Input frequency |
50/60 Hz |
| Heat dissipation |
47.4 BTU/h |
| Design |
|---|
| Country of origin |
China |
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Cable length |
3.05 m |
| Cooling type |
Active |
| LED indicators |
Yes |
| Built-in fan |
Yes |
| Housing material |
Metal |
| Control type |
Buttons |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability compliance |
Yes |
| Harmonized System (HS) code |
8504408590 |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RCM, RoHS, UL, VCCI |
| Cooling |
|---|
| Cooling type |
Active |
| Built-in fan |
Yes |
| Weight & dimensions |
|---|
| Width |
433 mm |
| Depth |
412 mm |
| Height |
86.5 mm |
| Weight |
30.4 kg |
| Package width |
560 mm |
| Package depth |
530 mm |
| Package height |
275 mm |
| Package weight |
30.2 kg |
| Packaging data |
|---|
| Cables included |
Serial |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Package width |
560 mm |
| Package depth |
530 mm |
| Package height |
275 mm |
| Package weight |
30.2 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
8504408590 |
| Other features |
|---|
| Battery type |
RBP0128 |
| Packaging content |
|---|
| Cables included |
Serial |
| Rack mount kit |
Yes |
| Manual |
Yes |
