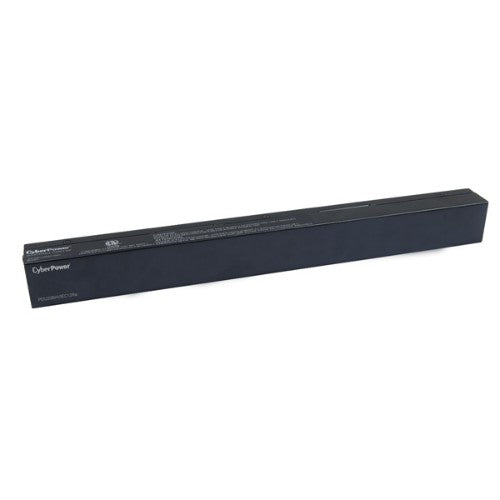

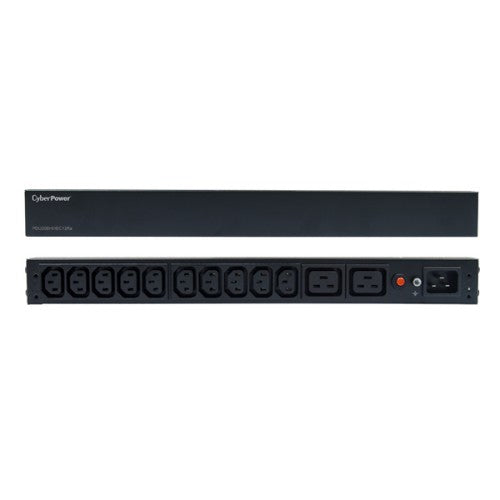

CyberPower PDU20BHVIEC12RA power distribution unit (PDU) 12 AC outlet(s) 1U Black

2 x C19 / 10 x C13, 1U, 200/230V AC, 50/60Hz

Description

The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU20BHVIEC12R) provides 200V/230V 20A output. It distributes power to 12 IEC-320 (2-C19/10-C13) receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

- 12 ICE-320 (2-C19/10-C13) output receptacles
- Single IEC-320 C20 plug
- 20-amp electrical capacity with circuit breaker
- 200/230V - 50/60Hz
- 1U rack mount
- 10-ft. power cord

Specifications

Design
PDU types	Basic
Mounting	Horizontal/Vertical
Product colour	Black
Certification	UL60950_1 ETL, CSA C22.2
Rack capacity	1U
Ports & interfaces
Power plug	C20 coupler
AC outlets quantity	12 AC outlet(s)
Features
Cable length	3.05 m
Certification	UL60950_1 ETL, CSA C22.2
Ergonomics
Cable length	3.05 m
Power
Nominal input voltage	200-230 V
Maximum current	20 A
Nominal output voltage	200-230 V
Power protection features	Overload
AC input frequency	50 - 60 Hz
Certificates
Certification	UL60950_1 ETL, CSA C22.2
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight (imperial)	0.907 kg (2 lbs)
Dimensions (W x D x H) (imperial)	444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75")
Technical details
Compliance certificates	RoHS
