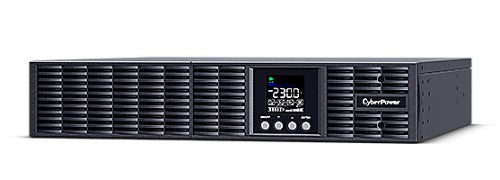

Online Double Conversion, Active PFC, In 190 - 300 Vac / 13 A / IEC C20, Out 3000 VA / 2700 W / Pure Sein Wave / 2x IEC C19, 8x IEC C13, Battery 4.2 min, LCD, Rack, Tower, 438 x 88 x 610 mm, 2U
Key Features
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module Auto-detection
- Critical/Non-critical Load Outlets
- Phone/Fax/Modem/DSL/Network Protection
- Variable Speed Fans
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
- ECO Mode
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- EMI and RFI Filtration
- Color LCD Panel
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
Description
CyberPower OLS3000ERT2UA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
The UPS features color LCD panel for users to monitor power system and configure settings easily. This model can be used with compatible Extended Battery Modules (EBM) to prolong system runtime during power interruption. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users. The product also supports power management software to perform real-time monitoring and remote management.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
3 kVA |
| Output power |
2700 W |
| Input operation voltage (min) |
190 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
388 J |
| Maximum current |
13 A |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output voltage regulation |
1% |
| Output power factor |
0.9 |
| Output frequency regulation |
0.5 Hz |
| Input power factor |
0.99 |
| Charging current |
1.5 A |
| Efficiency (ECO mode) |
95% |
| ECO mode |
Yes |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
1.5 m |
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| AC outlets quantity |
10 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
Type F |
| Serial ports quantity |
1 |
| RS-232 ports |
1 |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB port type |
USB Type-B |
| Network card slot |
Yes |
| Performance |
|---|
| Audible alarm modes |
Battery replacement, Low battery alarm, Overload alarm, Fault, Alarm when on battery |
| UPS topology |
Double-conversion (Online) |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Response time |
0 ms |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Waveform |
Pure sine |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Country of origin |
China |
| Audible alarm modes |
Battery replacement, Low battery alarm, Overload alarm, Fault, Alarm when on battery |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
3 kVA |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Response time |
0 ms |
| Output power |
2700 W |
| Input operation voltage (min) |
190 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
388 J |
| Maximum current |
13 A |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Pure sine |
| Power protection features |
Overload |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output voltage regulation |
1% |
| Output power factor |
0.9 |
| Output frequency regulation |
0.5 Hz |
| Input power factor |
0.99 |
| Audible alarm(s) |
Yes |
| Efficiency (ECO mode) |
95% |
| ECO mode |
Yes |
| Input frequency |
50/60 Hz |
| Heat dissipation |
911 BTU/h |
| Charging current |
1.5 A |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
3 |
| Battery recharge time |
4 h |
| Typical backup time at half load |
13.1 min |
| Typical backup time at full load |
4.2 min |
| Hot-swap battery |
Yes |
| Battery voltage |
72 V |
| Charging current |
1.5 A |
| Replacement battery cartridge |
RBP0158 |
| Design |
|---|
| Country of origin |
China |
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Cable length |
1.5 m |
| Cooling type |
Active |
| Built-in fan |
Yes |
| Housing material |
Metal |
| Control type |
Buttons |
| Display type |
LCD |
| Network card slot |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
-20 - 50% |
| Operating altitude |
0 - 1500 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Compliance certificates |
CE, EAC, RoHS |
| Certificates |
|---|
| Compliance certificates |
CE, EAC, RoHS |
| Packaging content |
|---|
| Cables included |
Input power cable, USB cable |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Batteries included |
Yes |
| Cooling |
|---|
| Cooling type |
Active |
| Built-in fan |
Yes |
| Weight & dimensions |
|---|
| Width |
438 mm |
| Depth |
610 mm |
| Height |
88 mm |
| Weight |
27.2 kg |
| Package width |
540 mm |
| Package depth |
730 mm |
| Package height |
230 mm |
| Package weight |
32 kg |
| Packaging data |
|---|
| Cables included |
Input power cable, USB cable |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Package width |
540 mm |
| Package depth |
730 mm |
| Package height |
230 mm |
| Package weight |
32 kg |
| Logistics data |
|---|
| Country of origin |
China |
