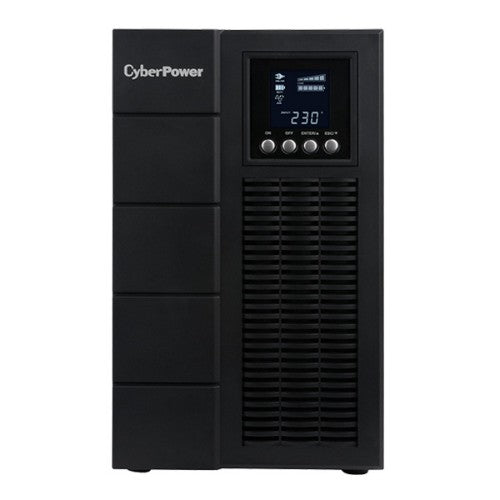

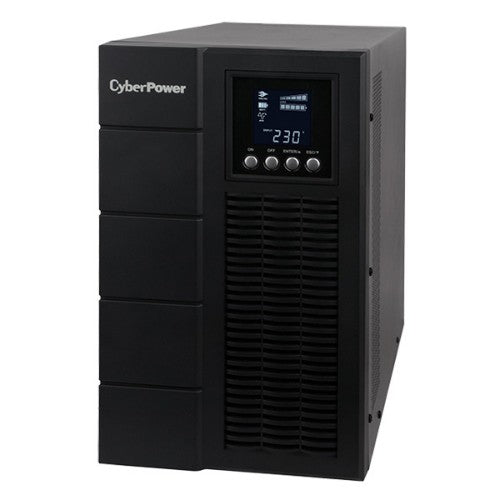

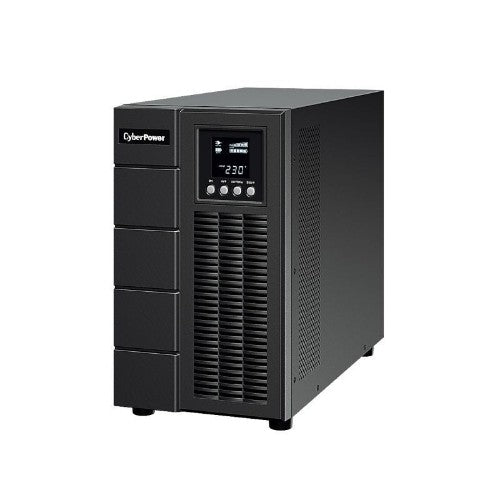

3000VA/2400W, 2+2 x IEC C13, 1 x IEC C19, 1 x RJ11/RJ45 In/Out, 28.2 kg, Black
Description
The Online S Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Features & Benefits:- Pure Sinewave Output
- Online (Double Conversion) UPS Topology
- Tower Form Factor
- EMI, RFI, Surge and Lightning Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- Auto-Restart/Auto-Charge
- Emergency Power Off (EPO) Port
- Multifunction LCD Readout
- USB & Serial Connectivity Port
- Smart Fan Speed Control By Load Level
- Economy Mode setting
- Smart Battery Management(SBM)
- Generator Mode setting
- SNMP/HTTP Remote Management Capability (Optional)
- PowerPanel® Business Edition Software
Specifications
| Power |
|---|
| Output power capacity |
3 kVA |
| Output power |
2400 W |
| Input operation voltage (min) |
120 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
95% |
| Emergency Power Off (EPO) |
Yes |
| Input frequency |
40/70 Hz |
| Performance |
|---|
| Audible alarm modes |
Battery replacement |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Waveform |
Sine |
| Power protection features |
Short circuit |
| Auto-restart |
Yes |
| LED indicators |
Battery replacement |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Audible alarm modes |
Battery replacement |
| Output power capacity |
3 kVA |
| Output power |
2400 W |
| Input operation voltage (min) |
120 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
95% |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Sine |
| Power protection features |
Short circuit |
| Auto-restart |
Yes |
| Audible alarm(s) |
Yes |
| Input frequency |
40/70 Hz |

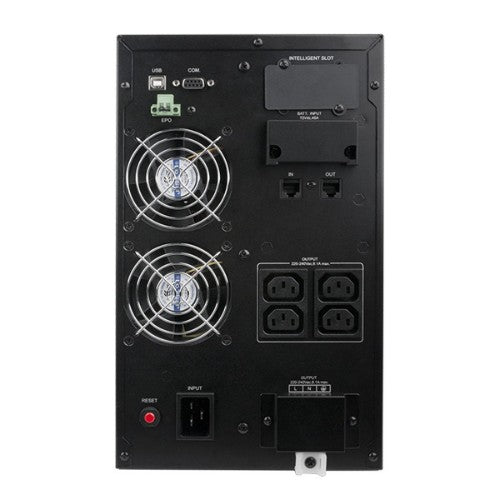

| Ports & interfaces |
|---|
| AC outlets quantity |
5 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
3 |
| Battery recharge time |
5 h |
| Typical backup time at half load |
14 min |
| Typical backup time at full load |
5 min |
| Cold start |
Yes |
| Battery voltage |
12 V |
| Battery capacity |
8.5 Ah |
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Mini Tower |
| Product colour |
Black |
| Cooling type |
Active |
| LED indicators |
Battery replacement |
| Built-in fan |
Yes |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Cooling |
|---|
| Cooling type |
Active |
| Built-in fan |
Yes |
| Weight & dimensions |
|---|
| Width |
196 mm |
| Depth |
416 mm |
| Height |
337 mm |
| Weight |
28.2 kg |
| Packaging data |
|---|
| Bundled software |
PowerPanel BE |
| Packaging content |
|---|
| Bundled software |
PowerPanel BE |
