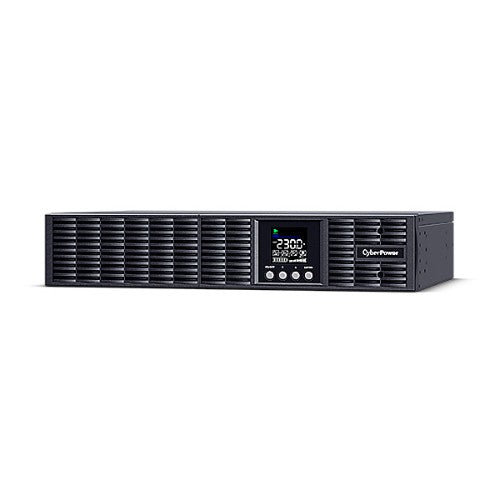

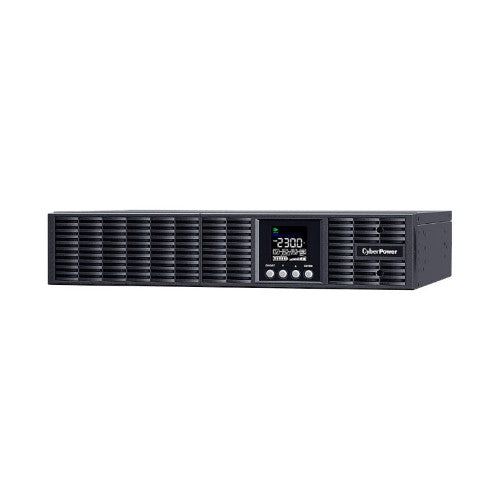

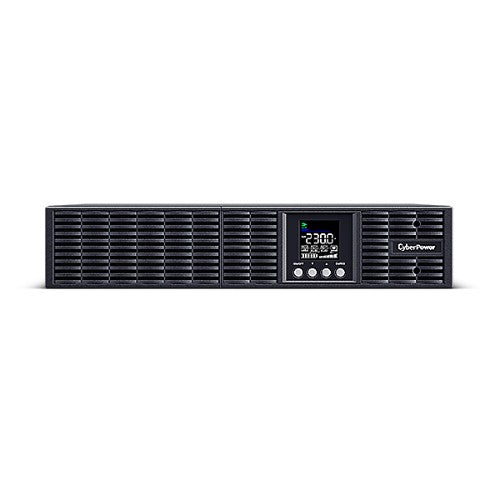

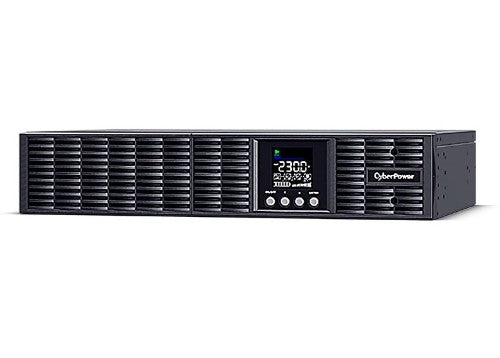

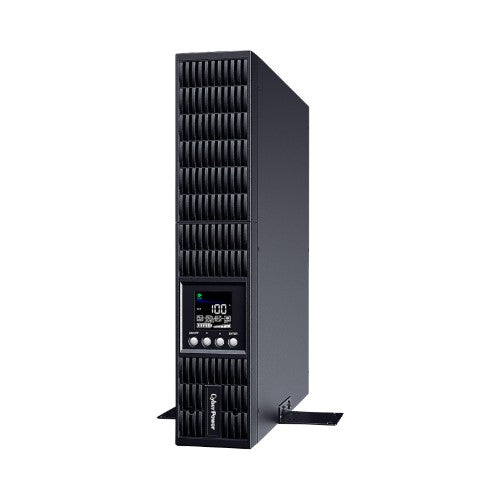

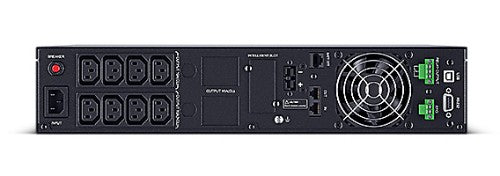

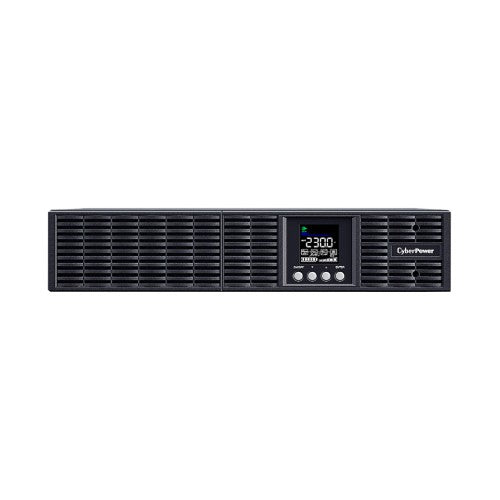

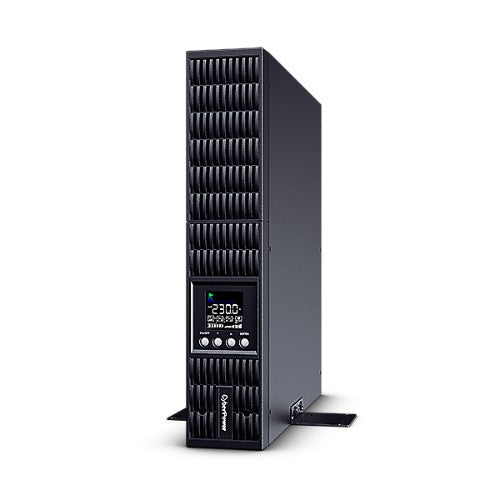

Online, 2000 VA, 1800 W, Sine Wave, IEC C13 x 8, 12 V, 9 Ah, 2U
Key Features
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module Auto-detection
- Critical/Non-critical Load Outlets
- Phone/Fax/Modem/DSL/Network Protection
- Variable Speed Fans
- PowerPanel® Management Software
- Rack/Tower Convertible Configurations
Description
CyberPower OLS2000ERT2UA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
The UPS features color LCD panel for users to monitor power system and configure settings easily, and relay-type dry contact to perform local management. This model is designed with extended battery module auto-detection, which can automatically detect the quantity of connected Extended Battery Modules (EBM) to estimate UPS's runtime. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
2 kVA |
| Output power |
1800 W |
| Input operation voltage (min) |
190 V |
| Input operation voltage (max) |
300 V |
| Surge energy rating |
363 J |
| Maximum current |
9 A |
| Power factor |
0.9 |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Input power factor |
0.99 |
| Crest factor |
3:1 |
| Charging current |
1.5 A |
| Efficiency (ECO mode) |
95% |
| ECO mode |
Yes |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
1.5 m |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Audible alarm modes |
Fault, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Response time |
0 ms |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Waveform |
Pure sine |
| Power protection features |
Overload |
| Noise level |
45 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Country of origin |
China |
| Audible alarm modes |
Fault, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
2 kVA |
| Response time |
0 ms |
| Output power |
1800 W |
| Input operation voltage (min) |
190 V |
| Input operation voltage (max) |
300 V |
| Surge energy rating |
363 J |
| Maximum current |
9 A |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Waveform |
Pure sine |
| Power protection features |
Overload |
| Power factor |
0.9 |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Input power factor |
0.99 |
| Crest factor |
3:1 |
| Noise level |
45 dB |
| Audible alarm(s) |
Yes |
| Efficiency (ECO mode) |
95% |
| ECO mode |
Yes |
| Input frequency |
50/60 Hz |
| Charging current |
1.5 A |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
4 |
| Typical backup time at half load |
13.1 min |
| Typical backup time at full load |
3.8 min |
| Hot-swap battery |
Yes |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Charging current |
1.5 A |
| Design |
|---|
| Country of origin |
China |
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Certification |
CE, EAC, RoHS |
| Cable length |
1.5 m |
| Housing material |
Metal |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating altitude |
0 - 1500 m |
| Non-operating altitude |
0 - 1500 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
8504408590 |
| Certificates |
|---|
| Certification |
CE, EAC, RoHS |
| Packaging content |
|---|
| Cables included |
USB cable |
| Weight & dimensions |
|---|
| Width |
438 mm |
| Depth |
430 mm |
| Height |
88 mm |
| Weight |
17.1 kg |
| Package width |
540 mm |
| Package depth |
550 mm |
| Package height |
230 mm |
| Package weight |
21.9 kg |
| Packaging data |
|---|
| Cables included |
USB cable |
| Package width |
540 mm |
| Package depth |
550 mm |
| Package height |
230 mm |
| Package weight |
21.9 kg |
| Logistics data |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
8504408590 |
