On-line, RJ-11/RJ-45, RS232, USB, EPO, 12V/9AH, 15.3kg
Description

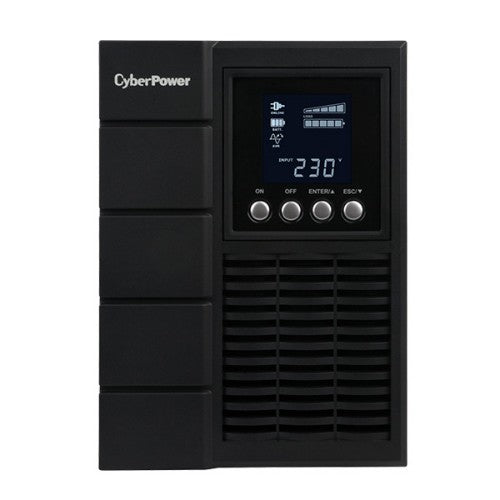

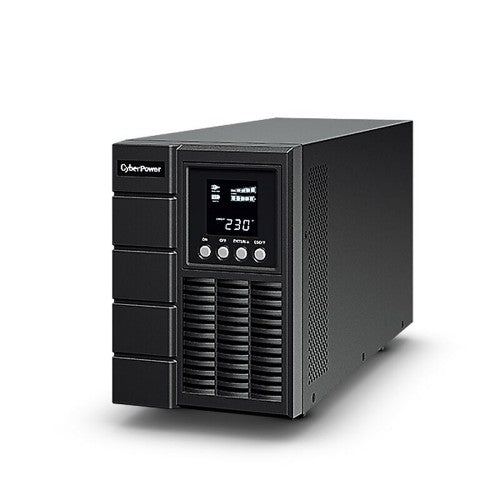

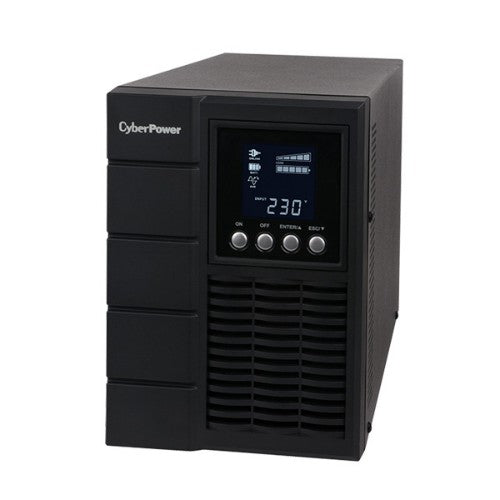

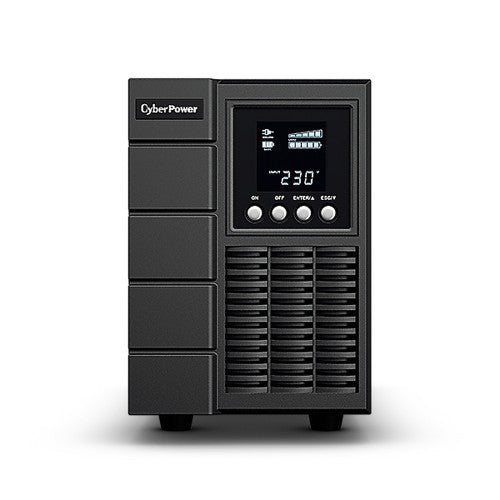

OLS1500EThe Online S Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sine Ware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sine Wave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Features & Benefits:- Pure Sinewave Output;
- Online (Double Conversion) UPS Topology;
- Tower Form Factor;
- EMI, RFI, Surge and Lightning Spike Protection;
- Phone/Fax/Modem/DSL/Network Protection;
- Auto-Restart/Auto-Charge;
- Emergency Power Off (EPO) Port;
- Multifunction LCD Readout;
- USB & Serial Connectivity Port;
- Smart Fan Speed Control By Load Level;
- Economy Mode setting;
- Smart Battery Management(SBM);
- Generator Mode setting;
- PowerPanel® Business Edition Software;
- Equipment Protection Policy up to 100,000 Euros.
Specifications
| Power |
|---|
| Output power capacity |
1.5 kVA |
| Output power |
1200 W |
| Input operation voltage (min) |
120 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
95% |
| Emergency Power Off (EPO) |
Yes |
| Input frequency |
40/70 Hz |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Waveform |
Sine |
| Power protection features |
Overload |
| Auto-restart |
Yes |
| LED indicators |
Yes |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
1.5 kVA |
| Output power |
1200 W |
| Input operation voltage (min) |
120 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
95% |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Sine |
| Power protection features |
Overload |
| Auto-restart |
Yes |
| Input frequency |
40/70 Hz |

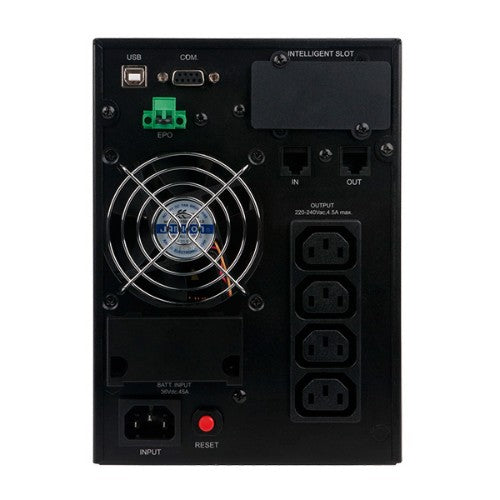

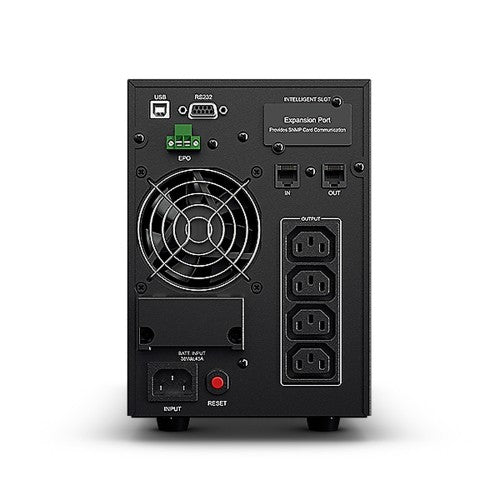

| Ports & interfaces |
|---|
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
5 h |
| Typical backup time at half load |
14 min |
| Typical backup time at full load |
5 min |
| Cold start |
Yes |
| Battery voltage |
12 V |
| Battery capacity |
9000 Ah |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| Cooling type |
Active |
| LED indicators |
Yes |
| Display type |
LCD |
| Cooling |
|---|
| Cooling type |
Active |
| Weight & dimensions |
|---|
| Width |
151 mm |
| Depth |
225 mm |
| Height |
394 mm |
| Weight |
15.3 kg |
| Packaging data |
|---|
| Bundled software |
PowerPanel Business Edition |
| Packaging content |
|---|
| Bundled software |
PowerPanel Business Edition |
