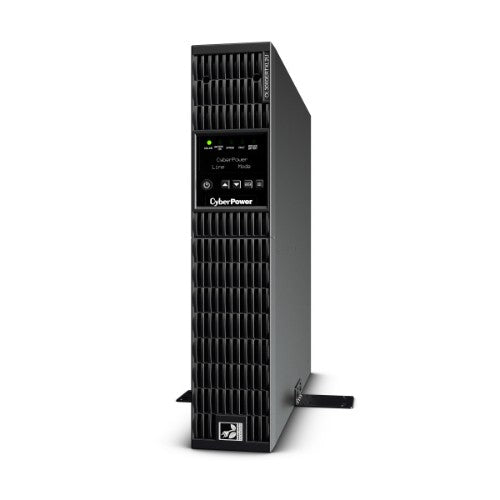

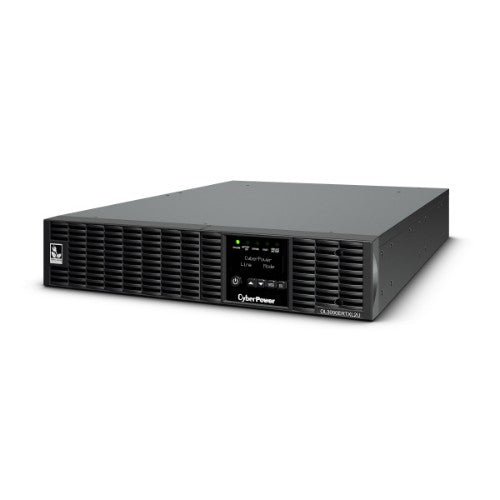

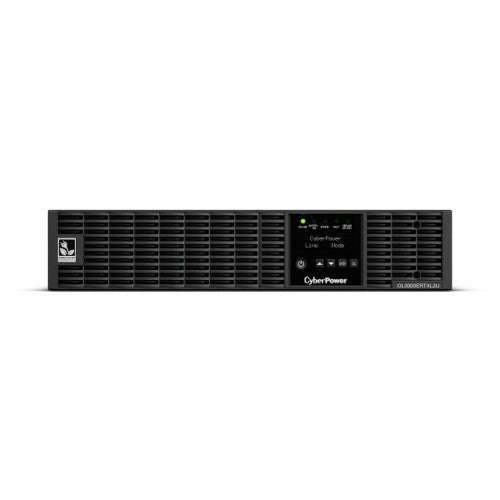

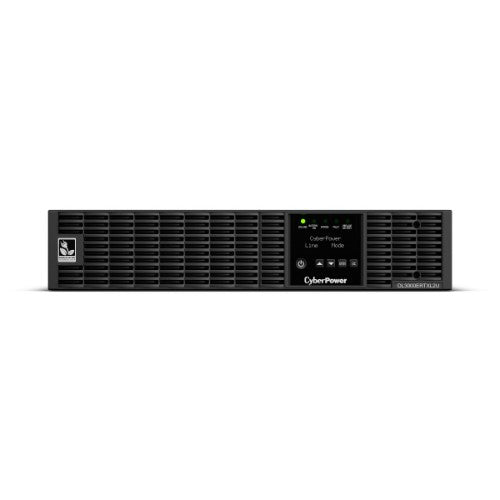

Smart App UPS for Network and Server
Key Features
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Critical/Non-critical Load Outlets
- Smart Battery Management (SBM)
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- Emergency Power Off (EPO) Port
- Rack/Tower Convertible Configurations
- ECO Mode
- Overload Protection
- Zero Transfer Time
- Hot-swappable Batteries
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- Detachable LCD Panel
- SNMP/HTTP Remote Management Capability (Optional)
Description
The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
3 kVA |
| Output power |
2700 W |
| Input operation voltage (min) |
190 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
1335 J |
| Maximum current |
15 A |
| Emergency Power Off (EPO) |
Yes |
| Output power factor |
0.9 |
| Total Harmonic Distortion (THD) (linear load) |
3% |
| Total Harmonic Distortion (THD) (non-linear load) |
5% |
| Input frequency |
40/70 Hz |
| Battery |
|---|
| Battery type |
RBP0076 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
5 h |
| Typical backup time at half load |
11 min |
| Typical backup time at full load |
3 min |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Performance |
|---|
| Audible alarm modes |
Battery replacement |
| UPS topology |
Double-conversion (Online) |
| Response time |
0 ms |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Waveform |
Pure sine |
| Power protection features |
Overload, Short circuit |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Country of origin |
China |
| Audible alarm modes |
Battery replacement |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
3 kVA |
| Response time |
0 ms |
| Output power |
2700 W |
| Input operation voltage (min) |
190 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
1335 J |
| Maximum current |
15 A |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Pure sine |
| Power protection features |
Overload, Short circuit |
| Output power factor |
0.9 |
| Audible alarm(s) |
Yes |
| Total Harmonic Distortion (THD) (linear load) |
3% |
| Total Harmonic Distortion (THD) (non-linear load) |
5% |
| Input frequency |
40/70 Hz |
| Heat dissipation |
1139 BTU/h |

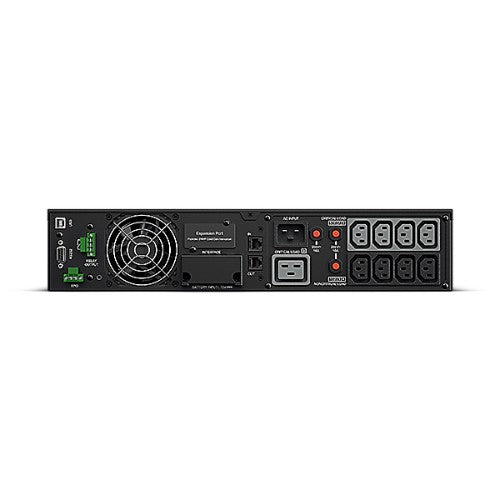

| Ports & interfaces |
|---|
| Emergency Power Off (EPO) connector |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| AC outlets quantity |
9 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| RS-232 ports |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
|---|
| Country of origin |
China |
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Cooling type |
Active |
| LED indicators |
Yes |
| Built-in fan |
Yes |
| Housing material |
Metal |
| Control type |
Buttons |
| Display type |
LCD + LED |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 45 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability compliance |
Yes |
| Harmonized System (HS) code |
8504408590 |
| Warranty period |
3 year(s) |
| Compliance certificates |
BSMI, RCM, RoHS |
| Certificates |
|---|
| Compliance certificates |
BSMI, RCM, RoHS |
| Packaging content |
|---|
| Cables included |
Serial, USB cable |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Bundled software |
PowerPanel® Business Edition |
| Cooling |
|---|
| Cooling type |
Active |
| Built-in fan |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Width |
433 mm |
| Depth |
600 mm |
| Height |
88 mm |
| Weight |
32 kg |
| Package width |
565 mm |
| Package depth |
880 mm |
| Package height |
240 mm |
| Package weight |
39.5 kg |
| Packaging data |
|---|
| Cables included |
Serial, USB cable |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Bundled software |
PowerPanel® Business Edition |
| Package width |
565 mm |
| Package depth |
880 mm |
| Package height |
240 mm |
| Package weight |
39.5 kg |
| Logistics data |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
8504408590 |
| Warranty period |
3 year(s) |
| Other features |
|---|
| Battery type |
RBP0076 |
| Overload protection |
Yes |
| Compatible operating systems |
Windows 7 / Vista / XP / 2000, Server 2008 / 2003, Linux |
