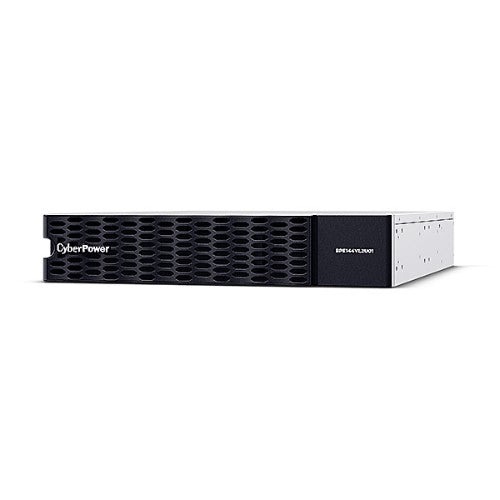

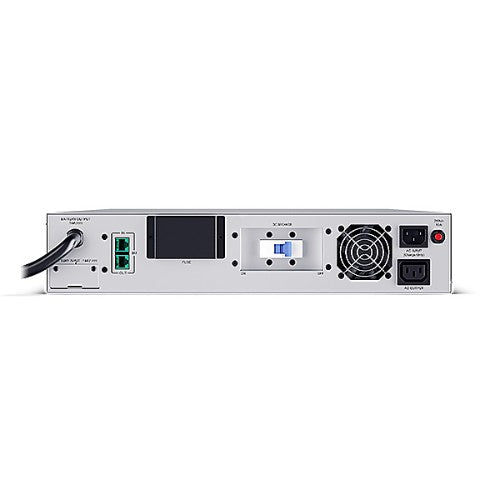

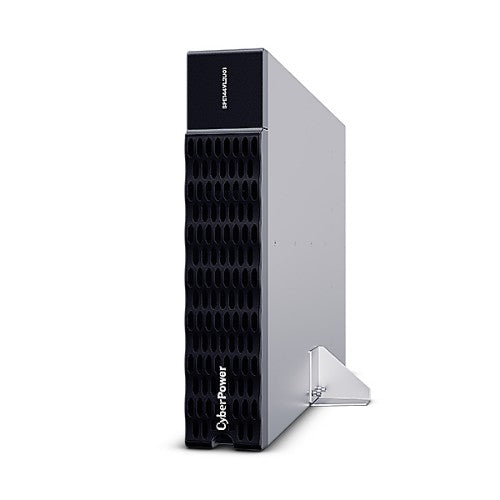

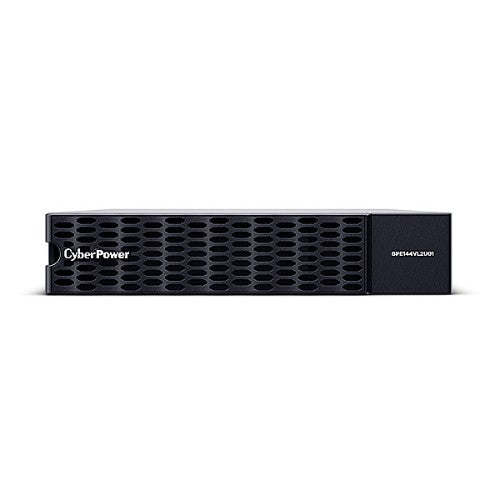

CyberPower BPE144VL2U01 UPS battery cabinet Rackmount/Tower

55A, Built-in Charger, Metal, Rack-Tower, RoHS, 12V, 144 Vdc

Key Features

• Rack/Tower Convertible Configurations
• Sealed Lead-acid Batteries
• Built-in charger for Extended Battery Module (EBM)
• Hot-swappable Batteries
• EBM Expansion Capability
• Metal Housing

Description

CyberPower BPE144VL2U01 is an Extended Battery Module (EBM) which can be used in conjunction with compatible UPS systems to provide prolonged system runtime during power interruption. The battery module comes with DC plug-and-play power connectors to allow for adding multiple EBMs. With the built-in charger design, the EBMs can charge directly from utility without resorting to UPS, significantly saving total charging time when charging multiple EBMs.

The product features hot-swappable battery packs, allowing users to safely replace battery module without interrupting connected loads. The sealed lead-acid battery used within the EBM is stable and safe, which ensures the power system's reliable performance. Designed with industrial-grade metal enclosure, the product is suitable for data center and critical applications.

Specifications

Design
Form factor	Rackmount/Tower
Rack mounting	Yes
Product colour	Silver
Housing material	Metal
Compatible products	OL5KERTHD, OL6KERTHD
Rack capacity	2U
Brand compatibility	CyberPower
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	12
Battery capacity	9 Ah
Battery voltage	12 V
Hot-swap battery	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Width	433 mm
Depth	720 mm
Height	86.5 mm
Weight	44 kg
Package width	600 mm
Package depth	1100 mm
Package height	335 mm
Package weight	53.1 kg
Packaging content
Rack mount kit	Yes
Technical details
Sustainability compliance	Yes
Sustainability certificates	BSMI, CE, EAC, RCM, RoHS
Compliance certificates	BSMI, CE, EAC, RCM, RoHS
