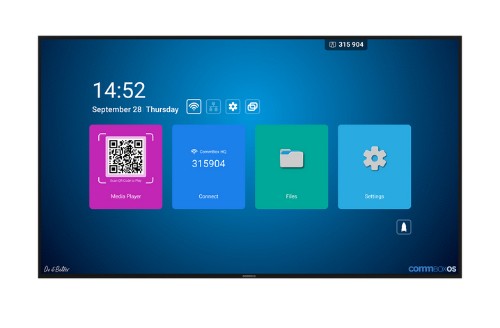

COMMBOX CBDI0243 Signage Display Digital signage flat panel 2.18 m (86") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black 24/7

COMMBOX

COMMBOX CBDI0243 Signage Display Digital signage flat panel 2.18 m (86") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black 24/7

Read reviews
SKU: CBDI0243
Your price $1,181.40
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

Intelligent Display Gen 2, 43" 4K UHD, 500 cd/m2, 4000:1, 60 Hz

Description

CommBox Intelligent Display Gen 2 is a premium 4K commercial display built for organisations that need visibility, simple control and reliable performance at scale.​

With built-in LAN control, simple signage included and consistent brightness across all sizes, Gen 2 makes it easier to deploy, manage and standardise displays across your environment.

Specifications

Display
LED backlight Yes
Display number of colours 1.07 billion colours
Display diagonal 2.18 m (86")
Display resolution 3840 x 2160 pixels
Display brightness 500 cd/m²
HD type 4K Ultra HD
Response time 6.5 ms
Contrast ratio (typical) 4000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Active display area (W x H) 941.18 x 529.41 mm
Panel life 50000 h
Native aspect ratio 16:9
LED backlighting type Direct-LED
Display technology LCD
Anti-glare screen Yes
Native refresh rate 60 Hz
Ports & interfaces
Ethernet LAN Yes
HDMI ports quantity 4
USB port Yes
DVI port No
Ethernet LAN (RJ-45) ports 2
RS-232 interface Yes
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi Yes
USB version 2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity 1
Number of speaker outputs 1
Microphone in Yes
DisplayPorts quantity 0
HDMI input ports quantity 3
HDMI output ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB Power Delivery (USB PD) Yes
USB Power Delivery up to 65 W
Audio
Number of built-in speakers 2
RMS rated power 32 W
Built-in speaker(s) Yes
Design
Product design Digital signage flat panel
Product colour Black
Placement supported Indoor
Orientation Horizontal/Vertical
Panel mounting interface 200 x 200 mm
Bezel width (top) 9.9 mm
Bezel width (side) 9.9 mm
Bezel width (bottom) 9.9 mm
VESA mounting Yes
Anti-glare screen Yes
Bezel colour Black
Performance
Purpose Universal
Operating hours (hours/days) 24/7
Panel life 50000 h
Wi-Fi Yes
Power
Power consumption (typical) 45 W
Power consumption (standby) 0.5 W
Power consumption (max) 222 W
Input voltage 240 V
Computer system
Built-in processor No
Weight & dimensions
Display width 964.6 mm
Display depth 62 mm
Display height 552.5 mm
Display weight 9.42 kg
Packaging data
Package width 1506 mm
Package depth 156 mm
Package height 647 mm
Package weight 13 kg
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 10 - 90%
Technical details
VESA mounting Yes
LED backlighting type Direct-LED
Network
Ethernet LAN Yes
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi Yes
Other features
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi Yes
Power consumption (max) 222 W
Microphone in Yes
Display technology LCD
Bezel width (top) 9.9 mm
Bezel width (side) 9.9 mm
Bezel width (bottom) 9.9 mm
Input voltage 240 V
Brand
COMMBOX
SKU
CBDI0243
