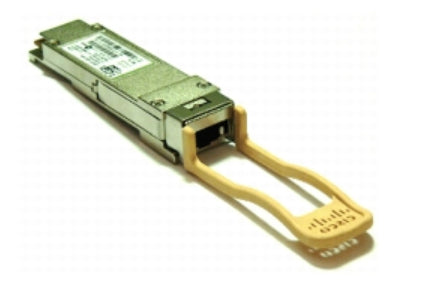

Cisco QSFP-40G-SR-BD= network transceiver module Fiber optic 40000 Mbit/s 850 nm

Cisco

Cisco QSFP-40G-SR-BD= network transceiver module Fiber optic 40000 Mbit/s 850 nm

Read reviews
SKU: QSFP-40G-SR-BD=
Your price $1,372.80
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

40G QSFP Bi-Directional transceiver module, Duplex Multi-mode Fiber, LC Duplex connector, 100m reach with OM3 fiber

Description

The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.

Features and Benefits of Cisco QSFP Modules

- Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Flexibility of interface choice (for different reach requirements and fiber types)
- Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
- Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability
- High-speed electrical interface compliant to IEEE 802.3ba
- QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)

Specifications

Network
SFP transceiver type Fiber optic
Interface type QSFP
Maximum data transfer rate 40000 Mbit/s
Fiber optic connector LC
Networking standards IEEE 802.3ba
Performance
Hot-Plug support Yes
SFP transceiver type Fiber optic
Interface type QSFP
Maximum data transfer rate 40000 Mbit/s
Fiber optic connector LC
Networking standards IEEE 802.3ba
Auto MDI/MDI-X Yes
Maximum transfer distance 150 m
Wavelength 850 nm
Multi-mode fiber (MMF) supported Yes
SFP transceiver standard BX, SR
Harmonized System (HS) code 85369010
Features
Hot-Plug support Yes
Certification MSA
Power
Power consumption (typical) 3.5 W
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 10 - 80%
Storage relative humidity (H-H) 10 - 85%
Technical details
Harmonized System (HS) code 85369010
Certificates
Certification MSA
Logistics data
Harmonized System (HS) code 85369010
Quantity per pack 1 pc(s)
Brand
Cisco
SKU
QSFP-40G-SR-BD=
