MGBSX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-SX Mini-GBIC (MGBSX1)
Key Features
- ADDS FIBER: Optic connectivity to Cisco 100 to 500 Series switches
- CONNECTIVITY: 1000BASE-SX SFP transceiver for multimode fiber, 850 nm wavelength, supports up to 500 m
- DURABLE AND LOW POWER CONSUMPTION: Less power usage and heat-conducting increases the life of the product
- EASY TO USE: Easy installation, plug and play, fully hot-swapple
- PEACE OF MIND: 5-year warranty and one-year technical support
Description

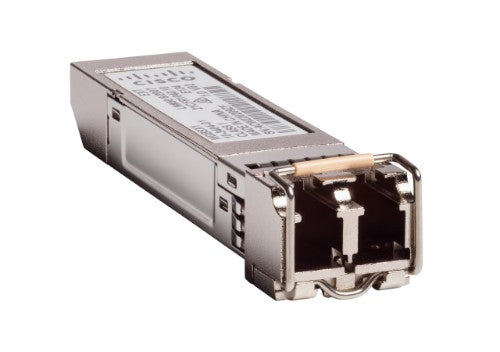

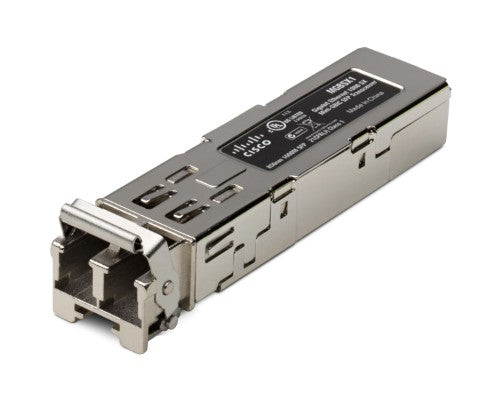

The Cisco MGBSX1 Transceiver MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) is an easy-to-install module that provides a simple way to add fiber connectivity to Cisco 100, 200, 300, and 500 Series switches.
The MGBSX1 transceiver is available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 500 meters.
Specifications
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Performance |
|---|
| Wavelength |
850 nm |
| Maximum transfer distance |
550 m |
| Design |
|---|
| Country of origin |
China |
| Weight & dimensions |
|---|
| Width |
56.5 mm |
| Depth |
13.4 mm |
| Height |
8.5 mm |
| Weight |
20 g |
| Package width |
81.3 mm |
| Package depth |
127 mm |
| Package height |
25.4 mm |
| Package weight |
50 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Storage relative humidity (H-H) |
5 - 90% |
| Packaging data |
|---|
| Package width |
81.3 mm |
| Package depth |
127 mm |
| Package height |
25.4 mm |
| Package weight |
50 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Fiber type |
MMF |
