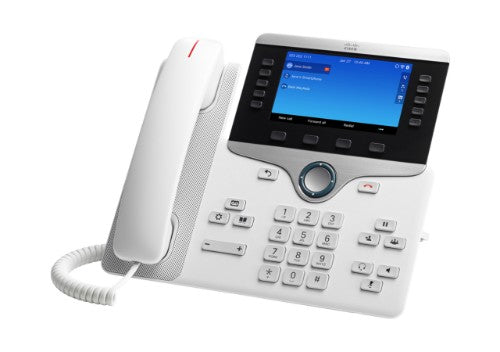

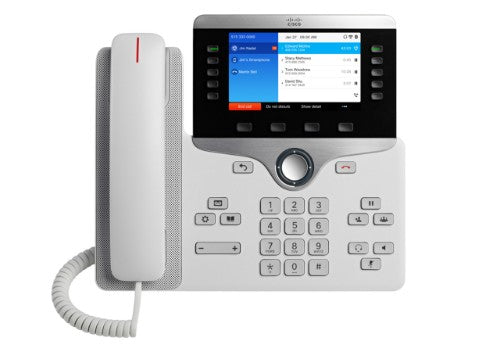

IP Business Phone 8861, 5-inch WVGA Colour Display, Gigabit Ethernet Switch, Class 4 PoE, WLAN Enabled, 2 USB Ports, 10 SIP Registrations, 1-Year Limited Hardware Warranty (CP-8861-K9=)
Key Features
- LARGE DISPLAY: 5-inch high-resolution widescreen WVGA colour display with localised language support to meet the needs of global users
- FIXED FUNCTION KEYS: One-touch access to service, messaging, directory, hold/resume, transfer and conference features
- FULLY PROGRAMMABLE: Set up line keys to support either lines, such as directory numbers, or call features like speed dialling
- OPTIMAL PERFORMANCE: Class 4 PoE with a built-in Ethernet Gigabit switch for your PC connection; 802.11a/b/g/n/ac Wi-Fi compatible
- PEACE OF MIND: 1-year limited hardware warranty
Description
The Cisco IP Phone 8861 Series with Multi-Platform Phone firmware helps increase personal productivity in the workplace thanks to powerful yet easy-to-use features. This office phone has an attractive, ergonomic design that offers comfortable use, with wideband audio for crystal clear voice communications, ‘always-on’ reliability and encrypted voice communications for enhanced security.
Specifications
| Features |
|---|
| Wall mountable |
Yes |
| Volume control |
Digital |
| Mounting |
Desk/Wall |
| Product colour |
Black, Silver |
| Security |
|---|
| Security algorithms |
EAP-FAST, EAP-TLS, HTTPS, SRTP, SSH, SSL/TLS, TKIP, WEP, WPA |
| Design |
|---|
| Product type |
IP Phone |
| Wall mountable |
Yes |
| Mounting |
Desk/Wall |
| Product colour |
Black, Silver |
| Phone features |
|---|
| Speed dialling |
Yes |
| Redialing |
Yes |
| Intercom |
Yes |
| Answering machine |
Yes |
| Do not disturb function |
Yes |
| Distinctive ring |
Yes |
| Conference call |
Yes |
| Caller ID |
Yes |
| Call waiting |
Yes |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Management features |
|---|
| Volume control |
Digital |
| Display |
|---|
| Touchscreen |
No |
| Display resolution |
800 x 480 pixels |
| Display diagonal |
12.7 cm (5") |
| Audio |
|---|
| Speakerphone |
Yes |
| Network |
|---|
| Bluetooth |
Yes |
| Bluetooth version |
3.0+HS |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Supported network protocols |
IEEE 802.3i/802.3u/802.3ab/802.3af/802.3at |
| Security algorithms |
EAP-FAST, EAP-TLS, HTTPS, SRTP, SSH, SSL/TLS, TKIP, WEP, WPA |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN |
Yes |
| DHCP client |
Yes |
| Technical details |
|---|
| Harmonized System (HS) code |
85171800 |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 60 °C |
| Storage relative humidity (H-H) |
10 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
257.3 mm |
| Depth |
40 mm |
| Height |
229.1 mm |
| Weight |
1.19 kg |
| Package width |
263.9 mm |
| Package depth |
353.1 mm |
| Package height |
75.9 mm |
| Package weight |
1.6 kg |
| Logistics data |
|---|
| Country of origin |
China |
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85171800 |
