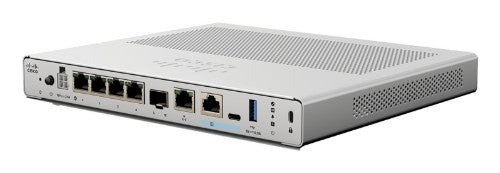

Secure Firewall 220 compact desktop appliance, NGFW
Description
The Cisco® Secure Firewall 200 Series offers next-generation firewall capabilities specifically designed for distributed enterprises and small branch locations. It provides robust, cost-effective security and simplified management within a compact form factor, ensuring secure and optimized connectivity at the network edge. The 200 Series extends Cisco's Hybrid Mesh Firewall architecture to branch edges, providing AI-powered inspection and consistent security policies. It integrates SD-WAN capabilities for enhanced application performance and reliable user access. Additionally, the 200 Series delivers application and user control, efficient segmentation, and advanced security features tailored for cost-sensitive environments. Cisco Secure Firewall 220 is the first model in the 200 series.
The Cisco Secure Firewall 220 supports both Cisco Firewall Threat Defense (FTD) and Cisco Adaptive Security Appliance (ASA) software. While the FTD software offers all the advanced next-generation security capabilities, ASA software delivers higher throughput for stateful inspection.
Specifications
| Data transmission |
|---|
| Maximum data transfer rate |
1.2 Gbit/s |
| Firewall throughput |
1 Gbit/s |
| VPN throughput |
1.2 Gbit/s |
| Performance |
|---|
| Mean time between failures (MTBF) |
700000 h |
| Management features |
|---|
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
1 |
| Connectivity technology |
Wired |
| USB 2.0 ports quantity |
3 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Power |
|---|
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
| Input current |
1 A |
| Power supply |
12.7 W |
| Power consumption (max) |
19 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3048 m |
| Non-operating altitude |
0 - 4570 m |
| Weight & dimensions |
|---|
| Weight |
1.17 kg |
| Width |
234 mm |
| Depth |
198 mm |
| Height |
29 mm |
