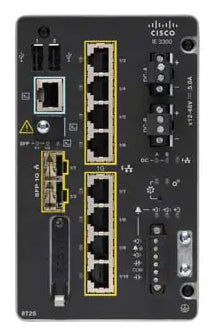

Cisco Catalyst IE-3300-8T2S-E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Catalyst IE3300 with 8 GE Copper and 2 GE SFP, Modular, Network Essentials

Key Features

• Modular Base System
• 8 Copper + 2 Fiber ports
• Network Essentials

Description

Cisco Catalyst IE3300 Rugged Series Data Sheet

The Cisco Catalyst IE3300 Rugged Series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact, form-factor, modular switch that is purpose-built for a wide variety of extended enterprise and industrial applications.

Product overview

Cisco Catalyst IE3300 Rugged Series switches deliver high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3300 Rugged Series offers the flexibility to expand to up to 26 ports of Gigabit Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3300 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.

These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3300 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Cisco Industrial Network Director, and can be easily set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch®.

The IE3300 series (with expansion module) supports power budget of up to 360W for PoE/PoE+, shared across 24 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.

Specifications

Management features
ARP inspection	Yes
Switch layer	L2
Switch type	Managed
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	802.1X MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-UDLDP-MIB, CISCO-ENVMON-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PAE-MIB, Cisco-Port-QoS-MIB, CISCO-ERR-DISABLE-MIB, CISCO- PROCESS-MIB, LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB, LLDP-MED-MIB, Bridge-MIB, CISCO-CAR-MIB, CISCO-LAG-MIB, CISCO-SYSLOG-MIB, CISCO-FTP-CLIENT-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, Cisco-REP-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-CDP-MIB, CISCO-IP-STAT-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-STP-EXTN-MIB, CISCO-VTP-MIB, IEEE8023-LAG-MIB, SMON-MIB, CISCO-ACCESS-ENVMON-MIB, CISCO-CALLHOME-MIB, CISCO-CONFIG-MAN-MIB, CISCO-FLASH-MIB, CISCO-ENTITY-SENSOR-MIB, IP-MIB, CISCO-PAGP-MIB
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45
Gigabit Ethernet (copper) ports quantity	8
USB 2.0 ports quantity	2
Compatible memory cards	SD
Power connector	DC-in jack
Network
Networking standards	IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Number of VLANs	256
Spanning tree protocol	Yes
Link aggregation	Yes
Broadcast storm control	Yes
10G support	No
IGMP snooping	Yes
IGMP entries	1000
Data transmission
Jumbo frames	8996
MAC address table	8000 entries
Number of queues	8
Jumbo frames support	Yes
Number of VLANs	256
Security
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication
Security algorithms	802.1x RADIUS, SNMPv3, SSH
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	IEEE 802.1x, RADIUS, TACACS+
Access Control List (ACL) ingress	3000
IGMP entries	1000
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Protocols
Management protocols	IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, voice VLAN, PVST+, MSTP, and RSTP
Switching protocols	IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
Design
DIN rail mounting	Yes
International Protection (IP) code	IP20
Rack mounting	Yes
Product colour	Black
LED indicators	Yes
Certification	UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55
Performance
Internal memory	2000 MB
Flash memory	1500 MB
Mean time between failures (MTBF)	633420 h
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
Power consumption (typical)	23 W
Redundant power supply (RPS) support	Yes
Input current	3.8 A
DC input voltage	9.6 - 60 V
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 4572 m
Virtual LAN features
Number of VLANs	256
Weight & dimensions
Width	91 mm
Depth	135 mm
Height	152 mm
Weight	1.7 kg
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55
Logistics data
Harmonized System (HS) code	85176990
