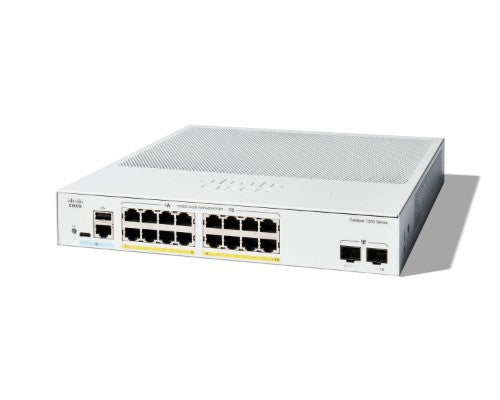

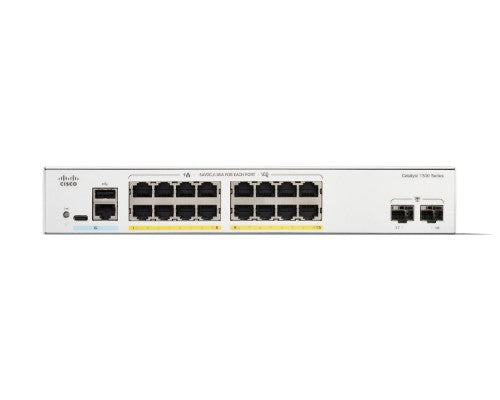

Cisco Catalyst 1300-16FP-2G Managed Switch, 16 Port GE, Full PoE, 2x1GE SFP, Limited Lifetime Protection (C1300-16FP-2G)
Key Features
- SWITCH PORTS: 16 ports 10/100/1000 + 2x 1GE SFP (total PoE power budget: 240W, PoE, PoE+)
- SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
- ENHANCED SECURITY: IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
- ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
- PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
Description
The Cisco Catalyst 1300-16FP-2G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.
Specifications
| Management features |
|---|
| Reset button |
Yes |
| Multicast support |
Yes |
| ARP inspection |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| MIB support |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Network |
|---|
| IGMP snooping |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Broadcast storm control |
Yes |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
2 |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Security |
|---|
| SSH/SSL support |
Yes |
| Security algorithms |
HTTPS, SSH, SSL/TLS |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Reset button |
Yes |
| Country of origin |
China |
| Product colour |
White |
| LED indicators |
Yes |
| Housing material |
Metal |
| Performance |
|---|
| Processor frequency |
1400 MHz |
| Internal memory |
1024 MB |
| Flash memory |
512 MB |
| Power |
|---|
| Power plug type |
Type C |
| Power supply included |
Yes |
| Power source |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
323.3 mm |
| Depth |
268.2 mm |
| Height |
43.9 mm |
| Packaging data |
|---|
| Package width |
440.9 mm |
| Package depth |
399 mm |
| Package height |
108 mm |
| Package weight |
4.35 kg |
| Other features |
|---|
| Packaging content |
Switch, power cable, USB Type C cable and mounting hardware |
| Ethernet LAN data rates |
1000 Mbit/s |
| Country of origin |
China |
