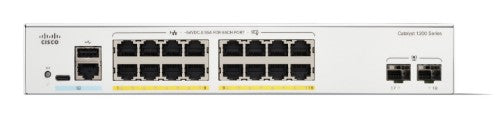

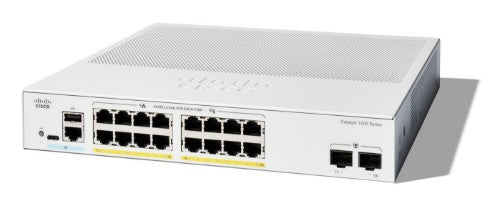

Catalyst 1200-16P-2G Smart Switch, 16 Port GE, PoE, 2x1GE SFP, Limited Lifetime Protection (C1200-16P-2G)
Key Features
- SWITCH PORTS: 16 ports 10/100/1000 + 2x 1GE SFP (total PoE power budget: 120W, PoE, PoE+)
- SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
- SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
- ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
- PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
Description
The Cisco Catalyst 1200-16P-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.
Specifications
| Management features |
|---|
| Switch layer |
L2 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| MIB support |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Console port |
RJ-45/USB Type-C |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs |
255 |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| IGMP snooping |
Yes |
| IGMP entries |
255 |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| MAC address table |
8000 entries |
| Switching capacity |
36 Gbit/s |
| Number of static routes |
32 |
| Jumbo frames support |
Yes |
| Packet buffer memory |
1.5 MB |
| Static route |
Yes |
| Forwarding rate |
26.78 Mpps |
| Number of VLANs |
255 |
| Security |
|---|
| Loop protection |
Yes |
| Authentication |
Guest VLAN |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Authentication type |
RADIUS |
| IGMP entries |
255 |
| DHCP features |
DHCP client |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Grey |
| LED indicators |
Yes |
| Country of origin |
China |
| Performance |
|---|
| Mean time between failures (MTBF) |
706983 h |
| Packet buffer memory |
1.5 MB |
| Power |
|---|
| Power plug type |
Type C |
| Power consumption (max) |
156.4 W |
| AC input voltage |
110 - 220 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Total Power over Ethernet (PoE) budget |
120 W |
| Other features |
|---|
| Packaging content |
Switch, power cable, USB Type C cable and mounting hardware |
| Country of origin |
China |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
| Heat dissipation |
536.05 BTU/h |
| Virtual LAN features |
|---|
| Number of VLANs |
255 |
| VLAN support |
Yes |
| Weight & dimensions |
|---|
| Width |
296.9 mm |
| Depth |
268.2 mm |
| Height |
43.9 mm |
| Weight |
2.38 kg |
| Packaging data |
|---|
| Package width |
414 mm |
| Package depth |
399 mm |
| Package height |
108 mm |
| Package weight |
4.11 kg |
| Logistics data |
|---|
| Country of origin |
China |
