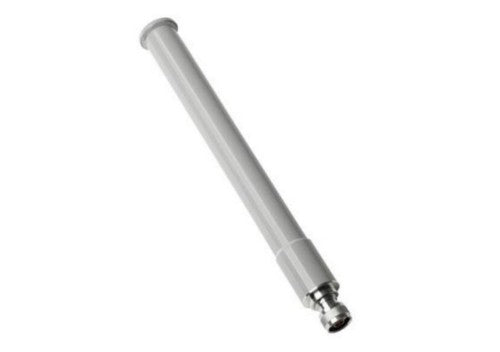

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)

Cisco

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)

Read reviews
SKU: AIR-ANT2547V-N=
Your price $513.70
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)

Key Features

  • OMNIDIRECTIONAL WI-FI ANTENNA: 4 dBi (2.4 GHz)/7 dBi (5 GHz); suitable for use on Aironet outdoor access points
  • CONNECTION AND MOUNT: N-type male connector; direct mount on access point; no cable attachments
  • 360-DEGREE RADIATION PATTERN: Intended for deployment when coverage in all directions from the antenna is required
  • PERFORMANCE: Designed for improved coverage
  • PEACE OF MIND: 1-year limited hardware warranty

Description

The Cisco Aironet AIR-ANT2547V-N= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved coverage and performance in mind. This FCC-approved omnidirectional antenna provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions from the antenna is required.

Specifications

Performance
Antenna gain level (max) 7 dBi
Frequency band 2.4/5 GHz
Impedance 50 Ω
Horizontal beam width (5 GHz) 14°
Horizontal beam width (2.4 GHz) 30°
Antenna gain (5 GHz) 7 dBi
Antenna gain (2.4 GHz) 4 dBi
Features
Country of origin China
Antenna gain level (max) 7 dBi
Connector gender Male
Frequency band 2.4/5 GHz
Antenna type Omni-directional antenna
Voltage Standing Wave Ratio (VSWR) 2:1
Purpose Outdoor
Impedance 50 Ω
Horizontal beam width (5 GHz) 14°
Horizontal beam width (2.4 GHz) 30°
Antenna gain (5 GHz) 7 dBi
Antenna gain (2.4 GHz) 4 dBi
Antenna connector type N-type
Product colour Silver
Technical details
Harmonized System (HS) code 85177100
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Weight & dimensions
Package width 152.4 mm
Package depth 482.6 mm
Package height 50.8 mm
Package weight 317.46 g
Weight 170 g
Width 3.17 mm
Depth 3.17 mm
Height 282 mm
Diameter 3.17 mm
Packaging content
Quantity per pack 1 pc(s)
Packaging content AIR-ANT2547V-N Antenna
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85177100
Other features
Dimensions (WxDxH) 3.17 x 3.17 x 282 mm
Frequency range 2.4 - 2.483GHz, 5.15 - 5.875GHz
Brand
Cisco
SKU
AIR-ANT2547V-N=
