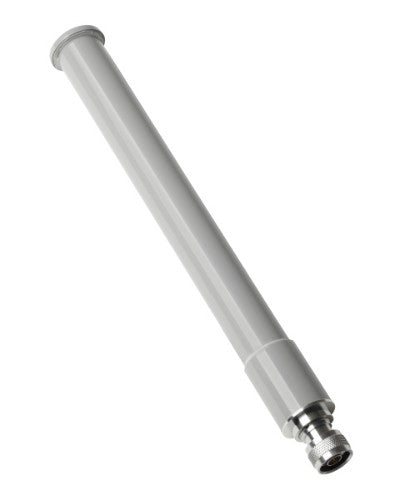

Cisco AIR-ANT2547VG-NS network antenna Omni-directional antenna N-type 7 dBi

Cisco

Cisco AIR-ANT2547VG-NS network antenna Omni-directional antenna N-type 7 dBi

Read reviews
SKU: AIR-ANT2547VG-NS=
Your price $633.60
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

2.4 GHz/5GHz, 50 Ohms, 4-dBi/7-dBi, N-Male, IP66, IP67, Grey, Spare

Description

The Cisco AIR-ANT2547VG-NS is a self-identifying antenna having circuitry that enables Cisco access points (APs) to self-identify the antenna. This antenna has an in-built EEPROM that the APs read and automatically configure the antenna type and the gain in the wireless controller.

Specifications

Performance
Bandwidth note 2400 - 2483 , 5150 - 5875 MHz
Antenna gain level (max) 7 dBi
Frequency band 2.4/5 GHz
Impedance 50 Ω
Horizontal beam width (5 GHz) 14°
Horizontal beam width (2.4 GHz) 30°
Gain 4 / 7 dBi
Antenna gain (5 GHz) 7 dBi
Antenna gain (2.4 GHz) 4 dBi
Features
Waterproof Yes
Survival wind speed 265 km/h
Protection features Dust resistant, Splash proof, Water resistant
International Protection (IP) code IP67
Antenna gain level (max) 7 dBi
Connector gender Male
Frequency band 2.4/5 GHz
Antenna type Omni-directional antenna
Voltage Standing Wave Ratio (VSWR) 2:1
Purpose Outdoor
Impedance 50 Ω
Horizontal beam width (5 GHz) 14°
Horizontal beam width (2.4 GHz) 30°
Gain 4 / 7 dBi
Antenna gain (5 GHz) 7 dBi
Antenna gain (2.4 GHz) 4 dBi
Antenna connector type N-type
Product colour Grey
Technical details
Harmonized System (HS) code 85177100
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Weight & dimensions
Weight 170 g
Height 282 mm
Diameter 3.17 cm
Packaging content
Manual Yes
Quantity per pack 1 pc(s)
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85177100
Brand
Cisco
SKU
AIR-ANT2547VG-NS=
