IP Phone 8861, 3rd Party Call Control
Description

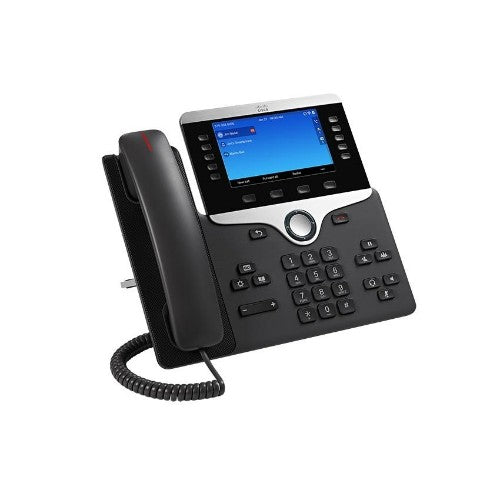

The Cisco® IP Phone 8861 is a business-class collaboration endpoint that combines high-fidelity, reliable, secure, and scalable voice communications with Cisco Intelligent Proximity for telephony integration for personal mobile devices to support midsize to large enterprise businesses.
With the IP Phone 8861, you can increase personal productivity through an engaging user experience that is both powerful and easy-to-use. The IP Phone 8861 combines an attractive new ergonomic design with wideband audio for crystal clear voice communications, “always-on” reliability, encrypted voice communications to enhance security, and access to a comprehensive suite of unified communications features from Cisco communication servers.
In addition, Cisco Intelligent Proximity brings the worlds of desk and mobile together for you when you are using your mobile device at the desk for your work. You can move the audio path over to the IP Phone 8861 during active mobile calls to take advantage of its superior audio acoustics. An example would be to share a conversation with a colleague who you want to listen in. This capability gives you greater flexibility and a superior user experience when at your desk.
The IP Phone 8861 comes standard with two USB ports so you can charge your personal mobile devices when at your desk, and stay connected when away from your desk.
The Cisco IP Phone 8861 offers five programmable line keys. You can configure keys to support either multiple directory numbers or calling features such as speed dial. You can also boost productivity by handling multiple calls for each directory number using the multicall-per-line feature. Fixed-function keys give you one-touch access to applications, messaging, directory, as well as often-used calling features such as hold/resume, transfer, and conference. A five-way navigation cluster helps you transition through menus more easily. Backlit acoustic keys provide flexibility for audio path selection and switching.
Other key features of the phone follow:
- The Cisco IP Phone 8861 offers a 5-in. high-resolution (800 x 480) widescreen VGA backlit color display. Localized language support, including right-to-left on-screen text, meets the needs of global users.
- The phone offers a built-in Gigabit Ethernet switch for both network connection and your PC connection.
- The phone also supports campuses with 802.11a/b/g/n/ac WLAN enabled.
- Support for Cisco EnergyWise™ technology makes the Cisco IP Phone 8861 more energy-efficient and ecofriendly; the phone is qualified by the Energy Star organization.
- An optional wall-mount kit is orderable as a spare part for customers seeking this capability.
Specifications
| Features |
|---|
| Wall mountable |
Yes |
| Volume control |
Digital |
| Mounting |
Desk/Wall |
| Product colour |
Black, Silver |
| Security |
|---|
| Security algorithms |
EAP-FAST, EAP-TLS, HTTPS, SRTP, SSH, SSL/TLS, TKIP, WEP, WPA |
| Design |
|---|
| Product type |
IP Phone |
| Wall mountable |
Yes |
| Mounting |
Desk/Wall |
| Product colour |
Black, Silver |
| Phone features |
|---|
| Speed dialling |
Yes |
| Redialing |
Yes |
| Intercom |
Yes |
| Answering machine |
Yes |
| Do not disturb function |
Yes |
| Distinctive ring |
Yes |
| Conference call |
Yes |
| Caller ID |
Yes |
| Call waiting |
Yes |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Management features |
|---|
| Volume control |
Digital |
| Display |
|---|
| Touchscreen |
No |
| Display resolution |
800 x 480 pixels |
| Display diagonal |
12.7 cm (5") |
| Audio |
|---|
| Speakerphone |
Yes |
| Network |
|---|
| Bluetooth |
Yes |
| Bluetooth version |
3.0+HS |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Supported network protocols |
IEEE 802.3i/802.3u/802.3ab/802.3af/802.3at |
| Security algorithms |
EAP-FAST, EAP-TLS, HTTPS, SRTP, SSH, SSL/TLS, TKIP, WEP, WPA |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN |
No |
| DHCP client |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 60 °C |
| Storage relative humidity (H-H) |
10 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
257.3 mm |
| Depth |
40 mm |
| Height |
229.1 mm |
| Weight |
1.19 kg |
