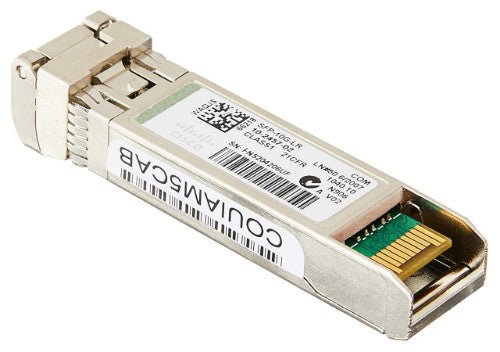

Cisco 10GBASE-LR SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LR=)

10GBASE-LR SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LR=)

Key Features

• LINK LENGTH: Supports a link length of 10 km on standard single-mode fibre
• COMPACT: Industry-smallest 10G form factor for greatest density per chassis
• HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
• VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
• PEACE OF MIND: 5-year standard replacement warranty

Description

The Cisco 10GBASE-LR SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise and service provider applications over single-mode fibre. This hot-swappable input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.

Specifications

Performance
Hot-swap	Yes
Wavelength	1310 nm
Maximum transfer distance	10000 m
Ports & interfaces
Connectivity technology	Wired
Design
Country of origin	China
Power
Power consumption (typical)	1 W
Management features
Hot-swap	Yes
Weight & dimensions
Width	13.4 mm
Depth	56.5 mm
Height	8.5 mm
Weight	75 g
Package width	143 mm
Package depth	158.8 mm
Package height	44.5 mm
Package weight	90.7 g
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Packaging data
Package width	143 mm
Package depth	158.8 mm
Package height	44.5 mm
Package weight	90.7 g
Technical details
Harmonized System (HS) code	85176990
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Other features
Interface	SFP
Fiber type	SMF
