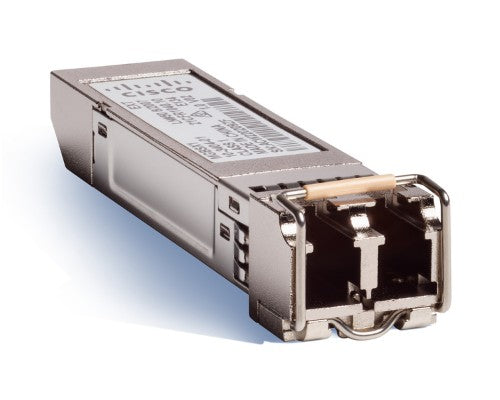

Cisco 1000BASE-SX SFP Module for Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (GLC-SX-MMD=)
SAVE 53%

Cisco

Cisco 1000BASE-SX SFP Module for Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (GLC-SX-MMD=)

Read reviews
SKU: GLC-SX-MMD=
Your price $607.64
List price $1,303.36 Save $695.72
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

1000BASE-SX SFP Module for Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (GLC-SX-MMD=)

Key Features

  • COMPATIBILITY: 1000BASE-SX SFP is designed for operation on multi-mode fibre
  • OPERATION: Operates distances up to 1 km over laser-optimised 50 μm core multi-mode fibre cable
  • HOT SWAPPABLE: Plugs into an Ethernet SFP port or slot with no need to shut down if installing or replacing
  • VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for flexible media and interface choice on a port-by-port basis
  • PEACE OF MIND: 5-year standard replacement warranty

Description

The Cisco 1000BASE-SX SFP Module is an industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter that links switches and routers to the network. Featuring a robust design for enhanced reliability, this SFP receiver/transmitter module plugs into a Gigabit Ethernet port or slot and is hot-swappable to maximise uptime and simplify serviceability.

Specifications

Network
SFP transceiver type Fiber optic
Interface type SFP
Maximum data transfer rate 1000 Mbit/s
Fiber optic connector LC
Networking standards IEEE 802.3z
Fiber ports quantity 2
Performance
Country of origin China
Hot-swap Yes
SFP transceiver type Fiber optic
Interface type SFP
Maximum data transfer rate 1000 Mbit/s
Fiber optic connector LC
Networking standards IEEE 802.3z
Auto MDI/MDI-X No
Maximum transfer distance 10000 m
Wavelength 850 nm
Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
Fiber ports quantity 2
Multi-mode fiber (MMF) supported Yes
SFP transceiver standard SX
Harmonized System (HS) code 85369010
Features
Country of origin China
Hot-swap Yes
Power
Power consumption (typical) 1.5 W
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Technical details
Harmonized System (HS) code 85369010
Weight & dimensions
Width 13.4 mm
Depth 56.5 mm
Height 8.5 mm
Weight 75 g
Package width 143 mm
Package depth 158.8 mm
Package height 44.5 mm
Package weight 90.7 g
Packaging data
Package width 143 mm
Package depth 158.8 mm
Package height 44.5 mm
Package weight 90.7 g
Logistics data
Harmonized System (HS) code 85369010
Quantity per pack 1 pc(s)
Brand
Cisco
SKU
GLC-SX-MMD=
