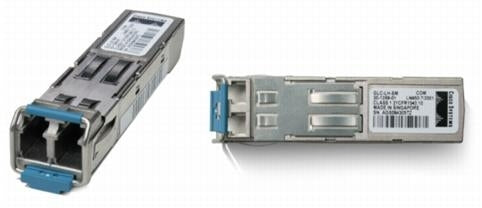

Cisco 1000BASE-LX/LH network transceiver module 1000 Mbit/s 1310 nm
SAVE 65%

Cisco

Cisco 1000BASE-LX/LH network transceiver module 1000 Mbit/s 1310 nm

Read reviews
SKU: GLC-LX-SM-RGD=
Your price $1,058.38
List price $3,054.17 Save $1,995.78
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

1000BASE-LX/LH Long Wavelength; Rugged

Description

The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network (Figure 1). SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis. 1000BASE-LX/LH SFP for Both Multimode and Single-Mode Fibers The 100BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers.

Specifications

Network
Maximum data transfer rate 1000 Mbit/s
Fiber optic connector LC, PC
Cabling technology 100BASE-LX/LH
Performance
Maximum data transfer rate 1000 Mbit/s
Fiber optic connector LC, PC
Maximum transfer distance 10000 m
Wavelength 1310 nm
Cabling technology 100BASE-LX/LH
Maximum transfer distance (Single-mode) 10000 m
Maximum transfer distance (Multi-mode) 550 m
Harmonized System (HS) code 85369010
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Storage temperature (T-T) -40 - 85 °C
Technical details
Harmonized System (HS) code 85369010
Weight & dimensions
Weight 75 g
Other features
Transmit power range -3 - -9.5 dBmW
Dimensions (WxDxH) 13.4 x 56.5 x 8.5 mm
Brand
Cisco
SKU
GLC-LX-SM-RGD=
