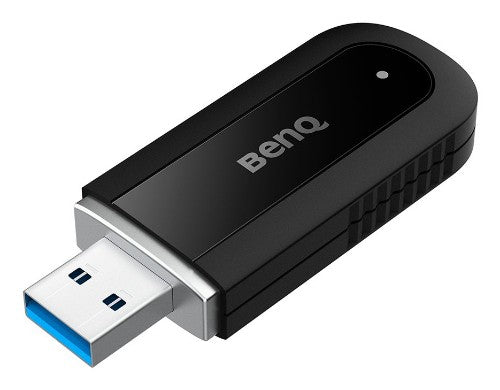

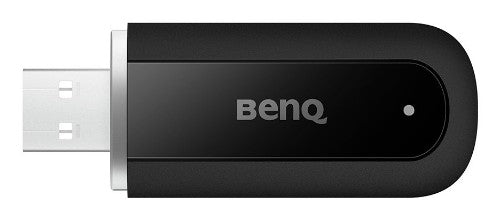

BenQ WD02AT WLAN / Bluetooth 1201 Mbit/s

2-in-1 WiFi Bluetooth Adapter

Key Features

• Stable dual-band Wi-Fi 6 connection
• Connect your Bluetooth devices
• Works with your BenQ Board
• Fully compatible with InstaShare Button

Description

Expand your display’s connectivity
Get Wi-Fi and Bluetooth connectivity to connect your display to the web or Bluetooth devices like speakers and microphones.

Turn your display into a Wi-Fi hotspot
Plug the adapter into a BenQ display and set up a Wi-Fi hotspot to share your Ethernet connection with multiple devices. This is perfect for meeting rooms that need wireless screen sharing.

Upgrade your display with Bluetooth devices
Connecting the WD02AT to your interactive display allows you to use Bluetooth devices such as keyboards, mice, and speakers without the hassle of cables.

A faster Wi-Fi connection
The WD02AT connects to either the 2.4 GHz or 5 GHz band, guaranteeing steady speeds of up to 1201 Mbps. *Maximum internet speed may vary depending on network environment.

One-click wireless screen sharing
Wirelessly cast your screen with a single click. The WD02AT is fully compatible with the InstaShare Button, allowing connected devices to share their screens, camera feeds, or files on the BenQ Board.

Specifications

Ports & interfaces
Internal	No
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN / Bluetooth
Bandwidth
Maximum data transfer rate	1201 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi	Yes
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Maximum data transfer rate	1201 Mbit/s
Wi-Fi	Yes
Bluetooth version	5.2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth	Yes
Design
Internal	No
Product colour	Black
Component for	Interactive whiteboard
Power
Power consumption (typical)	2.5 W
USB powered	Yes
System requirements
Security updates end date	01/11/2025
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	0 - 75 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	133 mm
Depth	80 mm
Height	30 mm
Performance
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Other features
Bluetooth version	5.2
Bluetooth	Yes
