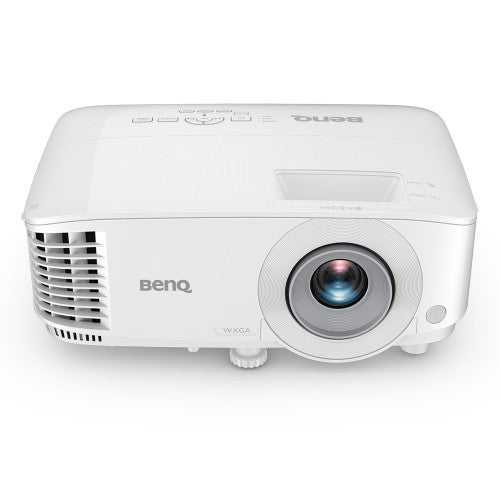

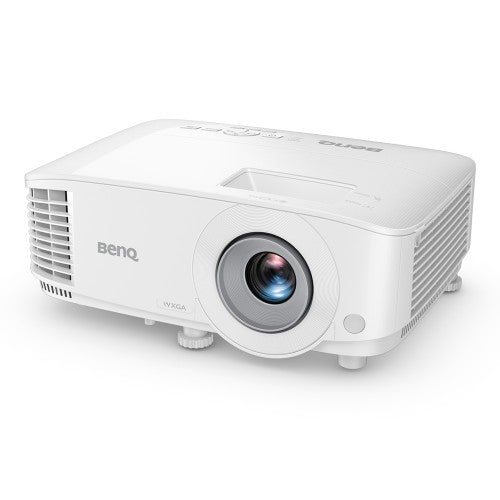

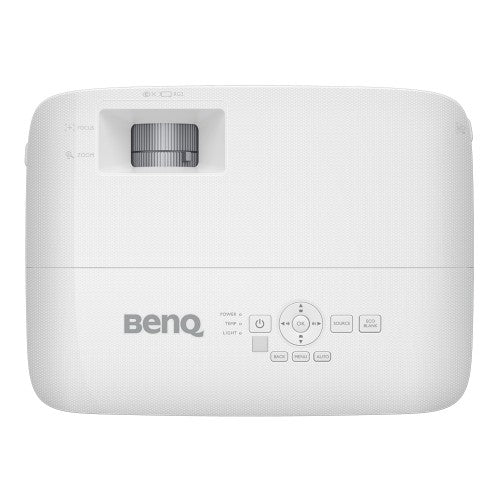

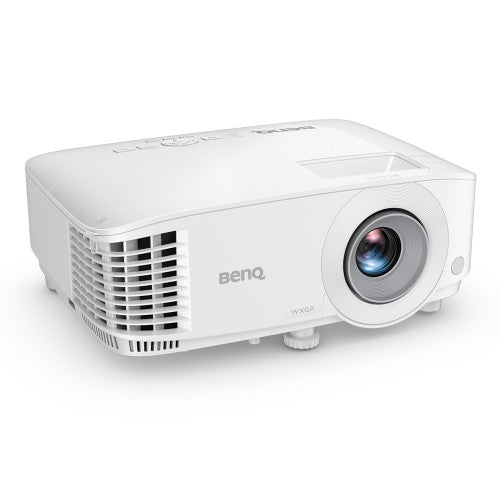

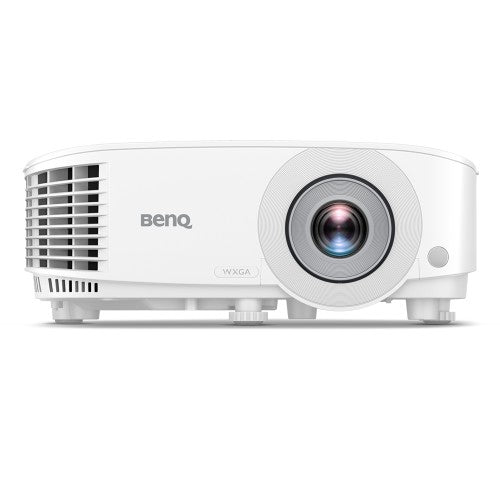

BenQ MW560 data projector Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D White

DLP, 0.65", WXGA, 1280 x 800, 4000 ANSI Lum, 20000:1, 1.55 - 1.7, 1 x 10W, 100-240V, VGA, 34 /29 dBA, 23000 g

Key Features

• 4000 ANSI Lumen High Brightness; 20,000:1 High Contrast
• Exclusive Data Review Mode Showcases Detailed Presentations
• SmartEco Mode Saves Up to 70% Lamp Power

Description

Transformative Technology

HDMI for Fast Transmission

HDMI connectivity provides faster data transmission to digital devices

Dual Connectivity,
Dual Convenience
Dual HDMI offers more flexible connectivity between devices

Time-Saving Convenience
Automatically turns on the projector once the HDMI input signal is detected

4000 Lumens,
20000: 1 Contrast
High brightness & contrast images, even in well-lit meeting rooms

Crystal-Clear Images
All glass lenses for image quality in brilliant clarity

Clear Data Review
Data Review Mode shows every letter and digit clearly

Detailed Infographics
Exclusive Infographic Mode displays detailed text and graphics

Clear User Interface
Intuitive windows design to display the contents clearly

Auto Vertical Keystone for Perfect Alignment
Project the image from any angle with a perfectly squared image with Auto Vertical Keystone.

Lamp Life up to 15,000 hrs
SmartEco Mode saves up to 70% lamp power

Power-Saving, Energy-Saving
Auto Power Off shuts down when no input signal is detected for 20 minutes. (Also accessed via OSD)

Easy Setup
Ergonomic retractable feet for easy setup and adjustment

Get Instant ON
Turn on the projector again within 90 secs after power off without long delays

Enhanced Security
Kensington Lock for physical security to discourage theft

All-in-One Solution
No more fuzzy text and figures
Perfect Combination: Stunning Clarity and Crafted Colors
Finest Precision Glass Lenses for Crystal-Sharp Clarity
BenQ only uses high-quality glass lenses to minimize chromatic aberration, ensuring long-term image quality in brilliant clarity.

Presentation Mode
Designed for presentations with vivid colors. In this mode, boosted brightness matches PC and notebook display.

Infographic Mode
Great for showcasing detailed infographic text and graphics with high brightness and better color gradation.

Data Review Mode
Data Review Mode displays reports with improved contrast and clarity for added efficiency and collaboration.

Low Maintenance & Energy Efficient
Save Power, Save Manpower

Details That Make a Difference

Specifications

Projector
Number of colours	1.073 billion colours
Projector brightness	4000 ANSI lumens
Projection technology	DLP
Projector native resolution	WXGA (1280x800)
Screen size compatibility	1524 - 3810 mm (60 - 150")
Native aspect ratio	16:9
Contrast ratio (typical)	20000:1
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Light source
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	10000 h
Lens system
Zoom ratio	1.1:1
Zoom capability	Yes
Throw ratio	1.55 - 1.7
Offset	100%
Video
Analog signal format system	NTSC, PAL, SECAM
3D	Yes
Supported video modes	480i, 480p, 576i, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1200 (WUXGA)

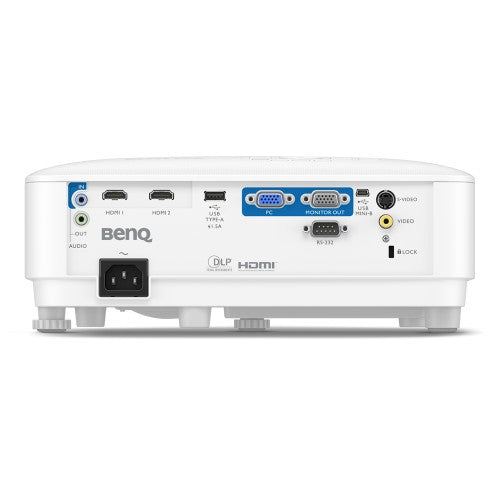

Ports & interfaces
Mobile High-Definition Link (MHL)	Yes
VGA (D-Sub) ports quantity	1
HDMI ports quantity	2
USB 2.0 ports quantity	1
Composite video in	1
Audio (L/R) in	1
S-Video inputs quantity	1
PC Audio out	Yes
PC Audio in	Yes
Component video (YPbPr/YCbCr) in	1
Storage
Card reader integrated	No
Features
On Screen Display (OSD)	Yes
Noise level	34 dB
Noise level (economic mode)	29 dB
Multimedia
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	10 W
Design
Market positioning	Portable
Product type	Standard throw projector
Product colour	White
Cable lock slot type	Kensington
Cable lock slot	Yes
Placement	Desktop, Ceiling
Display
Built-in display	No
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	260 W
Power consumption (standby)	0.5 W
Power consumption (max)	280 W
Power consumption (economy mode)	215 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	296 mm
Depth	221 mm
Height	120 mm
Weight	2.3 kg
Packaging content
Remote control included	Yes
Mounting brackets included	Yes
Manual	Yes
Cables included	AC, VGA
Batteries included	Yes
Other features
Security updates end date	31/12/2024
