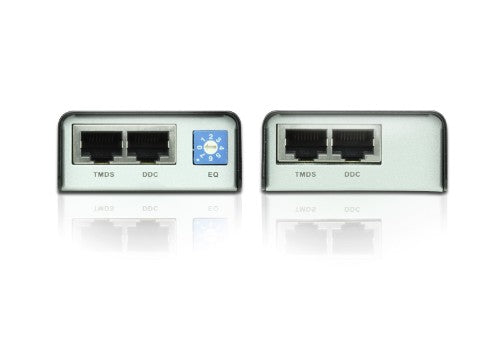

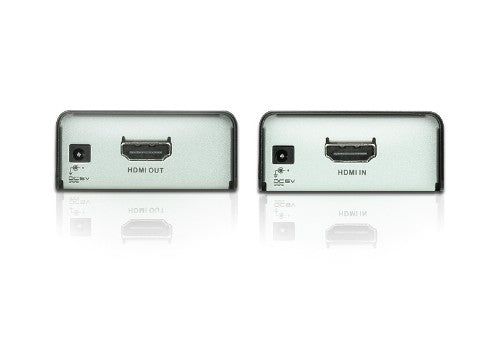

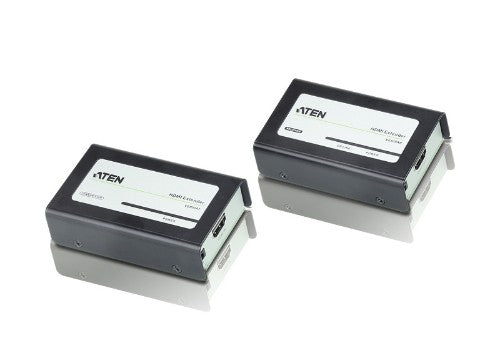

ATEN VE800A-AT-U AV extender AV transmitter & receiver Black

ATEN

ATEN VE800A-AT-U AV extender AV transmitter & receiver Black

Read reviews
SKU: VE800A-AT-U
Your price $159.50
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

HDMI Over Cat5e/6 Audio/Video Extender (60m)

Key Features

  • Uses Cat 5e cable to extends the distance between HDMI source and HDMI display
  • Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
  • HDMI (3D, Deep Color); HDCP Compatible
  • 8 segment equalization adjustment switch optimizes display quality

Description

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions

Specifications

Features
Material Metal
HDCP Yes
Impedance 100 Ω
Type AV transmitter & receiver
Maximum resolution 1920 x 1080 pixels
Cable types supported Cat5, Cat6, Cat6a
Maximum transfer distance 3 m
Supported video modes 1080p
LED indicators Yes
Bandwidth 6.75 Gbit/s
Bandwidth 225 MHz
Product colour Black
Ports & interfaces
RJ-45 input ports 2
RJ-45 output ports 2
HDMI in 1
Number of HDMI outputs 1
Ethernet LAN Yes
DC-in jack Yes
Connectivity technology Wired
Power
Power consumption (transmitter) (max) 0.9 W
Power consumption (receiver) (max) 0.61 W
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Receiver dimensions (WxDxH) 55 x 90 x 22 mm
Receiver weight 160 g
Transmitter dimensions (WxDxH) 55 x 90 x 22 mm
Transmitter weight 160 g
Packaging data
Quantity per pack 2 pc(s)
Packaging content
AC adapter included Yes
Brand
ATEN
SKU
VE800A-AT-U
