ATEN VE170Q AV extender AV transmitter & receiver Black

ATEN

ATEN VE170Q AV extender AV transmitter & receiver Black

Read reviews
SKU: VE170Q-AT-U
Your price $561.00
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

VGA / Audio Cat 5 Extender (1280 x 1024@300m)

Key Features

  • Connects a transmitter and receiver via Cat 5e cable
  • Long distance transmission - up to 1920 x 1200@150m; 1280 x 1024@300m
  • Supports one local and one remote VGA display
  • Long distance transmissions – up to 300 m
  • Deskew™ – automatically synchronizes the time delay of RGB signals to compensate for distance
  • Adjustable Gain Control – signal strength can be manually adjusted via video gain or video compensation tuners
  • Audio supported (mono)
  • Built-in ESD protection
  • Rack-mountable

Description

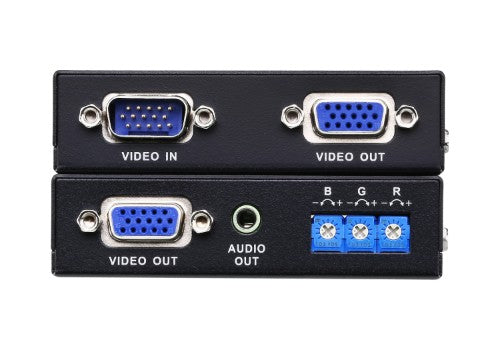

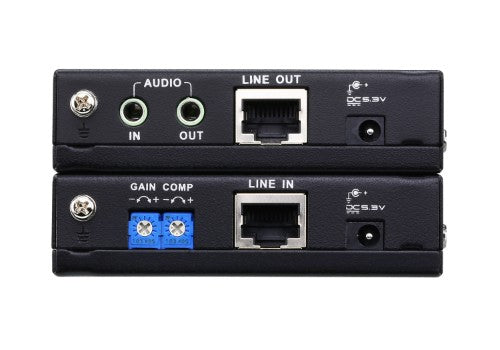

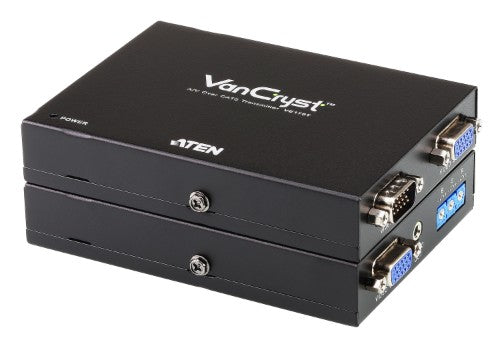

The VE170Q package consists of a transmitter (VE170T) and receiver (VE170RQ), which includes ATEN’s patented Deskew™ technology that supports resolutions up to 1280 x 1024 @ 300 m, and features manual synchronization of the RGB signals and correction of color phase and timing errors that occur over long distances.

The VE170Q VGA / Audio Cat 5 Extenders provides a flexible solution which is ideal for any professional A/V installation that requires multimedia content to be delivered over a long distance.

Specifications

Features
Type AV transmitter & receiver
Cable types supported Cat5e
Maximum transfer distance 300 m
LED indicators Yes
Product colour Black
Ports & interfaces
RJ-45 input ports 1
VGA (D-Sub) input ports 1
VGA (D-Sub) output ports 1
DC-in jack Yes
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Operating temperature (T-T) 0 - 50 °C
Brand
ATEN
SKU
VE170Q-AT-U
