ATEN USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m / FHD @ 100 m)

USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m / FHD @ 100 m)

Key Features

• Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals across 70 m over a Cat 6 cable*
• Long reach mode – 1080p extension up to 100 m
• Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance
• Dual console USB keyboard / mouse operation - control privilege between the remote and local units switchable via USB control mode pushbutton
• Supports HDR 10 for enhanced video quality
• Supports wide screen format
• Supports digital audio formats such as 7.1ch Dolby and DTS audio
• Plug-and-play with no software or driver required
• Built-in 8KV/15KV ESD protection
• Rack-mountable
• DC Jack with screw-lock ensures stable and secure connection

Description

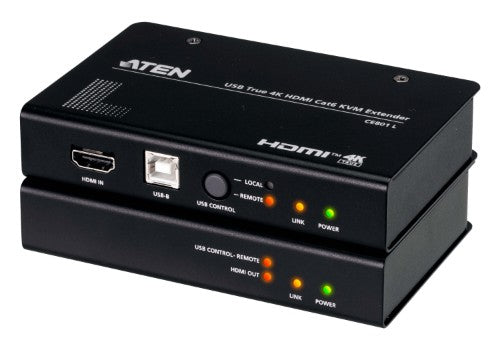

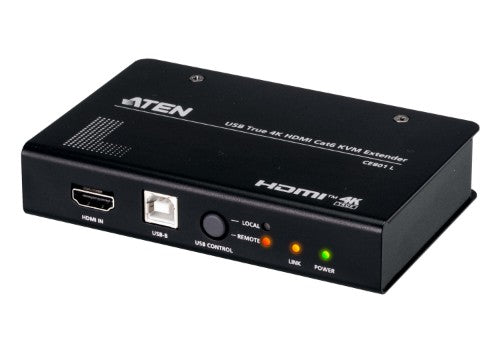

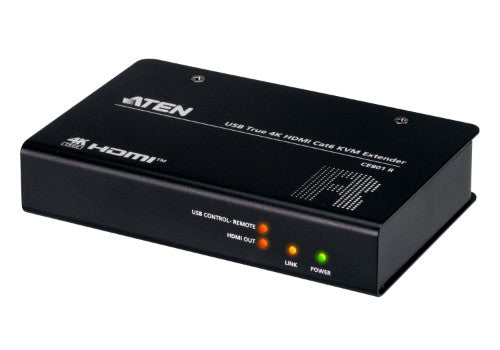

The CE801L and CE801R are USB HDMI Cat 6 KVM extenders designed to bridge the gap between local and remote consoles with smooth, efficient KVM operations. With the source computer connected to the CE801L, you can benefit from instantly responsive KVM control at the CE801R remote console – featuring uncompromising True 4K video, crystal-clear digital audio, high-speed USB peripheral data, and uninterrupted serial control over distances up to 70 meters, all via a single Cat 6 connection. When it comes to simplified KVM extension and ergonomic remote access with hardware securely located away from the workspace, the CE801 speaks for itself.

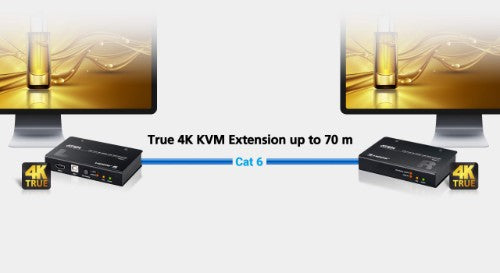

True 4K KVM Extension up to 70 m
The CE801 extends KVM control up to 70 meters over a Cat 6* connection – transmitting stunning True 4K video with HDR, along with USB data, digital audio, and serial control between local and remote consoles.

FHD Long-Reach KVM Extension up to 100 m
With the Long-Reach mode, the CE801 enables KVM extension up to 100 meters over a Cat 6 connection – delivering crisp 1080p video clarity with ease.

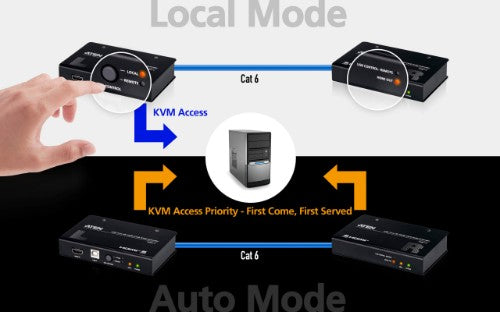

Dual Console Access with Privileged KVM Control

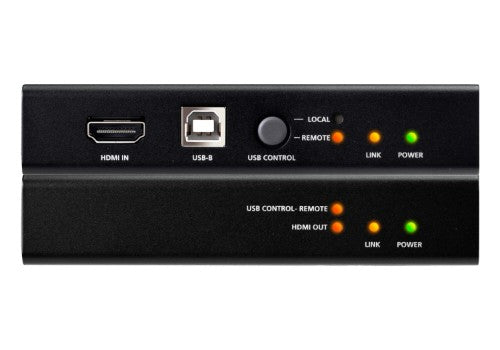

Pressing the pushbutton on the CE801L grants the local console priority KVM access to the source PC at any time (Local Mode). Pressing the button again releases this priority (Auto Mode), allowing KVM access from either the local or remote console – whichever gains control first.

Optimal Video with EDID Switching

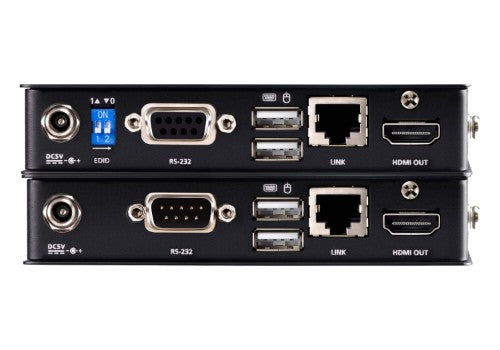

To ensure optimum output quality on both the local and remote consoles, the EDID switches on the CE801L can be adjusted to configure the EDID for both HDMI outputs.

RS-232 Serial Communication for Extended Control
The CE801R is equipped with a serial port for connection to a serial device – such as a touchscreen or barcode scanner – which can be remotely communicated via RS-232 commands from a serial terminal (or PC) connected to the CE801L, facilitating real-time device interaction and data transmission between the local and remote consoles.

Secure Installation for Reliable Power Supply
The power adapter is secured with a screw lock on the DC jack, ensuring a stable power supply while preventing accidental disconnections.

Rack-Mountable Design
The KVM extenders are compact and rack mountable, making them flexible for a space-efficient installation.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	100 m
Cable types supported	Cat6
Rack mounting	Yes
Maximum digital resolution	3840 x 2160 pixels
KVM port selection	Push-buttons
Product colour	Black
Material	Metal
Plug and Play	Yes
LED indicators	Power, Link, Activity, Status
Maximum refresh rate	75 Hz
Electrostatic Discharge (ESD) protection	Yes
HDCP	Yes
HDCP version	2.3
High Dynamic Range (HDR) supported	Yes
Transmitter
Transmitter video port type	HDMI
Transmitter local video port	Yes
Transmitter local video port type	HDMI
Transmitter local keyboard/mouse port type	USB
Transmitter USB Type-B ports quantity	1
Receiver
Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
Receiver local video ports quantity	1
Receiver USB Type-A ports quantity	2
Ports & interfaces
RS-232 ports	2
RJ-45 ports quantity	2
Power
Power consumption (transmitter) (max)	2.59 W
Power consumption (receiver) (max)	1.88 W
DC-in jack	Yes
Weight & dimensions
Transmitter width	8.21 cm
Transmitter depth	12.8 cm
Transmitter height	2.5 cm
Transmitter weight	320 g
Receiver width	8.15 cm
Receiver depth	12.8 cm
Receiver height	2.5 cm
Receiver weight	310 g
Packaging content
AC adapter included	Yes
Cables included	USB Type-A to USB Type-B
Manual	Yes
Mounting bracket(s) included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging data
AC adapter included	Yes
Cables included	USB Type-A to USB Type-B
Manual	Yes
Other features
HDCP	Yes
HDCP version	2.3
