ATEN UCE32100-AT-U KVM extender Transmitter & receiver

4-Port USB 2.0 CAT 5 Extender (up to100m)

Key Features

• True USB 2.0 transparent extension over CAT 5 cabling up to 100 meters
• USB Lossless – Higher compatibility of remote USB devices

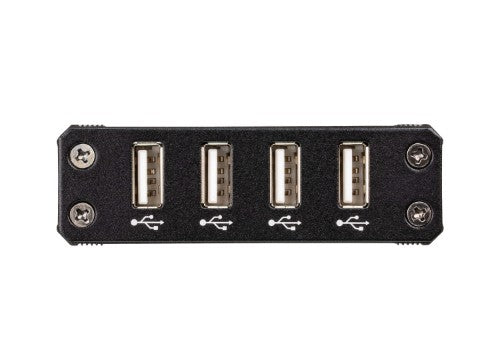

• An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub
• Power supply for remote unit to ensure power delivery to multiple devices at once

Description

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.

A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.

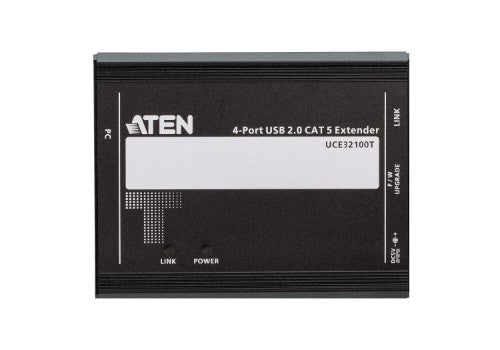

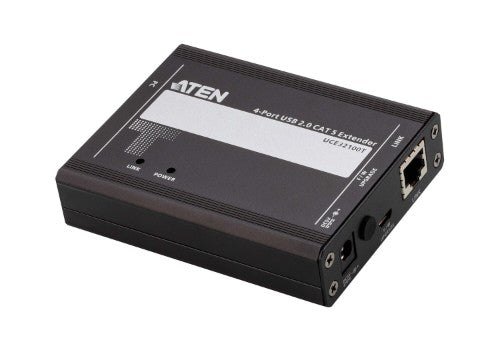

1x UCE32100T USB 2.0 CAT 5 Transmitter

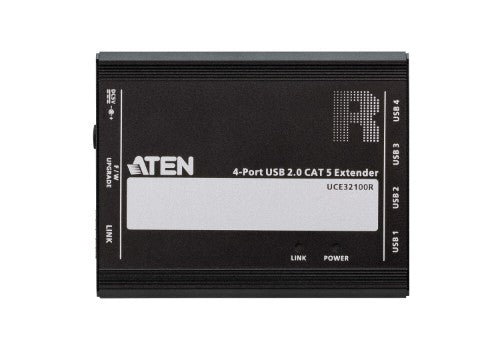

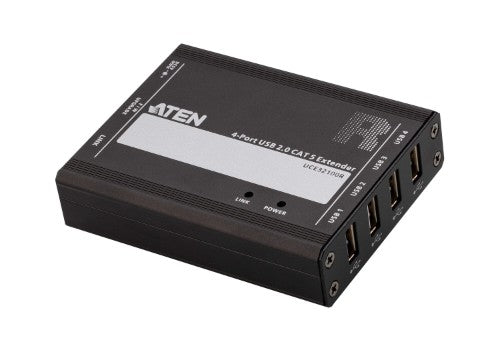

1x UCE32100R USB 2.0 CAT 5 Receiver
1x LIN6-04U1-V1BG USB 2.0 Type-A Male to Type-B Male Cable
1x 0AD8-8005-0MA Power Adapter
1x LIN2-418K-E12G Power Cord
4x Mounting Kit
2x Din Rail
2x DC Jack Lock Kit
2x Rubber Feet Sets
1x User Instructions

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	100 m
Cable types supported	Cat5
Product colour	Black
Material	Metal
LED indicators	Yes
Transmitter
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Receiver
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.21 kg
Technical details
Weight	900 g
Dimensions (WxDxH)	101.5 x 79 x 24.4 mm
Packaging data
Manual	Yes
Quick installation guide	Yes
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.21 kg
Packaging content
Manual	Yes
Quick installation guide	Yes
