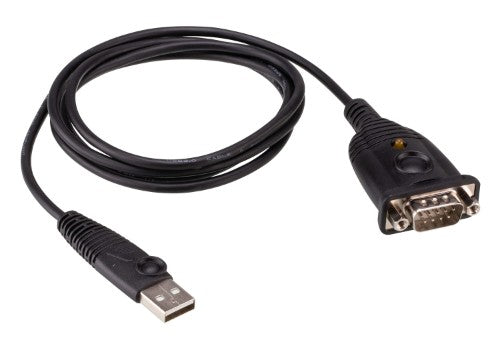

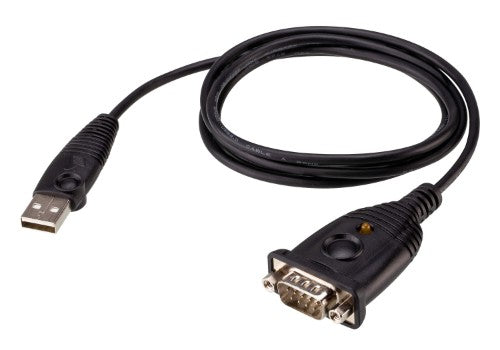

ATEN UC232AF USB Type-A RS-232 Black

USB to RS-232 Adapter (FTDI)

Key Features

• Supports RS-232 serial interface
• Adopts FTDI chip for enhanced device compatibility
• Proven performance in anti-electromagnetic interference (anti-EMI) capability for stable transmission performance
• Full compliance with USB specifications

Description

New Upgrade USB-A to RS-232 Console Adapter
ATEN UC232AF is a 1.2M USB-to-RS232 converter, ideal for laptops/PCs without COM or DB-9 port to connect with serial devices. Equipped with the FTDI chipset, the UC232AF ensures stable serial transmission with operating systems such as Windows, Mac, and Linux, while also maintaining compatibility with legacy operating systems. Plus, its plug-and-play feature ensures hassle-free setup and instant usability.

Stable Performance, Fast Transmission
The UC232AF offers USB 2.0 compliant connectivity and is equipped with robust cables that enhance its anti-EMI capability for faster and more reliable signal transmission, which is up to 921.6 Kbps.

Wide Range of Applications

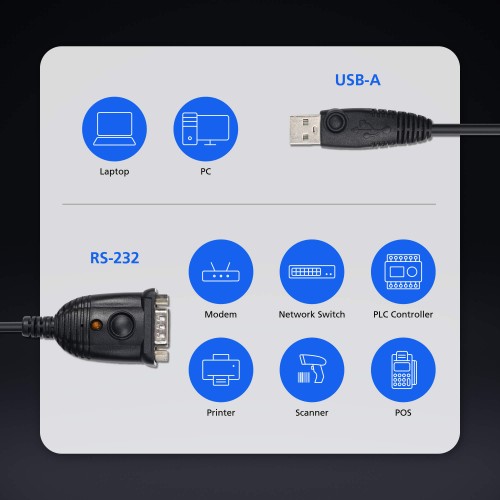

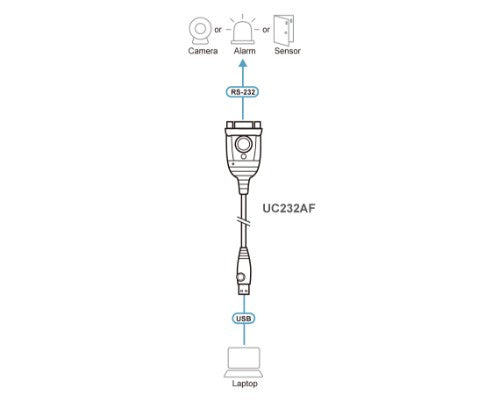

UC232AF allows your PC or laptop to control and communicate with various RS232 serial devices such as modem, network switch, PLC controller, printer, scanner, POS and so on.

Specifications

Ports & interfaces
Connector 1	USB Type-A
Connector 2	RS-232
Cable length	1.2 m
Connector 2 gender	Male
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Performance
Housing material	Plastic
Product colour	Black
LED indicators	Yes
Compatible operating systems	Windows, Mac, and Linux
Country of origin	Thailand
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Relative humidity	0 - 80%
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	34 mm
Depth	65.9 mm
Height	16 mm
Weight	60 g
Packaging data
Package width	42 mm
Package depth	124 mm
Package height	158 mm
Package weight	70 g
Design
Housing material	Plastic
Product colour	Black
LED indicators	Yes
Cable length	1.2 m
Technical details
Housing material	Plastic
Country of origin	Thailand
Other features
Country of origin	Thailand
Logistics data
Country of origin	Thailand
