ATEN HDMI Receiver only over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B)

HDMI HDBaseT-Lite Receiver (4K@40m)(HDBaseT Class B)

Key Features

• Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
• HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
• Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
• HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
• Plug-and-play
• Rack-mountable

Description

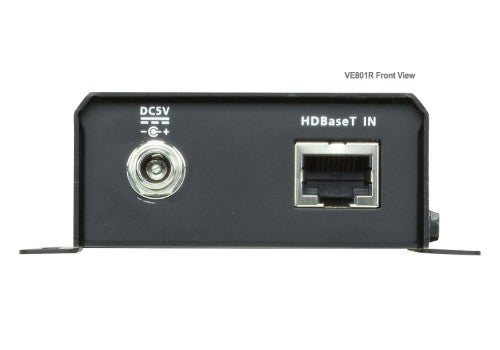

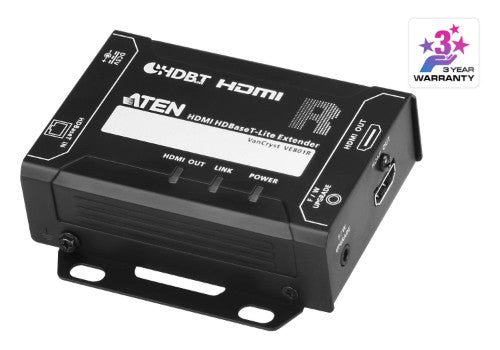

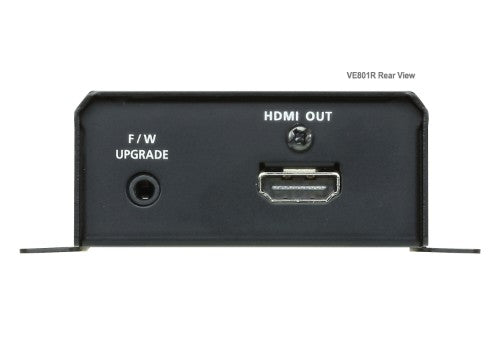

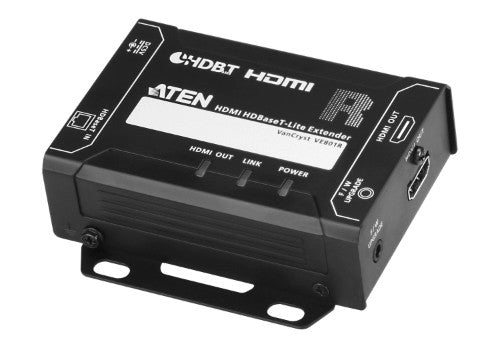

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.

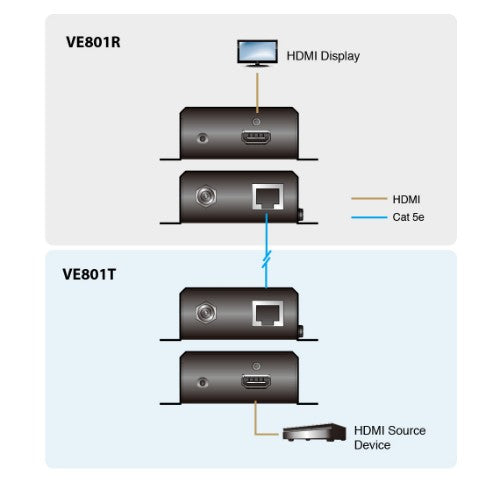

* Compatible HDBaseT Transmitter Units: VE801T

Specifications

Features
Material	Metal
HDCP	Yes
Type	AV receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	70 m
Supported video modes	1080p
LED indicators	Yes
Bandwidth	340 MHz
Product colour	Black
Ports & interfaces
RJ-45 input ports	1
Number of HDMI outputs	1
Ethernet LAN	Yes
DC-in jack	Yes
Power
Power consumption (typical)	4.23 W
Operational conditions
Operating relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Weight & dimensions
Dimensions (WxDxH)	87 x 103 x 30 mm
Weight	250 g
Packaging content
AC adapter included	Yes
Technical details
Compliance certificates	RoHS
