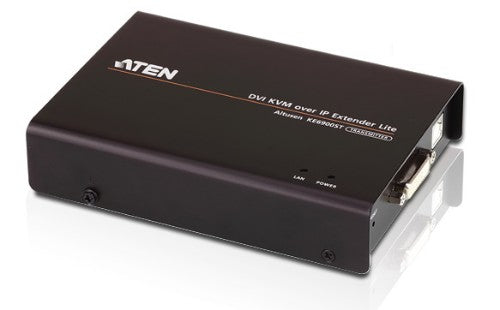

ATEN DVI KVM over IP Lite Extender (Transmitter only)
SAVE 31%

ATEN

ATEN DVI KVM over IP Lite Extender (Transmitter only)

Read reviews
SKU: KE6900ST-AX-U
Your price $992.51
List price $1,439.90 Save $447.39
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

DVI KVM over IP Lite Extender (Transmitter only)

Key Features

  • Advance processor provides visually lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz
  • Flexible connections - allows multiple extender and matrix conections for Multi-Display installations and Video Wall applcations
  • Slim, light, and fanless design
  • Push and Pull - share content instantly by just one click

Description

ATEN is well known for delivering innovative technologies that drive data connectivity and access management. To offer extreme flexibility into any working environment, we announced the new KVM over IP Matrix System that combines KE Series Extenders with the KE Management Software (CCKM). This system is designed to deliver the ultimate in flexibility when extending, controlling and monitoring access to multiple computers, in a multitude of ways, across a network.
1x KE6900ST DVI KVM over IP Transmitter
1x USB DVI-D KVM Cable
4x Foot Pads
1x Power Adapter
1x Mounting Kit
1x User Instructions*

Specifications

Features
Type Transmitter
Connectivity technology Wired
Cable types supported Cat5e
Rack mounting Yes
Maximum digital resolution 1920 x 1200 pixels
Product colour Black
Material Metal
Certification RoHS
LED indicators Yes
Transmitter
Transmitter video port type DVI-D
Transmitter local keyboard/mouse port type USB
RJ-45 ports quantity (transmitter) 1
Power
AC adapter output voltage 5 V
Power consumption (transmitter) (max) 3.35 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 95%
Weight & dimensions
Transmitter width 10.3 cm
Transmitter depth 14.4 cm
Transmitter height 3 cm
Transmitter weight 430 g
Package width 100 mm
Package depth 283 mm
Package height 173 mm
Package weight 1.19 kg
Technical details
Weight 910 g
Harmonized System (HS) code 84733080
Ports & interfaces
USB port type USB Type-B
RS-232 ports 1
Packaging data
AC adapter included Yes
Cables included KVM
Manual Yes
Package width 100 mm
Package depth 283 mm
Package height 173 mm
Package weight 1.19 kg
Packaging content
AC adapter included Yes
Cables included KVM
Manual Yes
Logistics data
Master (outer) case width 292 mm
Master (outer) case length 517 mm
Master (outer) case height 194 mm
Master (outer) case gross weight 6.6 kg
Products per master (outer) case 5 pc(s)
Master (outer) case net weight 4.55 kg
Harmonized System (HS) code 84733080
Brand
ATEN
SKU
KE6900ST-AX-U
