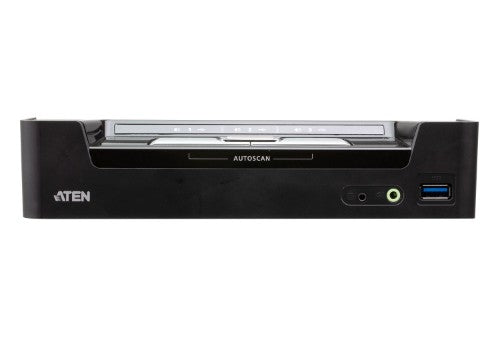

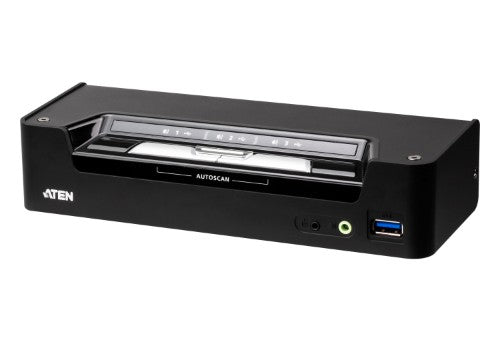

ATEN CS1953-AT-U KVM switch Black

3-Port USB-C DisplayPort Hybrid KVMP Switch

Key Features

• One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers and one USB-C device
• Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Provides USB Power Delivery 3.0 for USB-C device charging up to 45W
• Computer selection via pushbuttons, hotkeys, mouse, and remote port selector

Description

The CS1953, the industry’s first 3-port USB-C DisplayPort Hybrid KVMP™ Switch, carries out ergonomic desktop style with the power of a KVM and the popularity of USB-C connectivity to facilitate professional and commercial workstation applications with better mobility, so as to enhance total desktop productivity. With the DisplayPort monitor set up on your desktop and access to up to two PCs via DisplayPort and a laptop (or other mobile device) via USB-C, you can expect a rich experience with outstanding 4K visual clarity, as well as fast switching between multiple computers and mobile flexibility.

USB-C for Space-Cost Efficiency
The CS1953 boasts the increasingly popular USB-C interface to facilitate a plug-n-play connection to mobile devices (laptops, tablets, smartphones) without going through a docking station, making it a true space and money saver for your desktop workspace.

DisplayPort for Exceptional AV Performance
The CS1953 supports DisplayPort connectivity between up to two computers, a monitor, and a mobile device (over USB-C). It brings 4K superior viewing quality to your desktop, revealing all your visual content, text and numerical digits in outstanding precision.

Plug In, Power On
By enabling the USB-C device power delivery 3.0 standard, your mobile devices start charging upon connection to the CS1953, elevating your desktop productivity with even quicker mobility.

Extended Desktop for Productive Multitasking
Taking advantage of DisplayPort MST (Multi-Stream Transport) support, you can daisy-chain two monitors to form an extended desktop for productive multitasking on a dual-display workspace setup.

Flexible Port Switching, Any Way You Like
Port switching is flexible and you can choose from using the pushbuttons, mouse, hotkeys and remote port selector, whichever works best for you.

Specifications

Video
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Ports & interfaces
Console USB ports quantity	2

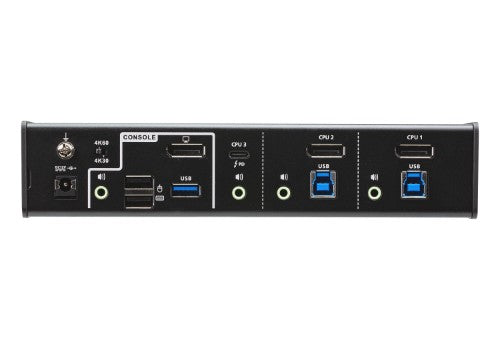

Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB connector type	USB Type-A, USB Type-B
Number of microphone inputs	1
DisplayPorts quantity	2
Number of computers controlled	3
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	4
DC-in jack	Yes
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Performance
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Scan interval	1,5,99 s
Design
Product colour	Black
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Housing material	Metal, Plastic
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	5.78 W
System requirements
Windows operating systems supported	Yes
Technical details
USB hub	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	206.3 mm
Depth	75.4 mm
Height	44 mm
Weight	960 g
Package width	95 mm
Package depth	265 mm
Package height	220 mm
Package weight	1.33 kg
Packaging data
Package width	95 mm
Package depth	265 mm
Package height	220 mm
Package weight	1.33 kg
Packaging content
Quick installation guide	Yes
Manual	Yes
Other features
Push button	Yes
Hot keys	Yes
