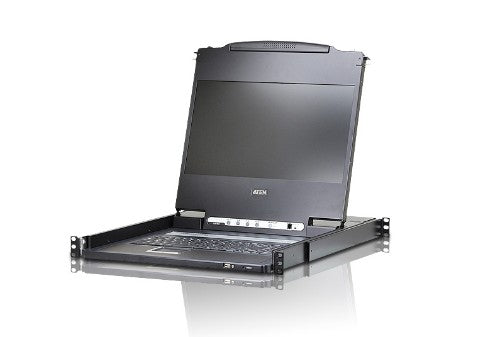

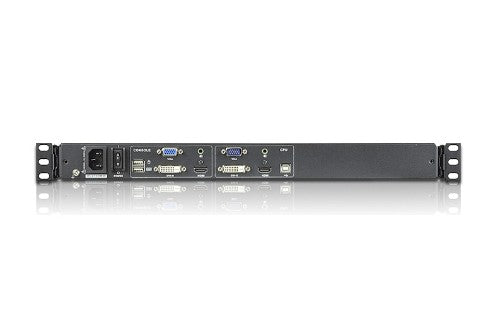

ATEN CL6700MW KVM switch Rack mounting Black

ATEN

ATEN CL6700MW KVM switch Rack mounting Black

Read reviews
SKU: CL6700MW-ATA-AU
Your price $2,169.20
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

DVI Full HD LCD Console

Description

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.

Specifications

Video
HD type Full HD
Video bandwidth 60 Hz
Maximum resolution 1920 x 1080 pixels
Ports & interfaces
Console ports 3.5mm headphone, DVI-I, USB A, VGA (D-Sub)
USB connector type USB Type-A, USB Type-B
Number of computers controlled 1
Keyboard port type USB
Mouse port type USB
Video port type DVI-D/HDMI/VGA
VGA (D-Sub) ports quantity 2
HDMI ports quantity 2
DVI-D ports quantity 2
USB 2.0 Type-B ports quantity 1
Performance
DDC2B support Yes
HD type Full HD
Video bandwidth 60 Hz
Hot-Plug support Yes
Maximum resolution 1920 x 1080 pixels
Design
Product colour Black
Rack mounting Yes
LED indicators Yes
Rack capacity 1U
Housing material Metal
Display
Built-in display Yes
Display LCD
Display diagonal 43.9 cm (17.3")
Power
Input current 1 A
Power source AC
AC input frequency 50 - 60 Hz
Power consumption (typical) 19.4 W
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 589.2 mm
Depth 480 mm
Height 44 mm
Weight 11.6 kg
Package width 668 mm
Package depth 718 mm
Package height 135 mm
Package weight 14.7 kg
Packaging data
Package width 668 mm
Package depth 718 mm
Package height 135 mm
Package weight 14.7 kg
Packaging content
Manual Yes
Brand
ATEN
SKU
CL6700MW-ATA-AU
