ATEN CL3100NX-ATA-AU rack console 47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U

epth VGA Single Rail LCD Console, can be mounted up to a depth of 42cm to 72cm and LCD panel with 1366 x 768 resolution, AU

Key Features

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
• 18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
• Supports an external console with USB / VGA connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz

Description

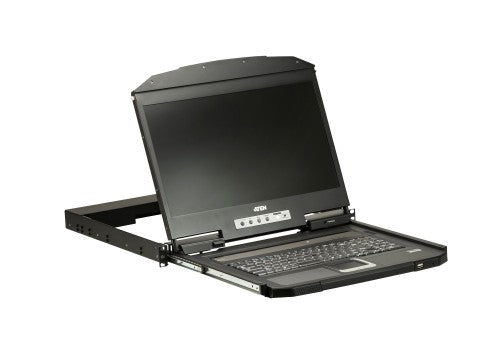

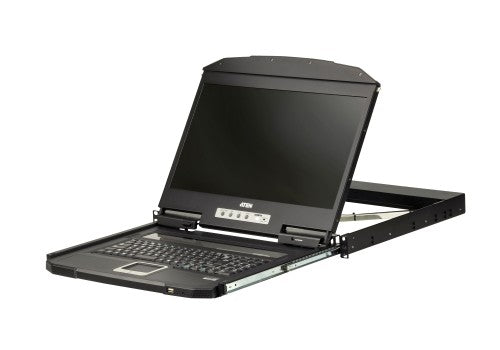

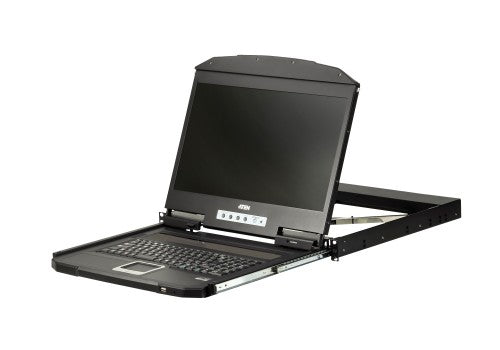

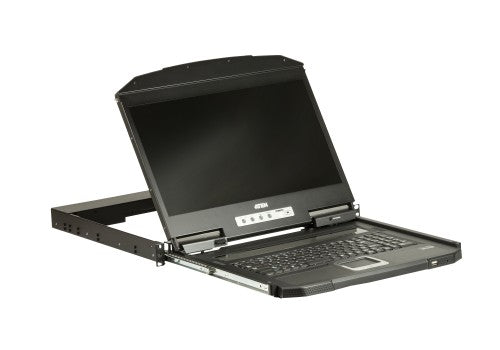

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

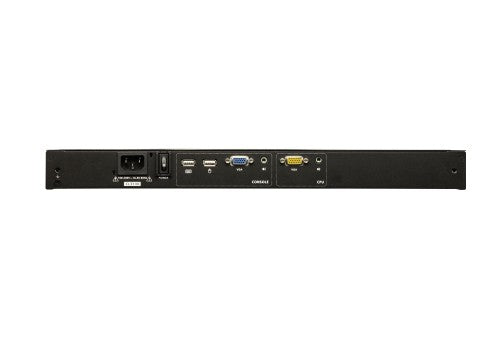

The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers.

With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

Specifications

Display
Response time	5 ms
Display number of colours	16.78 million colours
Display diagonal	47 cm (18.5")
Viewing angle, vertical	160°
Viewing angle, horizontal	170°
Pixel pitch	0.3 x 0.3 mm
Display type	LCD
Display resolution	1366 x 768 pixels
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Technical details
Key lock	Yes
Number of computers controlled	1
On/off switch	Yes
LED indicators	Yes
Rack capacity	1U
Operating relative humidity (H-H)	0 - 80%
Material	Metal, Plastic
Hot-Plug support	Yes
Product colour	Black
Cables included	AC, Audio (3.5mm), USB, VGA
Built-in KVM switch	Yes
Compliance certificates	RoHS
Ports & interfaces
Video port type	VGA
Mouse port type	USB
Keyboard port type	USB
Keyboard
Hot keys	Yes
Keyboard number of keys	105
Built-in touchpad	Yes
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
Power supply type	AC
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Certificates
Certification	UL 60950-1, CAN/CSA
Weight & dimensions
Weight	9.07 kg
Width	477 mm
Height	480.6 mm
Depth	42.8 mm
Packaging content
Manual	Yes
Rack mount kit	Yes
Cables included	AC, Audio (3.5mm), USB, VGA
