ATEN CL1308N-ATA-AU KVM switch Rack mounting Black
SAVE 17%

ATEN

ATEN CL1308N-ATA-AU KVM switch Rack mounting Black

Read reviews
SKU: CL1308N-ATA-AU
Your price $1,756.15
List price $2,112.01 Save $355.86
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

8-Port 19" LCD KVM Switch (USB - PS/2 VGA)

Key Features

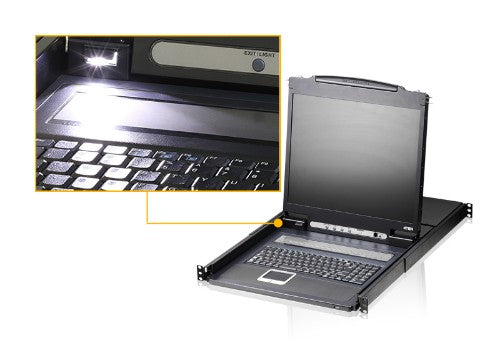

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 19" LED-backlit LCD panel
  • A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches
  • USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere

Description

With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.
1x CL1308 LCD KVM Switch with Rack Mount Kit
2x 2L-5202U Custom KVM Cable Cable (1.8m)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions

Specifications

Ports & interfaces
Console ports VGA (D-Sub)
Number of computers controlled 128
Keyboard port type PS/2
Mouse port type USB
Video port type VGA
VGA (D-Sub) ports quantity 8
Performance
DDC2B support Yes
Firmware upgradeable Yes
HD type WUXGA
Video bandwidth 60 Hz
Hot-Plug support Yes
Maximum resolution 1920 x 1200 pixels
Scan interval 1,255 s
Design
Product colour Black
Rack mounting Yes
Push button Yes
LED indicators Yes
Hot keys Yes
Rack capacity 1U
Housing material Metal, Plastic
Display
Built-in display Yes
Display LCD
On Screen Display (OSD) Yes
Display diagonal 48.3 cm (19")
Power
Input current 1 A
Power source AC
AC input frequency 50 - 60 Hz
Power consumption (typical) 22 W
Input voltage 100 - 240 V
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Video
HD type WUXGA
Video bandwidth 60 Hz
Maximum resolution 1920 x 1200 pixels
Sustainability
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 483 mm
Depth 689.2 mm
Height 44 mm
Weight 12.7 kg
Package width 668 mm
Package depth 833 mm
Package height 135 mm
Package weight 16.1 kg
Packaging data
Package width 668 mm
Package depth 833 mm
Package height 135 mm
Package weight 16.1 kg
Packaging content
Rack mount kit Yes
Cables included AC, KVM
Quick installation guide Yes
Manual Yes
Technical details
Compliance certificates RoHS
Other features
Push button Yes
Hot keys Yes
Brand
ATEN
SKU
CL1308N-ATA-AU
