ATEN CE920-ATA-U KVM extender Transmitter & receiver

USB DisplayPort HDBaseT2.0 KVM Extender

Key Features

• Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
• EDID Buffer for smooth power-up and the highest quality display
• Long distance with superior video quality
• HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)
• HDBaseT™ Long-Reach mode up to 1080P @ 150m
• Supports individual 2-channel stereo audio and USB 2.0 full speed ports

Description

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

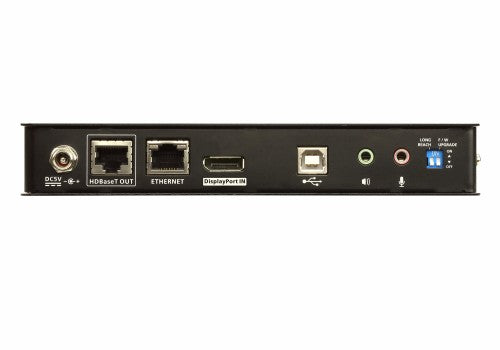

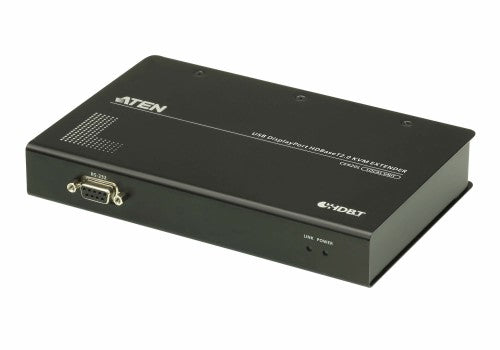

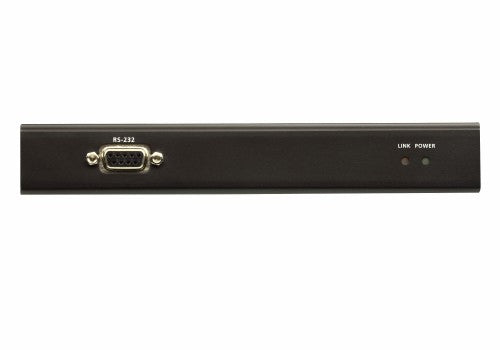

1x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit)

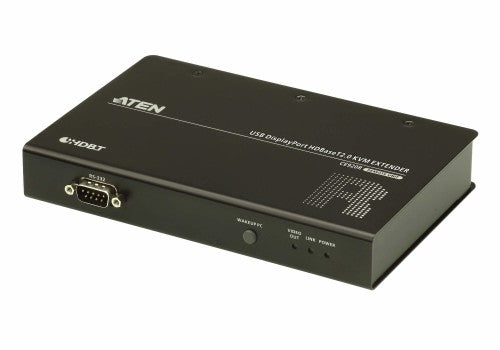

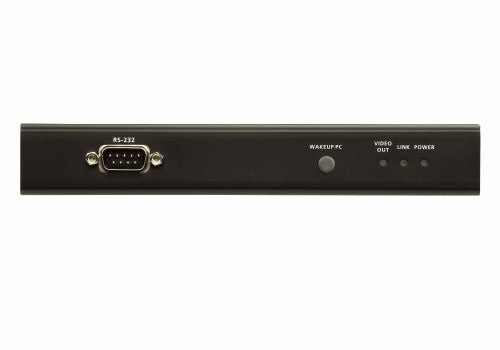

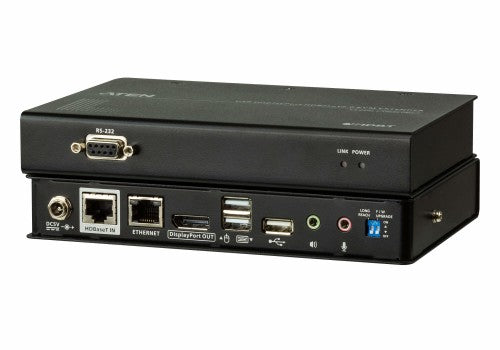

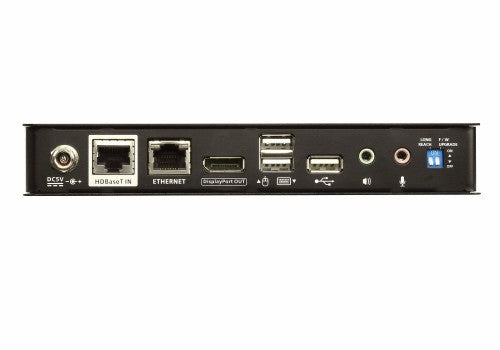

1x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-0205-21DG Microphone Cable
1x LIN5-0205-21CG Speaker Cable
1x LIN6-04U1-V1BG USB Type-A to Type-B Cable
1x LIN5-20K1-K13G DisplayPort Cable
2x Mounting Kits
2x 0AD8-1F05-30M1 Power Adapters
1x User Instructions

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	150 m
Cable types supported	Cat5e, Cat6, Cat6a
Rack mounting	Yes
Maximum digital resolution	4096 x 2160 pixels
Product colour	Black
Material	Metal
USB 2.0 ports quantity	4
USB data transfer rates	480 Mbit/s
LED indicators	Yes
Transmitter
Transmitter video port type	DisplayPort
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Receiver
Receiver local video port type	DisplayPort
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Power
AC adapter output voltage	5 V
Power consumption (transmitter) (max)	3.99 W
Power consumption (receiver) (max)	6.74 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Transmitter width	18.2 cm
Transmitter depth	12.2 cm
Transmitter height	2.87 cm
Transmitter weight	630 g
Receiver width	18.2 cm
Receiver depth	12.2 cm
Receiver height	2.87 cm
Receiver weight	640 g
Package width	98 mm
Package depth	325 mm
Package height	210 mm
Package weight	2.18 kg
Technical details
Weight	1.95 kg
Ports & interfaces
PC Audio in	Yes
PC Audio out	Yes
Packaging data
AC adapter included	Yes
Cables included	DisplayPort
Manual	Yes
Package width	98 mm
Package depth	325 mm
Package height	210 mm
Package weight	2.18 kg
Packaging content
AC adapter included	Yes
Cables included	DisplayPort
Manual	Yes
Mounting bracket(s) included	Yes
