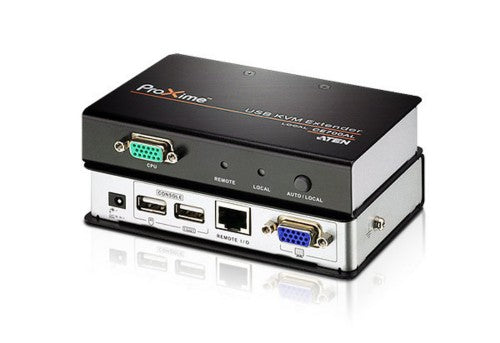

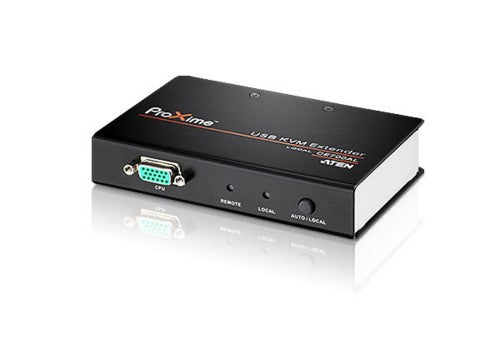

ATEN CE700A-AT-U KVM extender Transmitter & receiver
SAVE 6%

ATEN

ATEN CE700A-AT-U KVM extender Transmitter & receiver

Read reviews
SKU: CE700A-AT-U
Your price $400.13
List price $427.83 Save $27.70
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

USB VGA Cat 5 KVM Extender (1280 x 1024@150m)

Key Features

  • Cat 5e cable connects the Local and Remote Units - up to 150m apart
  • Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  • High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
  • Automatic gain control - adjusts signal strength to compensate for distance

Description

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

1x CE700AL USB KVM Extender (Local Unit)
1x CE700AR USB KVM Extender (Remote Unit)
2x 0AD6-1605-09EG Power Adapters
1x USB KVM Cable (1.8m)
1x Mounting Kit
1x User Instructions

Specifications

Features
Type Transmitter & receiver
Connectivity technology Wired
Maximum transfer distance 150 m
Cable types supported Cat5e
Rack mounting Yes
Product colour Black, Grey
Material Metal
LED indicators Link, Power
Supported resolutions 1920 x 1200, 1600 x 1200, 1280 x 1024
Transmitter
Transmitter video port type VGA
Transmitter local keyboard/mouse port type USB
RJ-45 ports quantity (transmitter) 1
Receiver
Receiver local video port type VGA
Receiver local keyboard/mouse port type USB
RJ-45 ports quantity (receiver) 1
Power
AC adapter output voltage 5.3 V
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Storage relative humidity (H-H) 0 - 80%
Weight & dimensions
Transmitter width 12.7 cm
Transmitter depth 8.65 cm
Transmitter height 2.5 cm
Transmitter weight 330 g
Receiver width 12.7 cm
Receiver depth 8.14 cm
Receiver height 2.5 cm
Receiver weight 320 g
Package width 100 mm
Package depth 283 mm
Package height 173 mm
Package weight 1.41 kg
Technical details
Weight 1.14 kg
Packaging data
Manual Yes
Quick installation guide Yes
Package width 100 mm
Package depth 283 mm
Package height 173 mm
Package weight 1.41 kg
Packaging content
Manual Yes
Quick installation guide Yes
Brand
ATEN
SKU
CE700A-AT-U
