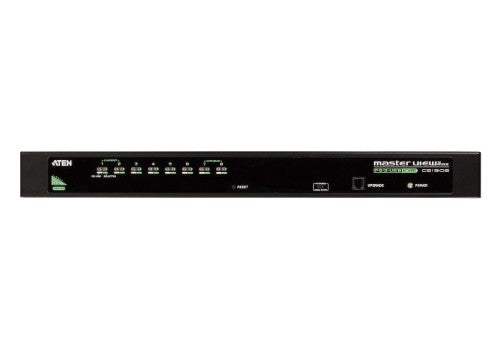

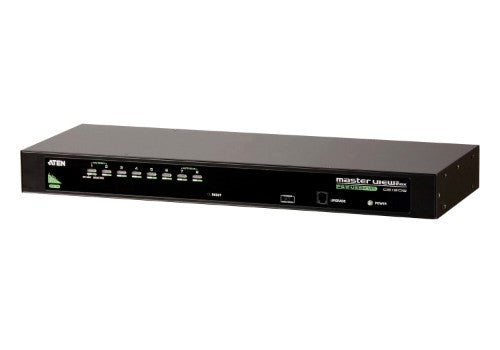

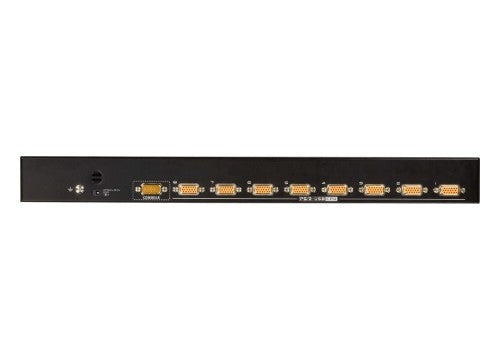

ATEN 8-Port USB - PS/2 VGA KVM Switch
SAVE 9%

ATEN

ATEN 8-Port USB - PS/2 VGA KVM Switch

Read reviews
SKU: CS1308-AT-U
Your price $409.27
List price $449.22 Save $39.95
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

8-Port USB - PS/2 VGA KVM Switch

Key Features

  • One USB-PS/2 console controls 8 computers; Cascade up to 2 levels - control up to 64 computers
  • Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

Description

The CS1308 is a 8-Port USB-PS/2 KVM switch (Dual Interface). You're able to control up to 64 Computers from a single console (keyboard, mouse, and monitor).
8 additional switches can be cascaded (2-Level) that's why the total number of connected computers can be up to 64 computers, that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and Computer/PC/Server (Dual Interface.
1x CS1308 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Specifications

Ports & interfaces
Console ports VGA (D-Sub)
Number of computers controlled 64
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
VGA (D-Sub) ports quantity 8
DC-in jack Yes
Performance
DDC2B support Yes
Firmware upgradeable Yes
HD type QXGA
Maximum resolution 2048 x 1536 pixels
Scan interval 1,255 s
Design
Product colour Black
Rack mounting Yes
Push button Yes
Hot keys Yes
Cascadable Yes
Rack capacity 1U
Housing material Metal
Display
Built-in display No
Power
Power source DC
Power consumption (typical) 5 W
Input voltage 5.3 V
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Other operating systems supported Yes
Video
HD type QXGA
Maximum resolution 2048 x 1536 pixels
Technical details
Cascadable Yes
Compliance certificates RoHS
Sustainability
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 161.3 mm
Depth 437.2 mm
Height 44 mm
Weight 1.89 kg
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 2.69 kg
Packaging data
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 2.69 kg
Packaging content
Rubber feet Yes
Rack mount kit Yes
Quick installation guide Yes
AC adapter included Yes
Other features
Push button Yes
Hot keys Yes
Logistics data
Master (outer) case width 375 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 8.7 kg
Products per master (outer) case 3 pc(s)
Master (outer) case net weight 6.72 kg
Harmonized System (HS) code 85176200
Brand
ATEN
SKU
CS1308-AT-U
