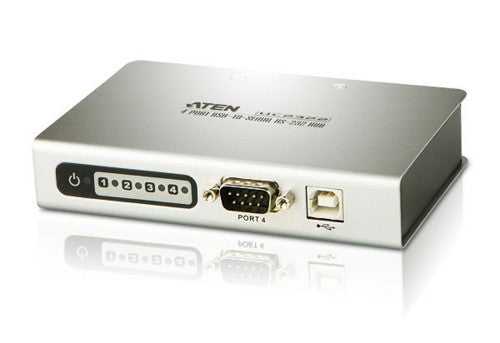

ATEN 4-Port USB-to-Serial RS-232 Hub

ATEN

ATEN 4-Port USB-to-Serial RS-232 Hub

Read reviews
SKU: UC2324-AT
Your price $194.70
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

Currently out of stock

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

4-Port USB-to-Serial RS-232 Hub

Key Features

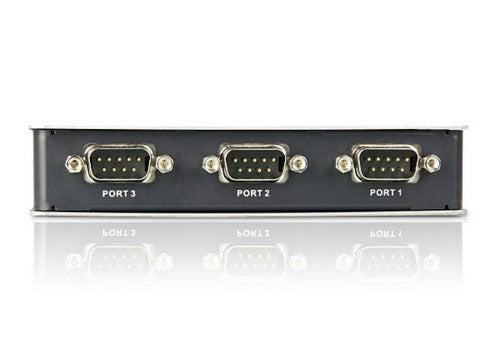

  • Easy way to add 4 RS-232 serial ports
  • Fully compliant with USB 1.1; USB 2.0 compatible
  • Supports automatic handshake mode
  • Up to 115.2 Kbps data transfer rate for each serial port

Description

The ATEN USB-to-Serial RS-232 Hub provides an external plug-and-play RS-232 serial connection for computers, notebooks, laptops, and handheld computing devices that support the USB specification. It provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications.
1x USB-to-Serial Hub
1x USB Cable
1x Installation Disk
1x User Instructions

Specifications

Ports & interfaces
USB 2.0 ports quantity 1
Host interface USB 2.0 Type-B
VGA (D-Sub) ports quantity 4
DC-in jack Yes
Performance
Product colour Metallic
LED indicators Yes
Housing material Metal
Hub interfaces VGA
Power
Power consumption (typical) 0.4 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 80 mm
Depth 125 mm
Height 25 mm
Weight 391 g
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 594 g
Design
Product colour Metallic
LED indicators Yes
Packaging data
Quantity per pack 1 pc(s)
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 594 g
Technical details
Harmonized System (HS) code 84719000
Products per master (outer) case 20 pc(s)
Master (outer) case width 315 mm
Master (outer) case gross weight 12.6 kg
Master (outer) case length 490 mm
Master (outer) case height 338 mm
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Products per master (outer) case 20 pc(s)
Master (outer) case width 315 mm
Master (outer) case gross weight 12.6 kg
Master (outer) case length 490 mm
Master (outer) case height 338 mm
Master (outer) case net weight 7.82 kg
Harmonized System (HS) code 84719000
Brand
ATEN
SKU
UC2324-AT
