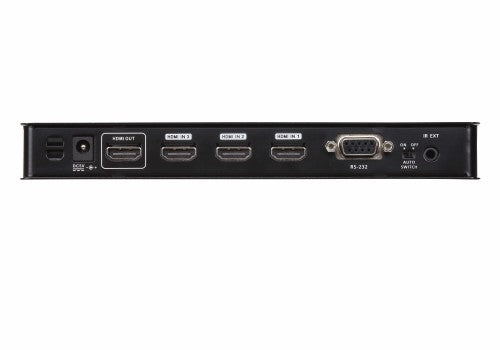

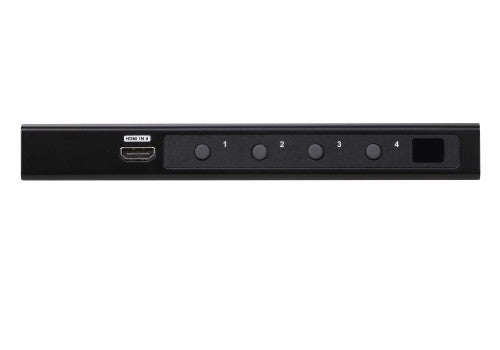

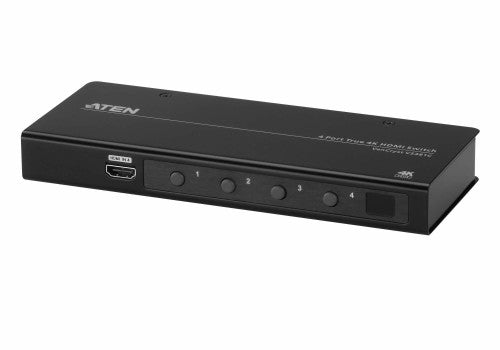

ATEN 4-Port True 4K HDMI Switch

4-Port True 4K HDMI Switch

Key Features

• Allows up to 4 HDMI sources to be connected to one HDMI display
• HDMI 2.0(3D, Deep Color, 4K); HDCP 2.2 compliant
• Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4)
• Supports HDR
• Supports IR extension
• Built-in bi-directional RS-232 serial port for high-end system control
• Auto switching modes for auto port selection
• LED indication of source device status
• Plug-and-play

Description

The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.

Engineered to meet today's demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
1x VS481C 4-Port True 4K HDMI Switch
1x 0AD6-1005-10AG Power Adapter
1x 2XRT-0101G IR Remote Control Unit
1x LIN5-19V2-V21G HDMI Cable
1x User Instructions

Specifications

Ports & interfaces
Video port type	HDMI
RS-232 ports	1
HDMI version	2.0
HDMI ports quantity	5
Number of HDMI outputs	1
HDMI in	4
DC-in jack	Yes
Features
HD type	HD
3D	Yes
Colour depth	12 bit
Output impedance	100 Ω
Input impedance	100 Ω
Product colour	Black
Plug and Play	Yes
Maximum resolution	4096 x 2160 pixels
Maximum refresh rate	60 Hz
Maximum operating distance	3 m
Material	Metal
LED indicators	Yes
HDCP	Yes
Bandwidth	18 Gbit/s
Bandwidth	600 MHz
HDCP version	2.2
Consumer Electronics Control (CEC) support	Yes
Power
Power consumption (typical)	0.924 W
Weight & dimensions
Width	82.1 mm
Weight	654 g
Height	25 mm
Depth	200 mm
Packaging data
Package width	59 mm
Package height	160 mm
Package depth	239 mm
Package weight	822 g
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%
Technical details
Harmonized System (HS) code	85176990
Logistics data
Master (outer) case gross weight	8.57 kg
Products per master (outer) case	10 pc(s)
Master (outer) case width	315 mm
Master (outer) case length	490 mm
Master (outer) case height	178 mm
Master (outer) case net weight	6.54 kg
Harmonized System (HS) code	85176990
