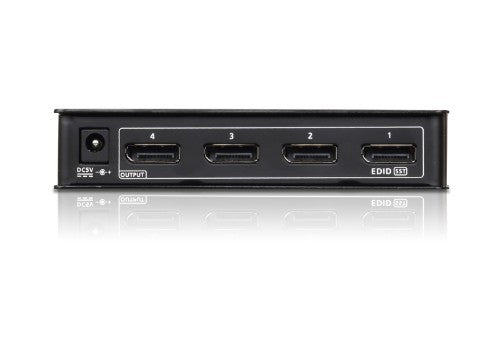

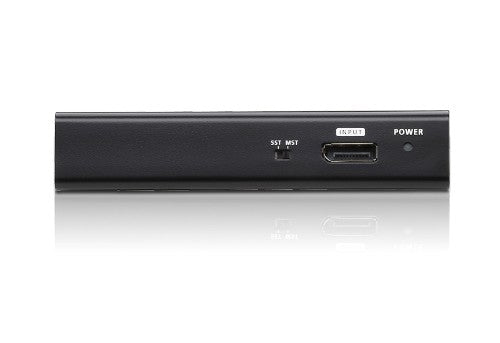

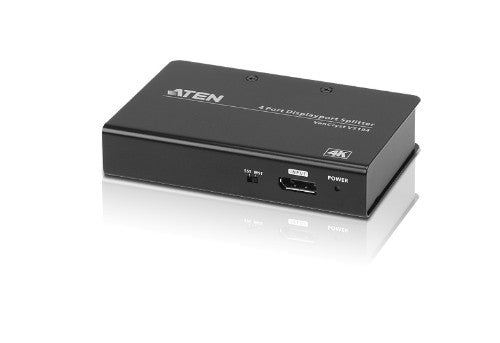

ATEN 4-Port 4K DisplayPort 1.2a Splitter

ATEN

ATEN 4-Port 4K DisplayPort 1.2a Splitter

Read reviews
SKU: VS194-AT-U
Your price $573.10
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

4-Port 4K DisplayPort 1.2a Splitter

Key Features

  • Connects one DisplayPort source to four DisplayPort monitors
  • Supports DisplayPort 1.2a; HDCP 1.3
  • Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
  • Supports MST/ Extend Mode and SST/ Split Mode*MST/ Extend Mode:Extend a video source across 2 displays with a maximum resolution of 4K.SST/ Split Mode: Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor

Description

The VS194 4-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to two or four DisplayPort displays. The VS194 can not only split but also expand DisplayPort audio/video signal on two or four DisplayPort monitors which is ideal for any multi-display application.
1x VS194 4-port True 4K DisplayPort Splitter
1x 0AD6-1005-26EG Power Adapter
1x User Instructions

Specifications

Ports & interfaces
Video ports quantity 4
Video port type DisplayPort
Video out 4x DisplayPort
DC-in jack Yes
Features
Housing material Metal
LED indicators Yes
Maximum resolution 4096 x 2160 pixels
HDCP Yes
Product colour Black
HD type 4K Ultra HD
HDCP version 1.3
Power
Power consumption (typical) 3.36 W
Weight & dimensions
Weight 420 g
Width 80 mm
Depth 125 mm
Height 25 mm
Package weight 600 g
Package depth 239 mm
Package width 59 mm
Package height 160 mm
Packaging data
Package weight 600 g
Package depth 239 mm
Package width 59 mm
Package height 160 mm
Packaging content
Manual Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 0 - 80%
Video
Maximum resolution 4096 x 2160 pixels
HDCP Yes
Colour
Product colour Black
Indication
LED indicators Yes
Technical details
Housing material Metal
Video out 4x DisplayPort
Package width 59 mm
Package height 160 mm
Logistics data
Master (outer) case width 315 mm
Master (outer) case length 490 mm
Master (outer) case height 338 mm
Master (outer) case gross weight 13.2 kg
Products per master (outer) case 20 pc(s)
Master (outer) case net weight 8.4 kg
Harmonized System (HS) code 85176990
Brand
ATEN
SKU
VS194-AT-U
