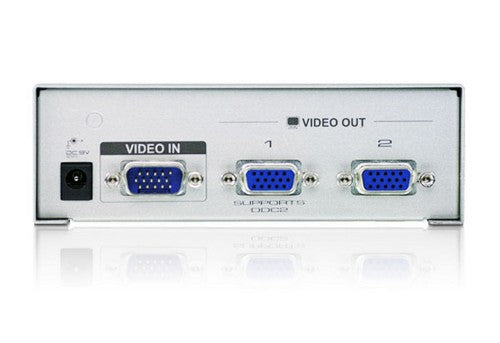

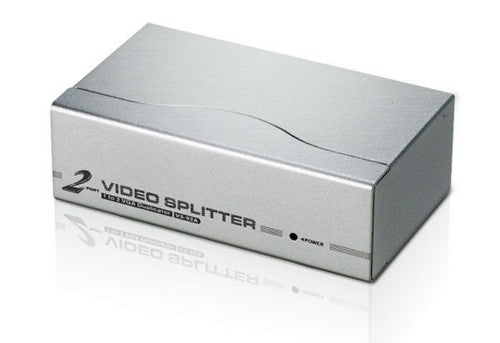

ATEN 2-Port VGA Video Splitter (350 MHz)

ATEN

ATEN 2-Port VGA Video Splitter (350 MHz)

Read reviews
SKU: VS92A-AT-U
Your price $57.75
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

1920 x 1440@60Hz, 350 MHz, VGA, DC 9V, 130x75.1x44 mm

Key Features

  • One video input to 2 video outputs
  • Cascadable to 3 levels - provides up to 8 video signals
  • Supports 350 MHz bandwidth
  • Long-distance transmission - up to 30 m
  • Superior video quality - 1920 x 1440@60Hz
  • DDC, DDC2, DDC2B Compatible (Port 1 only)
  • Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
  • All metal casing

Description

The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.

Specifications

Ports & interfaces
Video ports quantity 3
Video port type VGA
Video out 2x VGA
DC-in jack Yes
Features
Housing material Metal
Maximum refresh rate 60 Hz
LED indicators Power
Maximum resolution 1920 x 1440 pixels
Maximum operating distance 30 m
Product colour Silver
Bandwidth 350 MHz
Power
Power consumption (typical) 1.15 W
AC input voltage 9 V
Weight & dimensions
Weight 481 g
Width 75.1 mm
Depth 130 mm
Height 44 mm
Package weight 130 g
Package depth 239 mm
Package width 59 mm
Package height 160 mm
Packaging data
Package weight 130 g
Package depth 239 mm
Package width 59 mm
Package height 160 mm
Quantity per pack 1 pc(s)
Packaging content
AC adapter included Yes
Manual Yes
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Video
Maximum refresh rate 60 Hz
Maximum resolution 1920 x 1440 pixels
Bandwidth 350 MHz
Colour
Product colour Silver
Indication
LED indicators Power
Technical details
Housing material Metal
Video out 2x VGA
Package width 59 mm
Package height 160 mm
Maximum operating distance 30 m
Logistics data
Quantity per pack 1 pc(s)
Master (outer) case width 315 mm
Master (outer) case length 490 mm
Master (outer) case height 338 mm
Master (outer) case gross weight 13.2 kg
Products per master (outer) case 20 pc(s)
Master (outer) case net weight 9.62 kg
Harmonized System (HS) code 85176990
Brand
ATEN
SKU
VS92A-AT-U
