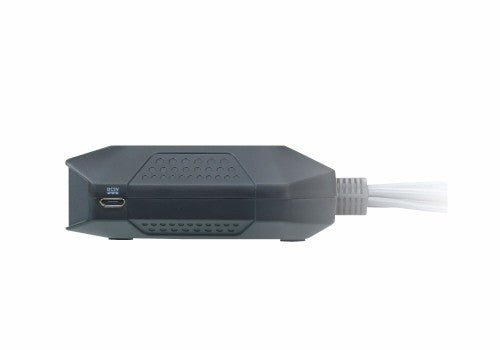

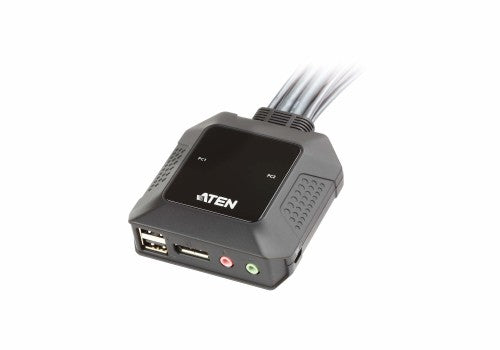

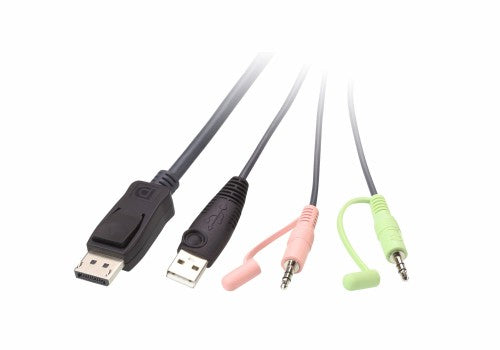

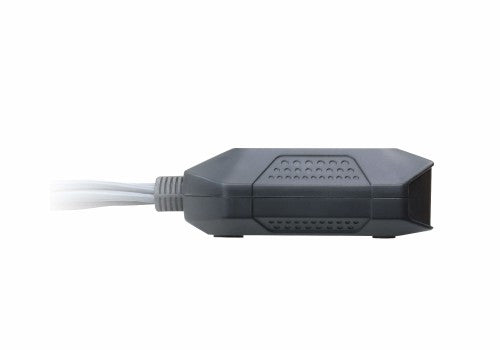

ATEN 2-Port USB DisPlayPort Cable KVM Switch

ATEN

ATEN 2-Port USB DisPlayPort Cable KVM Switch

Read reviews
SKU: CS22DP-AT
Your price $123.75
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

2-Port USB DisPlayPort Cable KVM Switch

Key Features

  • One KVM console controls two USB DisplayPort computers
  • Superior video quality – up to 4096 x 2160 @ 30Hz
  • Multiplatform support – Windows, Mac, and Linux
  • Bus-powered design

Description

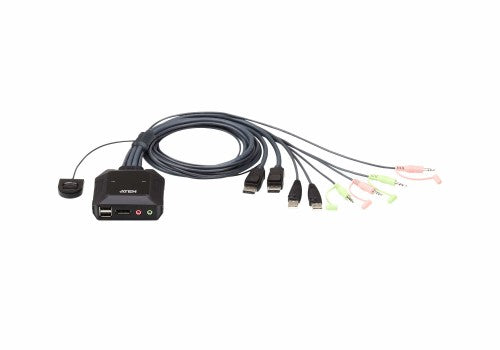

The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.
1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions

Specifications

Ports & interfaces
Console USB ports quantity 2

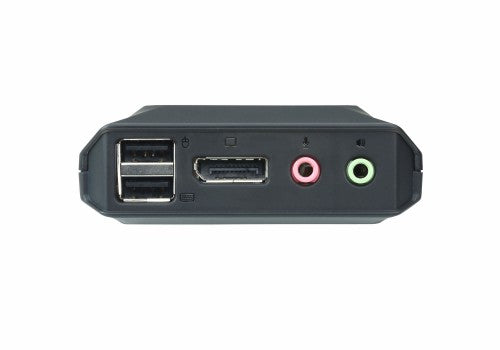

Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB connector type Micro-USB B, USB Type-A
Number of microphone inputs 1
DisplayPorts quantity 1
DisplayPort version 1.1
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
Audio connections Yes
USB 2.0 ports quantity 2
Headphone outputs 1
Cable length 1.2 m
HDCP Yes
Network
Ethernet LAN No
Performance
HDCP Yes
HD type 4K Ultra HD
Video bandwidth 30 Hz
Hot-Plug support Yes
Maximum resolution 4096 x 2160 pixels
Cable length 1.2 m
Design
Wired remote switch Yes
Remote switch cable length 1.8 m
Product colour Black
Cable length 1.2 m
Rack mounting No
LED indicators Yes
Housing material Plastic
Display
Built-in display No
Power
Power source DC
USB powered Yes
Power consumption (typical) 1.38 W
Input voltage 5 V
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Video
HD type 4K Ultra HD
Video bandwidth 30 Hz
Maximum resolution 4096 x 2160 pixels
Sustainability
Sustainability certificates RoHS
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 84.2 mm
Depth 83.4 mm
Height 30.4 mm
Weight 360 g
Package width 55 mm
Package depth 155 mm
Package height 225 mm
Package weight 435 g
Packaging data
Package width 55 mm
Package depth 155 mm
Package height 225 mm
Package weight 435 g
Packaging content
Manual Yes
Technical details
Sustainability certificates RoHS
Compliance certificates RoHS
Logistics data
Master (outer) case width 328 mm
Master (outer) case length 389 mm
Master (outer) case height 330 mm
Master (outer) case gross weight 9.33 kg
Products per master (outer) case 20 pc(s)
Master (outer) case net weight 7.2 kg
Harmonized System (HS) code 85176200
Brand
ATEN
SKU
CS22DP-AT
