ATEN 2-Port USB 4K HDMI Dual-Display KVMP Switch (Cables included)

2-Port USB 4K HDMI Dual-Display KVMP Switch (Cables included), US

Key Features

• Single USB keyboard and mouse control up to 2 PCs, simplifying cables and reducing the cost of multi-computer setups
• Superior video quality – up to 4096 x 2160 @ 60 Hz, 5120 x 1440 @ 60 Hz
• Computer Selection via pushbuttons, remote port selector, hotkeys, and mouse wheel
• Supports Video DynaSync™ – Exclusive ATEN technology ensures optimal resolution and consistent window layout during port switching for smooth multi-system workflows
• Multiplatform support – Windows, Mac, and Linux
• USB peripheral sharing
• All HDMI / USB cables and power adapter included – for hassle-free installation, no extra purchases needed
• Power-on detection automatically switches to the next active computer
• Supports most gaming / multimedia keyboards and multifunction mice with emulation or bypass
• Auto-scan function allows continuous monitoring of connected systems
• Plug and play – no software installation or configuration required
• Supports hot-plugging
• Firmware upgradeable

Description

The CS742H is a 2-port KVM switch designed to boost multitasking productivity for a 2-PC, dual-display desktop. With a single keyboard and mouse, you can maintain a tidy workspace while simplifying control of two HDMI computers and two HDMI displays.

With the CS742H, you can benefit from:

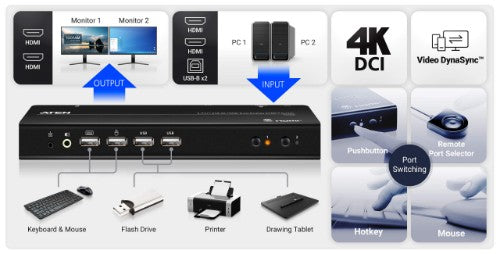

- Intuitive and flexible switching via pushbutton, hotkey, mouse, or the remote port selector
- A 2-port USB hub for peripheral sharing with a simple plug-and-play setup
- A pristine visual experience up to 4K60
- Multi-system compatibility across Windows, Mac, and Linux

Whether you're a professional seeking a productivity booster for your daily office routines, a content creator, a hybrid worker, or someone looking for a better entertainment setup, the CS742H is definitely your perfect desktop companion.

Superior Visual Clarity
The KVM switch is designed to deliver exceptional video performance, supporting up to 4K60 visual clarity.

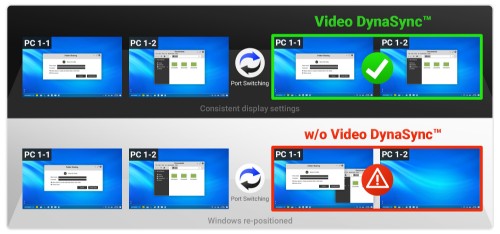

Video DynaSync™
Built with ATEN’s exclusive Video DynaSync™, the CS742H optimizes display resolution by preserving consistent window sizes and icon positions during every port switch, ensuring a smooth, flicker-free multitasking experience.

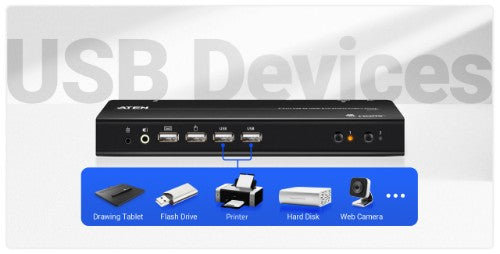

USB 2.0 Peripheral Hub
Media and data sharing between computers is fast and effortless via plug-n-play connections (e.g. hard drive, flash drive, printer, etc) to the USB ports on the KVM switch, without the need for an extra docking station.

Flexible Port Switching
Port switching is quick and flexible via pushbuttons, hotkeys, mouse or the remote port selector – whichever best fits your workflow.

All Cables Included. No Extras Needed.
Everything you need is included – 4 HDMI cables, 2 USB 2.0 A to B cables, 1 power adapter, and 1 remote port selector (wired switch button) – for instant setup.

Applications
The CS742H promotes a streamlined multitasking workflow and delivers a tidy setup with a single keyboard and mouse on a 2-PC, dual-display desktop, making it perfect for any personal or professional routine.

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	HDMI, USB A, 3.5mm headphone
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	4
DC-in jack	Yes
USB hub	Yes
USB 2.0 Type-B ports quantity	2
USB 2.0 Type-A hub ports quantity	2
Console HDMI ports quantity	2
Performance
Firmware upgradeable	Yes
HD type	Dual QHD
Hot-Plug support	Yes
Plug and Play	Yes
Maximum resolution	5120 x 1440 pixels
Scan interval	1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s
Design
Product colour	Black
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Housing material	Metal, Plastic
Country of origin	Thailand
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	3.63 W
Input voltage	5 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Video
HD type	Dual QHD
Maximum resolution	5120 x 1440 pixels
Technical details
USB hub	Yes
Features
Country of origin	Thailand
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	81.7 mm
Depth	202.3 mm
Height	25 mm
Weight	1.21 kg
Package volume	5550.101932032 cm³
Package width	95 mm
Package depth	265 mm
Package height	220 mm
Package weight	1.33 kg
Packaging data
Package volume	5550.101932032 cm³
Package width	95 mm
Package depth	265 mm
Package height	220 mm
Package weight	1.33 kg
Packaging content
Rubber feet	Yes
Cables included	HDMI, USB Type-A to USB Type-B
Manual	Yes
AC adapter included	Yes
Remote control included	Yes
Other features
Push button	Yes
Hot keys	Yes
Logistics data
Country of origin	Thailand
Master (outer) case width	232 mm
Master (outer) case length	500 mm
Master (outer) case height	283 mm
Master (outer) case gross weight	7.53 kg
Master (outer) case volume	32819.225200128 cm³
Master (outer) case net weight	6.05 kg
Harmonized System (HS) code	84718000
