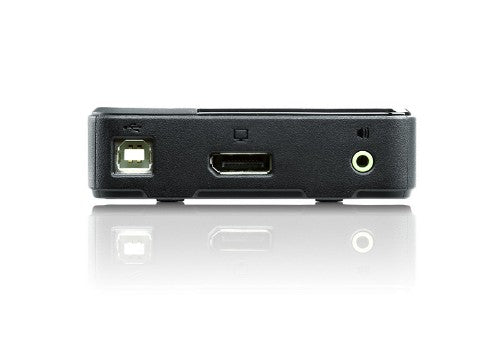

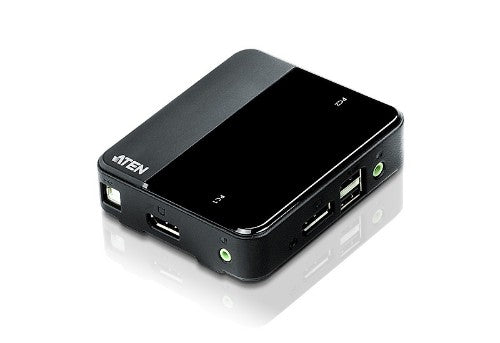

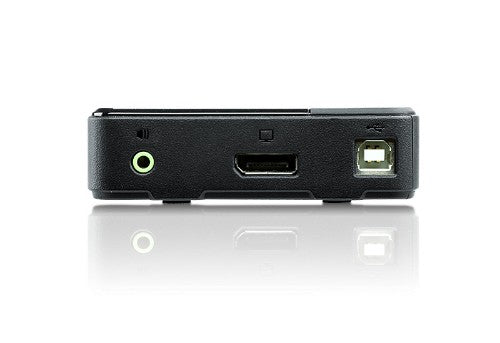

ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)

ATEN

ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)

Read reviews
SKU: CS782DP-AT
Your price $176.72
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)

Key Features

  • Superior video quality – 4K UHD (3840 × 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
  • Computer selection via remote port selector, hotkeys, and USB mouse; bus-powered design
  • Supports MST (Multi-Stream Transport)2, enabling multiple monitors to be used via a single DisplayPort connector
  • Multiplatform support – Windows, Mac, Sun, and Linux

Description

With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements.
1x CS782DP 2-Port USB DisplayPort KVM Switch
2x LIN5-20K1-K12G DisplayPort Cables
2x LIN6-04U1-V1BG USB Cables
2x LIN5-0205-21CG Audio Cables
1x Remote Port Selector
1x User Instructions

Specifications

Ports & interfaces
Console ports 3.5mm headphone, DisplayPort, USB A
USB connector type USB Type-A, USB Type-B
Number of microphone inputs 1
DisplayPorts quantity 2
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
Audio connections Yes
Headphone outputs 1
USB 2.0 Type-B ports quantity 2
Performance
HD type 4K Ultra HD
Video bandwidth 60 Hz
Maximum resolution 4096 x 2160 pixels
Scan interval 3,5,10,20 s
Design
Product colour Black
Rack mounting No
LED indicators Yes
Hot keys Yes
Housing material Plastic
Display
Built-in display No
Power
Power source DC
Power consumption (typical) 2.18 W
Input voltage 5 V
Video
HD type 4K Ultra HD
Video bandwidth 60 Hz
Maximum resolution 4096 x 2160 pixels
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Storage relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 93 mm
Depth 93.7 mm
Height 26.8 mm
Weight 543 g
Package width 59 mm
Package depth 239 mm
Package height 175 mm
Package weight 687 g
Packaging data
Package width 59 mm
Package depth 239 mm
Package height 175 mm
Package weight 687 g
Packaging content
Quick installation guide Yes
Manual Yes
Other features
Hot keys Yes
Logistics data
Master (outer) case width 328 mm
Master (outer) case length 497 mm
Master (outer) case height 196 mm
Master (outer) case gross weight 7.71 kg
Products per master (outer) case 10 pc(s)
Master (outer) case net weight 5.43 kg
Harmonized System (HS) code 85176200
Brand
ATEN
SKU
CS782DP-AT
