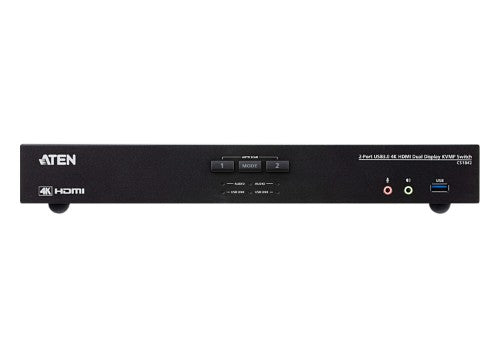

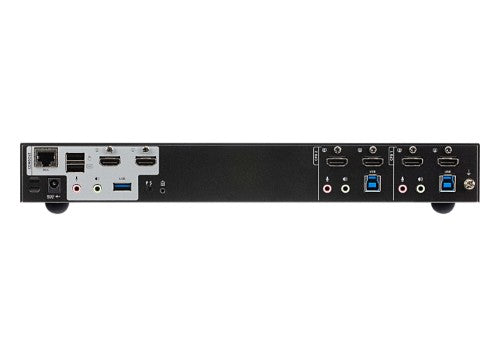

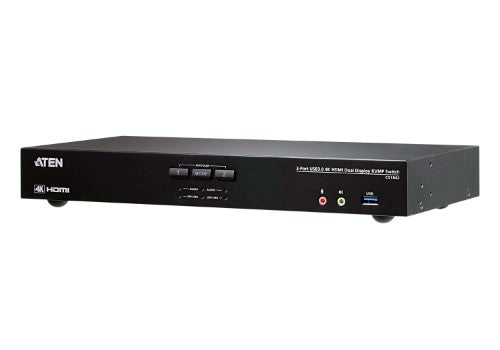

ATEN 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
SAVE 19%

ATEN

ATEN 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch

Read reviews
SKU: CS1842-AT-U
Your price $643.54
List price $796.95 Save $153.41
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch

Key Features

  • Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Quad-Display – connect two CS1842 units for a quad-display setup controlled by one operator
  • Supports Video DynaSync™
  • Computer selection via pushbuttons, hotkeys, mouse, remote port selector, and RS-232 commands

Description


1x CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Speaker Cables
2x LIN5-0205-21DG Microphone Cables
1x 0AD8-8012-33MG Power Adapter
1x 2XRT-0016G Remote Port Selector
1x User Instructions

Specifications

Video
HD type 4K Ultra HD
Video bandwidth 60 Hz
Maximum resolution 4096 x 2160 pixels
Ports & interfaces
Console USB ports quantity 2
Console ports 3.5mm headphone, HDMI, USB A
USB connector type USB Type-A, USB Type-B
Number of microphone inputs 4
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type HDMI
Audio connections Yes
Headphone outputs 4
HDMI ports quantity 4
DC-in jack Yes
USB hub Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 2
USB 2.0 Type-A hub ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 2
Performance
HD type 4K Ultra HD
Video bandwidth 60 Hz
Maximum resolution 4096 x 2160 pixels
Scan interval 1,5,99 s
Design
Product colour Black
Push button Yes
LED indicators Yes
Hot keys Yes
Housing material Metal
Display
Built-in display No
Power
Power source DC
Power consumption (typical) 3.17 W
System requirements
Windows operating systems supported Yes
Technical details
USB hub Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Storage relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 335 mm
Depth 160.5 mm
Height 44 mm
Weight 2.75 kg
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 3.52 kg
Packaging data
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 3.52 kg
Packaging content
Quick installation guide Yes
Manual Yes
Logistics data
Master (outer) case width 375 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 11.5 kg
Products per master (outer) case 3 pc(s)
Master (outer) case net weight 8.25 kg
Harmonized System (HS) code 85176200
Other features
Push button Yes
Hot keys Yes
Brand
ATEN
SKU
CS1842-AT-U
