ATEN 2-Port True 4K HDMI Splitter

2-Port True 4K HDMI Splitter

Key Features

• EDID Sync™ – avoids boot-up display issues & optimizes resolutions

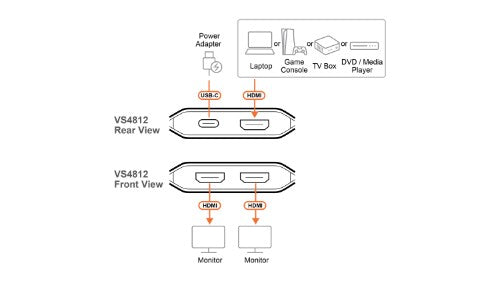

• One HDMI source shares two True 4K displays
• LPCM 7.1, Dolby® & DTS-HD Master Audio™
• HDMI out 2 on/off via pushbutton

Description

The VS4812 is a 2-Port True 4K HDMI Splitter designed for home cinema setups, dual-monitor professionals, and localized professional AV applications. It distributes the video stream from a single HDMI source to two displays simultaneously without loss of quality. EDID Sync™ and HDCP 2.2 compliance ensure smooth, hassle-free multi-display operation. With support for HDR10+, 3D formats, and Deep Color, the VS4812 delivers richer contrast and a wider color spectrum for a truly immersive viewing experience.

EDID Sync™ Smart Display Optimization
Automatically optimizes resolutions and prevents display issues for flawless display presentation

True 4K Dual-Display Sharing
Shares one HDMI source across two True 4K displays for double the visual impact with uncompromised quality

HDMI 3D/Deep Color, HDR10+, HDCP 2.2 Compatible
Guarantees stable performance, broad compatibility, and superior image quality

Master-Class Audio Immersion
Full support for LPCM 7.1, Dolby® & DTS-HD Master Audio™ delivers theatrical-quality surround sound

Pushbutton Output Control
Instantly enables or disables HDMI out 2 with a press of the pushbutton for intuitive, hands-on display management

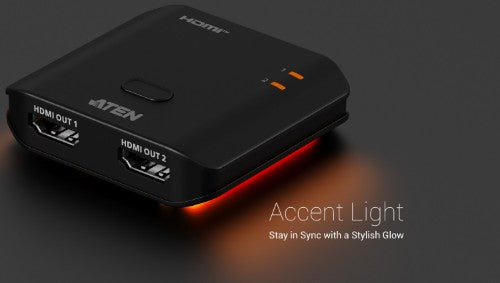

Aesthetic Compact Form
Slim profile and stylish accent lighting allow integration into any space, perfectly complementing your setting

Specifications

Ports & interfaces
USB connector type	USB Type-C
Keyboard port type	No
Mouse port type	No
Video port type	HDMI
HDMI ports quantity	3
HDCP	Yes
Performance
HDCP	Yes
Data transfer rate (max)	18 Gbit/s
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	3840 x 2160 pixels
Maximum operating distance	3 m
HDCP version	2.2
Design
Product colour	Black
Rack mounting	No
LED indicators	Yes
Country of origin	China
Display
Built-in display	No
Power
Input current	1 A
Power source	USB
Input voltage	5 V
Video
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	3840 x 2160 pixels
Features
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	56.5 mm
Depth	61 mm
Height	15.2 mm
Weight	30 g
Packaging content
Cables included	USB Type-A to USB Type-C
Quick installation guide	Yes
Packaging content	1x 2-Port True 4K HDMI Splitter 1x USB power cable (Type-C to Type-A) (1 m)
Other features
Maximum operating distance	3 m
Case or master carton dimensions (W x D x H)	213 x 320 x 156 mm
Logistics data
Country of origin	China
Master (outer) case width	213 mm
Master (outer) case length	320 mm
Master (outer) case height	156 mm
Master (outer) case gross weight	2.37 kg
Products per master (outer) case	20 pc(s)
Master (outer) case volume	0.38 cm³
Case or master carton dimensions (W x D x H)	213 x 320 x 156 mm
Master (outer) case net weight	1.2 kg
Harmonized System (HS) code	85437090
