ATEN 2-Port 8K HDMI Switch

2-Port 8K HDMI Switch

Key Features

• RapidSync™ – high-speed AV switching
• 8K @ 60Hz / 4K @ 120Hz exquisite visual clarity
• LPCM 7.1, Dolby® Digital & DTS-HD Master Audio™
• Supports VRR & ALLM

Description

Upgrade your viewing experience with the VS5821, a 2-Port HDMI Switch engineered to deliver next-generation 8K Ultra HD performance for both personal entertainment and professional AV setups. Featuring RapidSync™, you can experience high-speed AV switching between two video sources on a single display in an instant. With just a simple press on the pushbutton, immerse yourself in a visual extravaganza of ultra-sharp detail, vibrant color, and cinematic sound – no fuss, no extra cost, just pure satisfaction.

RapidSync™ High-Speed AV Switching
Ensures instant synchronization and ultra-fast transitions, eliminating signal delay

Ultra-High Resolution Visuals
Delivers 8K @ 60Hz and 4K @ 120Hz for exquisite clarity and unparalleled realism

Variable Refresh Rate (VRR)
Synchronizes frame rate to eliminate screen tearing and stutter for ultra-smooth gameplay

Auto Low Latency Mode (ALLM)
Automatically switches to game mode, dramatically reducing input lag for responsive control

HDMI 3D/Deep Color, HDR10+, HDCP 2.3 Compatible
Guarantees stable performance, broad compatibility, and superior image quality

Master-Class Audio Immersion
Full support for LPCM 7.1, Dolby® Digital & DTS-HD Master Audio™ delivers theatrical-quality surround sound

Instant Source Switching

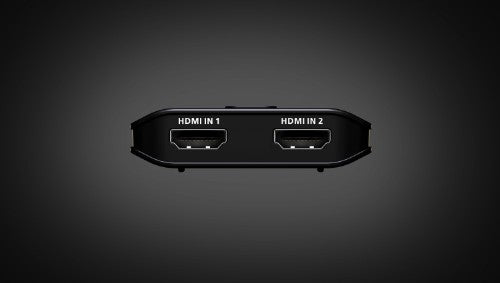

Easily switches between two HDMI sources via pushbutton for quick, hands-on control

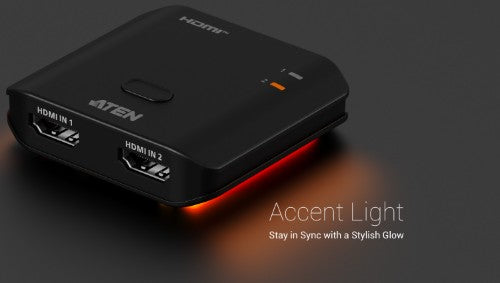

Aesthetic Compact Form
Slim profile and stylish accent lighting allow integration into any space, perfectly complementing your setting

Specifications

Ports & interfaces
USB connector type	USB Type-C
Keyboard port type	No
Mouse port type	No
Video port type	HDMI
HDMI ports quantity	3
HDCP	Yes
Performance
HDCP	Yes
Data transfer rate (max)	48 Gbit/s
HD type	8K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	7680 x 4320 pixels
Maximum operating distance	1.5 m
HDCP version	2.3
Design
Product colour	Black
Rack mounting	No
LED indicators	Yes
Housing material	Polycarbonate (PC)
Country of origin	China
Display
Built-in display	No
Power
Input current	1 A
Power source	USB
Input voltage	5 V
Video
HD type	8K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	7680 x 4320 pixels
Features
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	56.5 mm
Depth	61 mm
Height	15.2 mm
Weight	30 g
Packaging content
Cables included	USB Type-A to USB Type-C
Quick installation guide	Yes
Other features
Maximum operating distance	1.5 m
Logistics data
Country of origin	China
Products per master (outer) case	20 pc(s)
Harmonized System (HS) code	85437090
